Step Action
1 Loosen the cover from the base by unscrewing the screw on top of the cover.

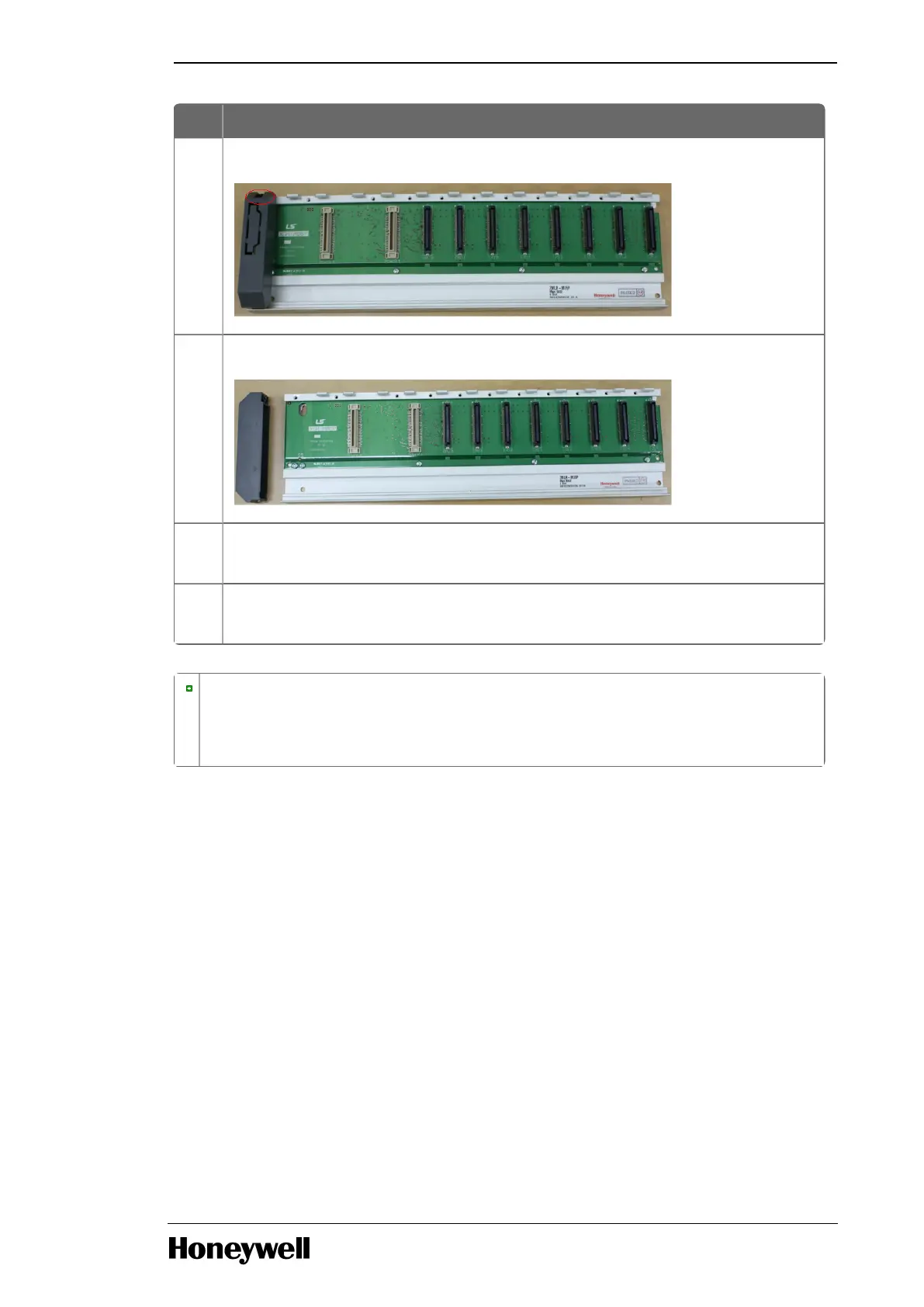

2 Remove the cover from the base as illustrated in the following image.
3 Insert the projection on the lower part of the module into the module-fixing hole of
the PLC base, as shown in the figure.
4 Slide the upper part of module to fix into the base. Use the screws in the upper
part of the module to hold the module firmly to the base.
TIP
To check if the module is properly installed in the base, slowly pull the upper part of
the module.
- 30 -
