Base Model Characteristics
MS2421/MS2431 Components

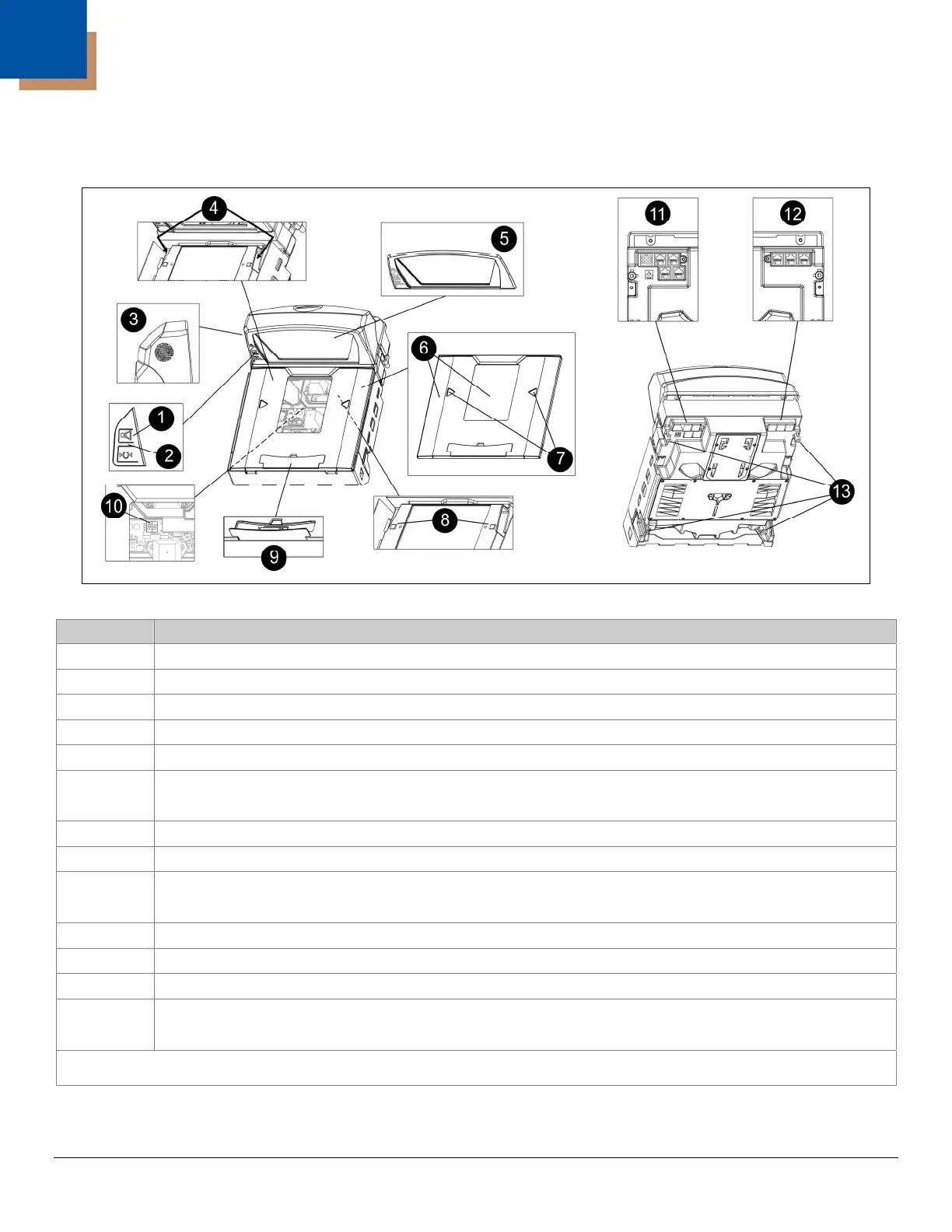

Figure 5. MS2421/MS2431 Components (MS2421 Shown.)
Item No. Description of Item
1 Volume/Tone Multi-Function Button (see page 42)
2 Blue LED Indicators (see page 35)
3 Speaker
4 Finger Recesses for Lifting
5 High Impact Window Frame / Vertical Window (Laser Aperture)
6
Replaceable Stainless Steel Platter with Diamonex or Sapphire Horizontal Window
(Laser Aperture)
7 Flow Direction Indicators
8 Platter Support Bumpers (see page 45)
9
Optional Product Weight Flip Up Bar / Platter Lift Handle
(Option provided with scale ready MS2421-105x or MS2431-105x models only.)
10 Diagnostic Indicator Display (see page 38 for Error Codes)
11 DC Power, Scale, and EAS Connectors (see page 9)
12 System Interface Connection Area (see page 9)
13
Optional Leveling Feet (Option provided with scale ready MS2421-105x/MS2431-105x models
only.)
Note: Scanner label information can be found on page 10.
