MS2422 Components

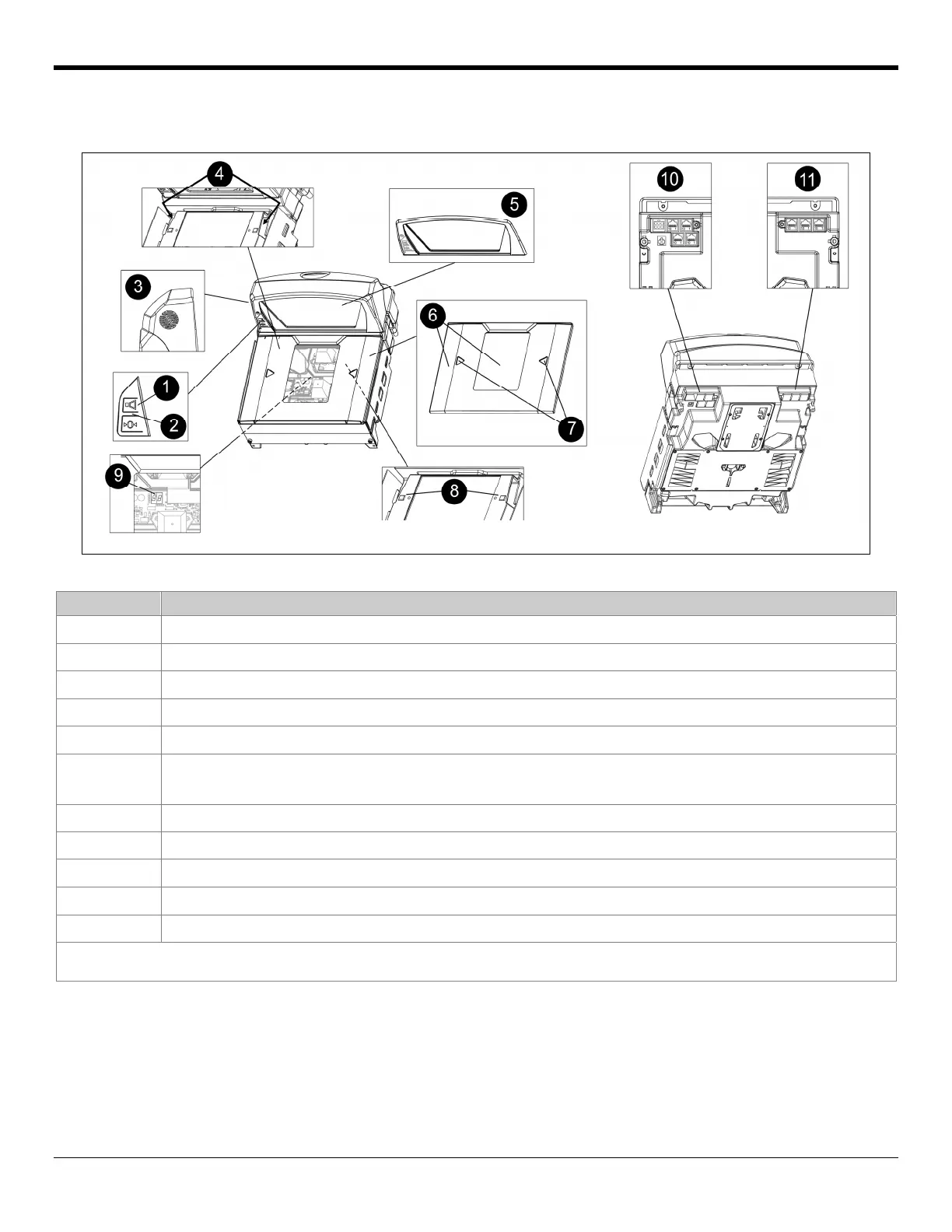

Figure 10. MS2422 Components
Item No. Description of Item
1 Volume/Tone Multi-Function Button (see page 42)
2 Blue LED Indicators (see page 35)
3 Speaker (see page 35)
4 Finger Recesses for Lifting (Located Under Platter)
5 High Impact Window Frame / Vertical Window (Laser Aperture)
6
Replaceable Stainless Steel Platter with Diamonex or Sapphire Horizontal Window
(Laser Aperture)
7 Flow Direction Indicator
8 Platter Support Bumpers (see page 45)
9 Diagnostic Indicator Display (see page 38)
10 DC Power, Scale, and EAS Connectors (see page 12)
11 System Interface Connection Area (see page 12)
Note: Scanner label information can be found on page 13.
11
