NetAXS™ NX4S1 Installation
Panel Components and Descriptions
3.0 Panel Components and Descriptions
The NX4S1 access control unit consists of a NetAXS™ panel control board and battery. The
components are enclosed in a pre-wired cabinet. The 16.5 VAC power supply (Basler Electric Model
BE156250CAA0004, M&G Electronics Model MGT1650, or Honeywell Access Systems part number
X-4) provides power for the panel control board, which is a four-reader panel providing access control
for up to four doors. The following figure shows the NX4S1 panel components.

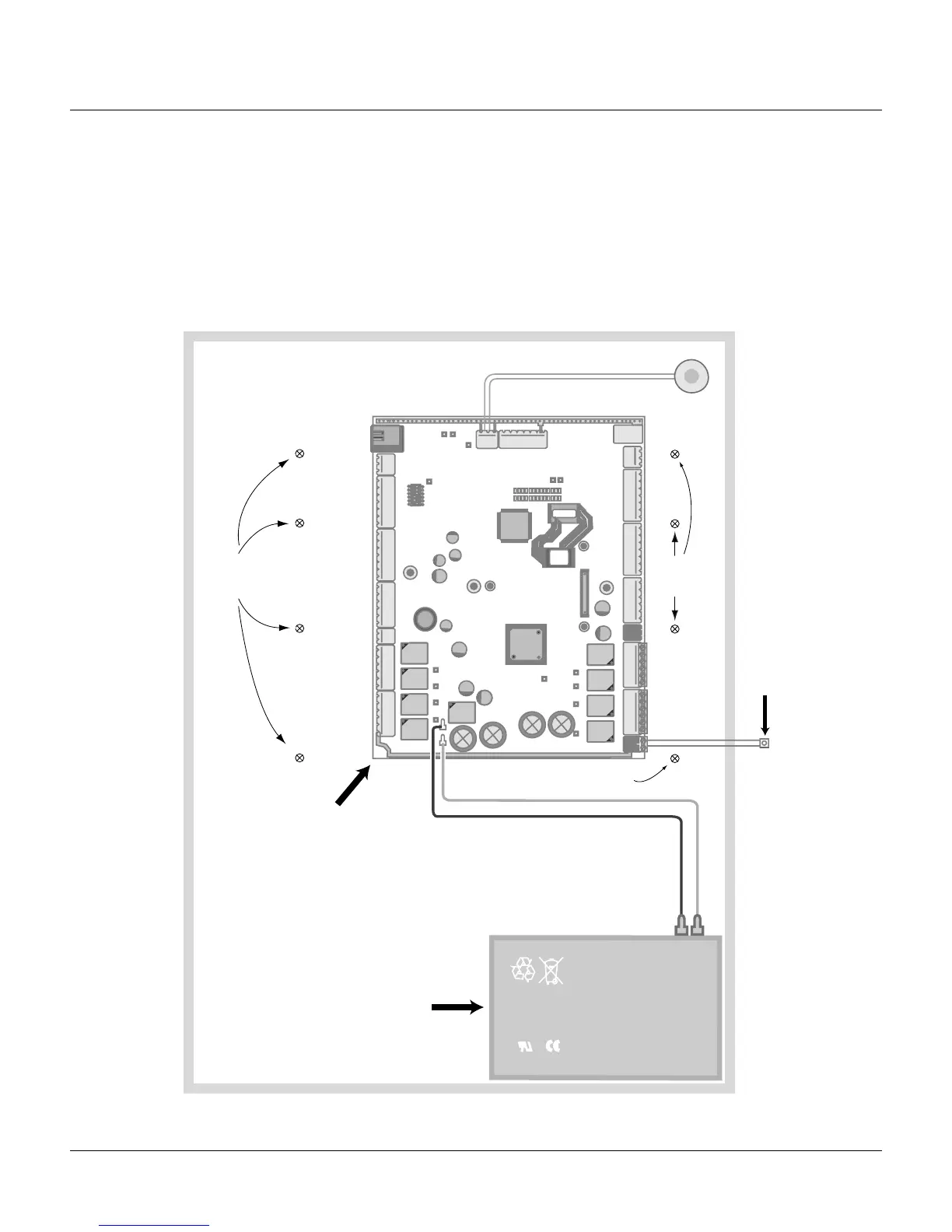

Figure 1: NX4S1 Panel Components
Pb
Pb
B

B

NetAXS Access
Control Panel
Battery
AC Power
LED
Enclosure Tamper
Switch
Enclosure
Grounding
Studs
Enclosure
Grounding
Studs
Enclosure Grounding Stud
