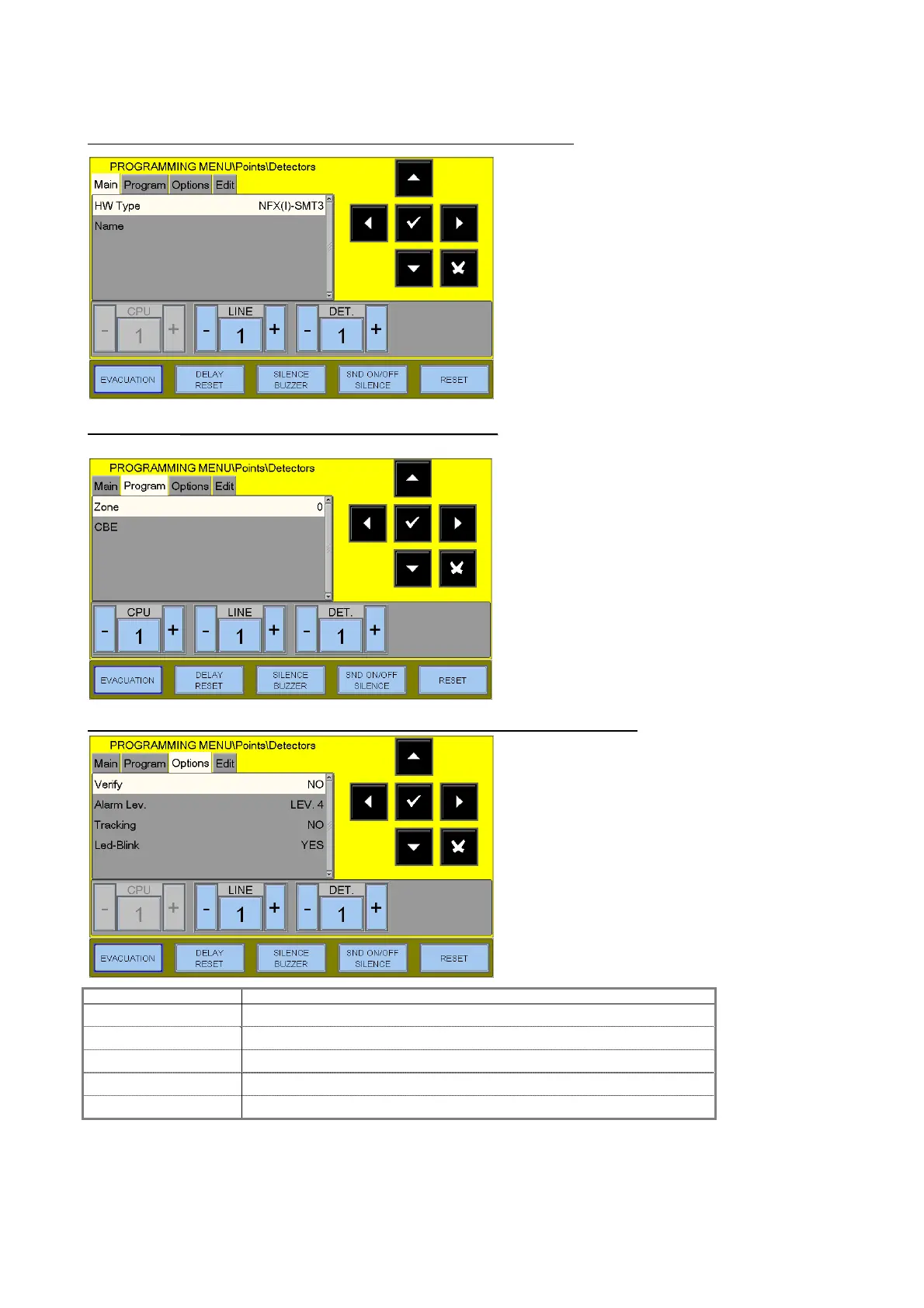

Example of programming of NFXI-SMT3
First TAB (Progr. of HW-Type ID and Text associated with the sensor)
Second TAB
(
(
P
P
r
r
o
o
g
g
r
r
.
.
o
o
f
f
C
C
B
B
E
E
E
E
q
q
u
u
a
a
t
t
i
i
o
o
n
n
,
,
Z
Z
o
o
n
n
e
e
a
a
s
s
s
s
o
o
c
c
i
i
a
a
t
t
i
i
o
o
n
n
)
)
Tird TAB (Progr. of Check, Al. Level, Daytime/night, Tracking and Led Blink )
* The delay counter is initialized when the smoke level exceeds 0.75% / ft
N.B. : The "heat only" mode is activated automatically if we have programmed the "Day / Night" function
to the zone associated with the NFXI-SMT3 sensor
Alarm level Percentage of Obscuration inside the Sensor Chamber
LIV. 1 1% ft. No Delay
LIV. 2 2% ft. . No Delay
LIV. 3
3%ft or Delay 45 ” *
LIV. 4
3% ft or delay from 45 ” to 90 ’’ * (Default)
LIV. 5
3% ft or delay more than 90 ” *
