ID2000 Series Operating Manual
Operator Actions at Panel
31 997-434-000-4, Issue 4
May 2010

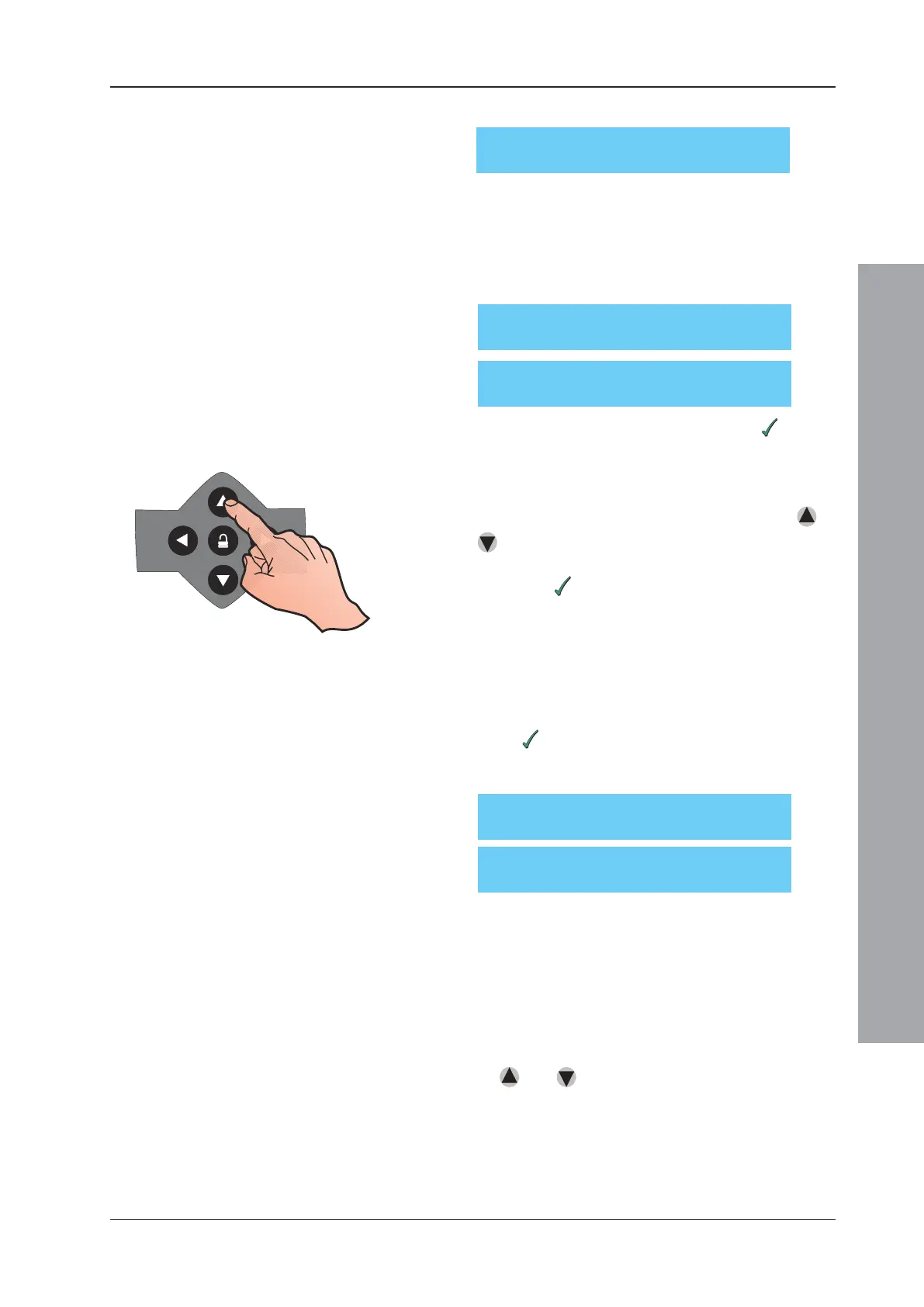

6 The display changes to that shown below:
If you already know the exact or approximate number
of the device you want [in the range 1 to the maximum
(depends upon the number of loops)], type in that
number. As soon as you press a digit, the display
changes to one of those shown below (as
appropriate):
When you have typed the number, press ; details
of the existing device nearest in number to that typed
are shown.
7 To scan further from an approximate number, or to
find a device with an unknown number, press
or
(both these keys auto-repeat if held down) until
details of the sensor or module you want are shown,
then press
.
Note: The device can only be one which is present on
the system (and existing devices need not be
numbered consecutively). If, while scanning up or
down, you press neither arrow key for a second or
two, the device location text (if programmed) also
appears.
8 Press
again to finally select the device. Then, in
place of the location text, line 2 of the display shows
one of the two messages shown below:
The value is continuously updated. The ‘LOGGED’
message indicated whether a memory log is currently
set up for that sensor (at start-up, all devices are NOT
logged).
Note: If operating this function from the VDU, the value
is displayed as you step up and down the devices.
The value is not continuously updated in this case,
however a fresh reading may be observed by using
and alternately to select the next device
and then return to the one in question.
Note: Configured devices which are not responding will
show a value of 0%.
LOG/DISPLAY Device: Please select:
Use
↑ ↓↑ ↓
↑ ↓↑ ↓
↑ ↓ to step up/down,
!!
!!
! to select
LOG/DISPLAY Device: Please select:-
Sensor no. (1-xxx):
LOG/DISPLAY Device: Please select:-
Module no. (1-xxx):
Sens. (n) Zone (n) (type)
NOT LOGGED ...present value xx%
Sens. (n) Zone (n) (type)
BEING LOGGED ...present value xx%
To Next Page
