LCD-160 Manual — P/N 51850:D2 10/07/2016 13
Additional Hardware Hardware
4.2 Additional Hardware
DP-DISP Dress Panel Display provides for the cabinet mounting of an LCD-160. The DP-DISP
hinge-mounts to the top bay of a CAB-4 series backbox and the LCD-160 mounts directly to
threaded studs on the dress panel. An LCD-160 mounted on an DP-DISP fits in front of most
CAB-4 series chassis as long as the top layer of the chassis is displayless or unoccupied.

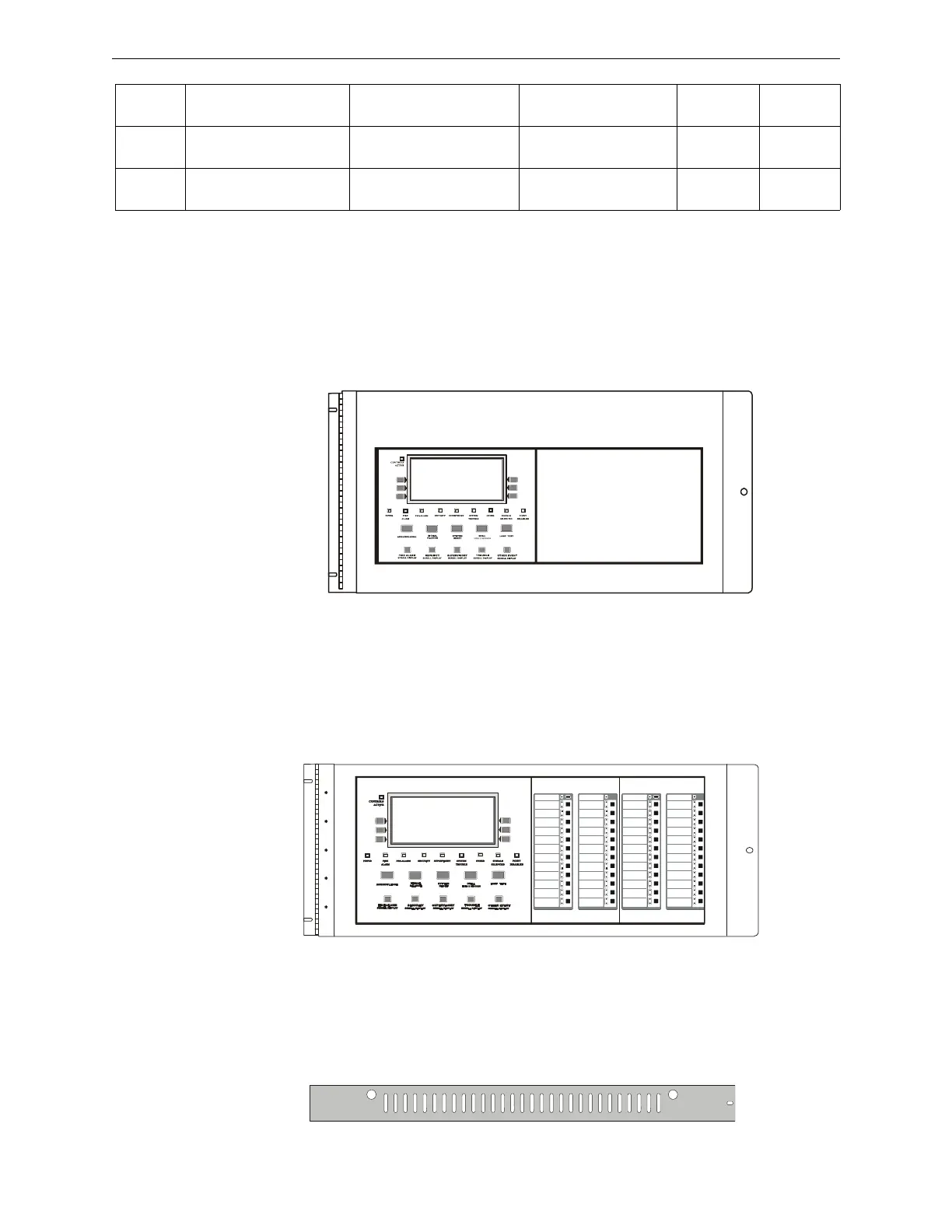

Figure 4.1 DP-DISP shown with an LCD-160
ADP-4B The Annunciator Dress Panel-4B provides for the cabinet mounting of an LCD-160. The
black ADP-4B hinge-mounts on a CAB-4 series backbox and the LCD-160 mounts directly to
threaded studs on the dress panel. An LCD-160 mounted on an ADP-4B fits in front of most
CAB-4 series chassis as long as the top layer of the chassis is displayless or unoccupied.
Figure 4.2 ADP-4B shown with LCD-160
VP-2B, VP-2 Use the VP-2B Vented Dress Panel when annunciators are to be installed in the top
row of a Notifier cabinet with the ADP-4B. It covers the gap between the ADP-4B and the top of
the cabinet. It secures to the cabinet with two screws.
C-Size
(3 rows)
37.250 in (94.62 cm) 24.125 in (61.28 cm) 5.218 in (13.25 cm) TR-C4
D-Size
(4 row)
45.875 in (116.52 cm) 24.125 in (61.28 cm) 5.218 in (13.25 cm) TR-D4
Part
Number
Height Width Depth Color
Optional
Trim Ring
Table 4.1 Backbox Sizing Guide
