LCD-160 Manual — P/N 51850:D2 10/07/2016 15
Section 5: Mounting
This section describes how to mount the LCD-160 into an enclosure.
5.1 Mount the Cabinet or Backbox
Select an appropriate knockout on the enclosure for your wiring to
run through and snap it out. Fasten the cabinet or backbox to the
wall. Ground the enclosure to a solid metallic ground, such as a
grounded cold water pipe. Pull all LCD-160 wiring into the
enclosure as illustrated in Figure 5.1. Connect LCD-160 wiring to
the removable terminal blocks as specified in “Connecting the RDP
Bus” on page 18.
5.2 Mount the LCD-160
In an CAB-4 Series backbox:
1. Place the annunciator/dress-plate assembly into the backbox and secure with four screws.
2. Plug the two annunciator
terminal blocks into the
annunciator to complete
communication and power
circuit connections as
described on “Connecting
the RDP Bus” on page 18
and “Power Supply
Connections” on page 20.
3. If using a semi-flush-mount
backbox, attach the door.
Align the door with the dress
plate, and slide the door
down onto the pins on the
dress plate. When positioned
correctly, the door will open
and close freely.
In an ABS-2D/4D or ABF-2B/4B backbox:
1. Plug the two annunciator terminal blocks into the annunciator to complete communication and
power circuit connections as described in “Connecting the RDP Bus” on page 18 and “Power
Supply Connections” on page 20.
2. Place the annunciator/dress-plate assembly into the backbox and secure with four screws.
3. If using a semi-flush-mount backbox, attach the door. Align the door with the dress plate, and
slide the door down onto the pins on the dress plate. When positioned correctly, the door will
open and close freely.
A
WARNING:
USE A GROUNDING STRAP BEFORE HANDLING ANY CIRCUITS SO THAT STATIC CHARGES ARE
REMOVED FROM THE BODY.

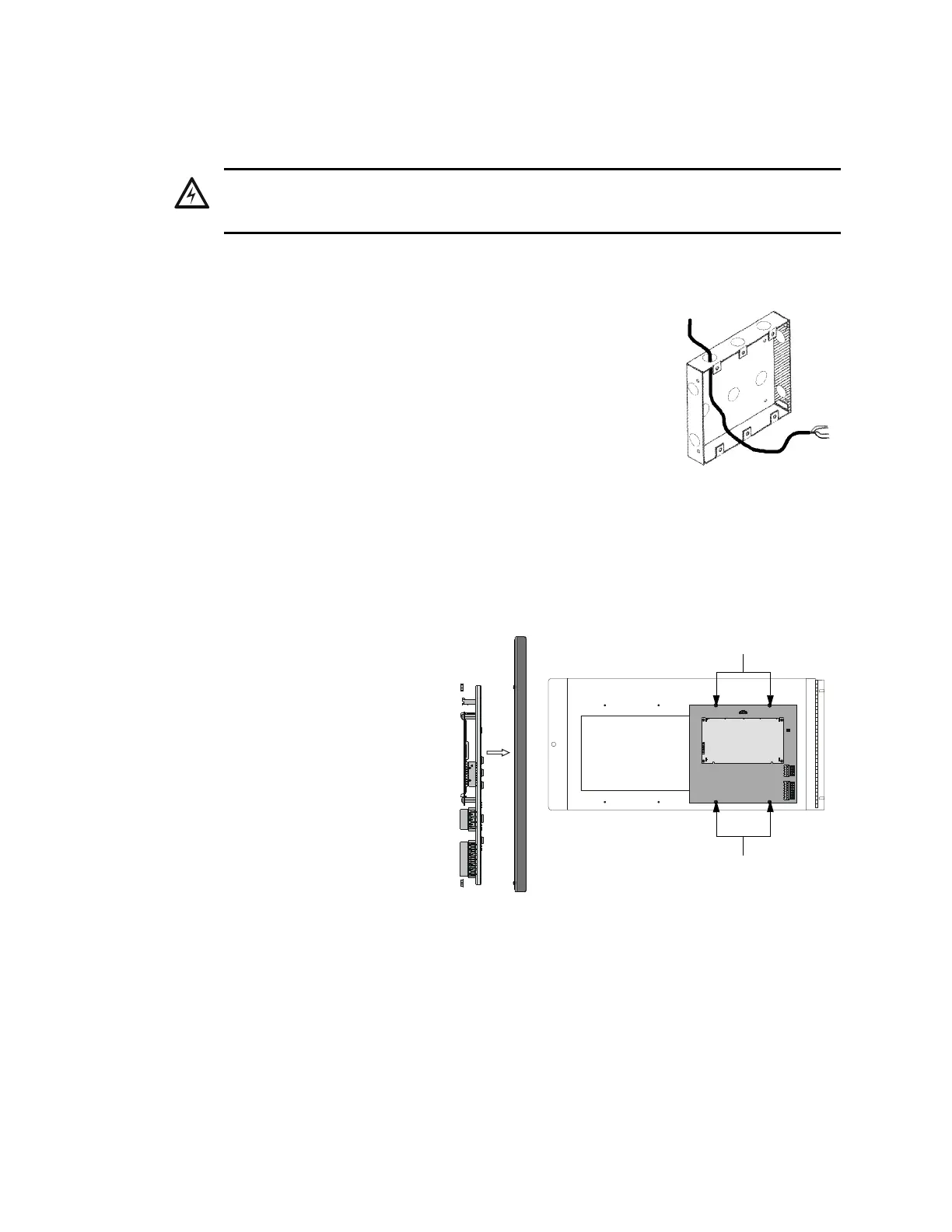

Figure 5.1 Pull Wiring
into Enclosure
AnWir_in.tif
Figure 5.2 Mounting the LCD-160 to the Dress Panel
Mounting Screws
Mounting Screws
