40 LCD-160 Manual — P/N 51850:D2 10/07/2016
Screen Displays Service Screens
9.3.2 Power-up Screen
The Power-up screen appears when the panel is powering up. During power-up, a series of self-
tests are performed internally: the tests and the results of the tests appear on the screen as they are
completed. Failure of a test may prevent the LCD-160 from performing its functions. Holding the
DRILL key during the power up will reset all settings (including address information) to the factory
defaults.

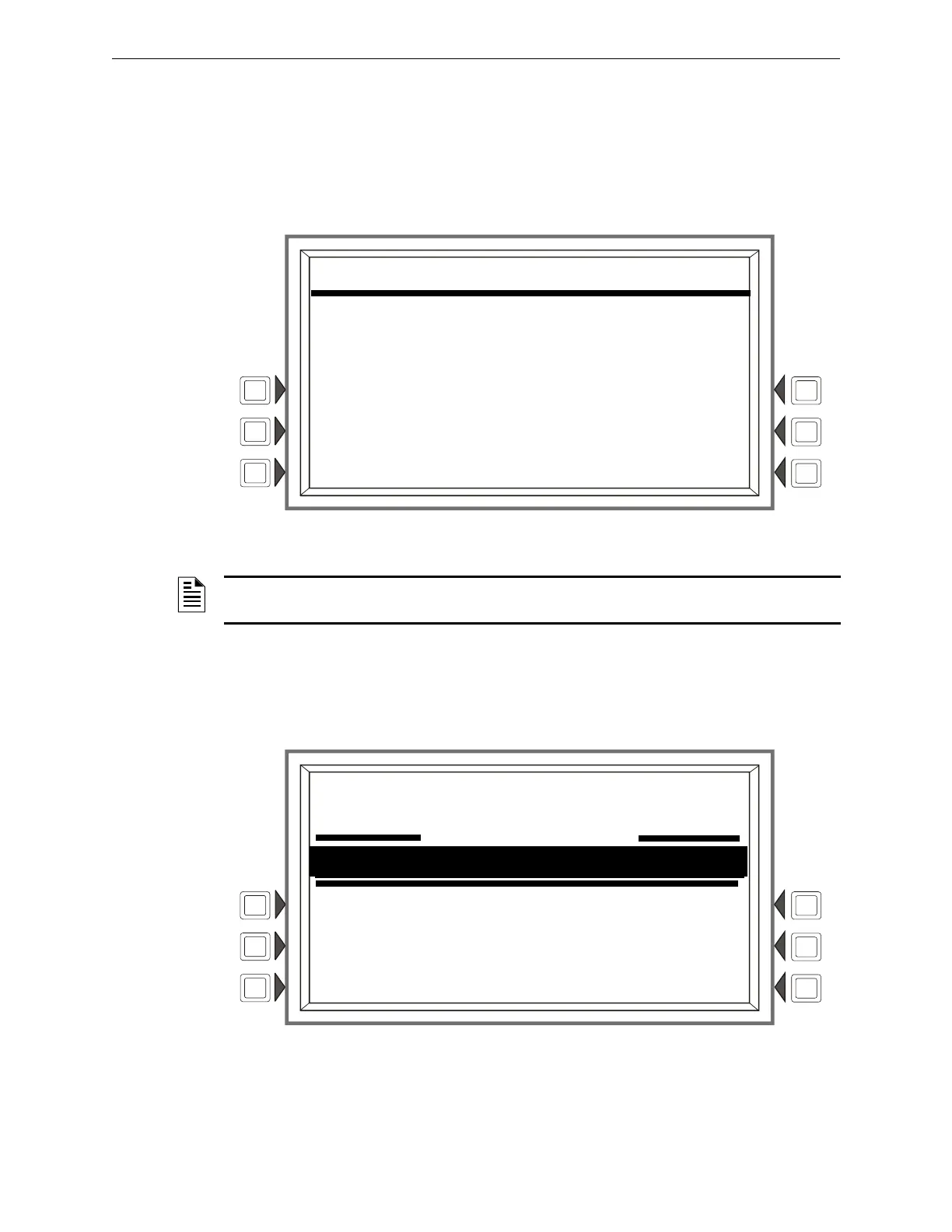

Figure 9.12 Self Test Screen
9.3.3 Download Screen
The “Download” screen appears immediately before a download. Downloading is initiated at the
panel.
Figure 9.13 Download Menu Screen
ACKNOWLEDGE: Press this soft key to acknowledge troubles and silence the piezo. You may use
the
TROUBLE scroll/display key to list individual troubles.
BOOT: 001.000.048 APP: 001.000.149
SELF TEST
RAM TEST: PASS
KEYPAD: PASS
BOOT CRC: PASS
APP CRC: PASS
STRINGS CRC: PASS
DATA CRC: PASS
NOTE: The Power-up screen will display if the LCD-160 loses communication with the host panel
during a download.
TROUBLE
LOADING..NO SERVICE
A01
LCD-160 BOOTLOADER
LCD-160 DOWNLOAD MENU
ACKNOWLEDGE
