LCD-160 Manual — P/N 51850:D2 10/07/2016 31
Programming Screens Screen Displays

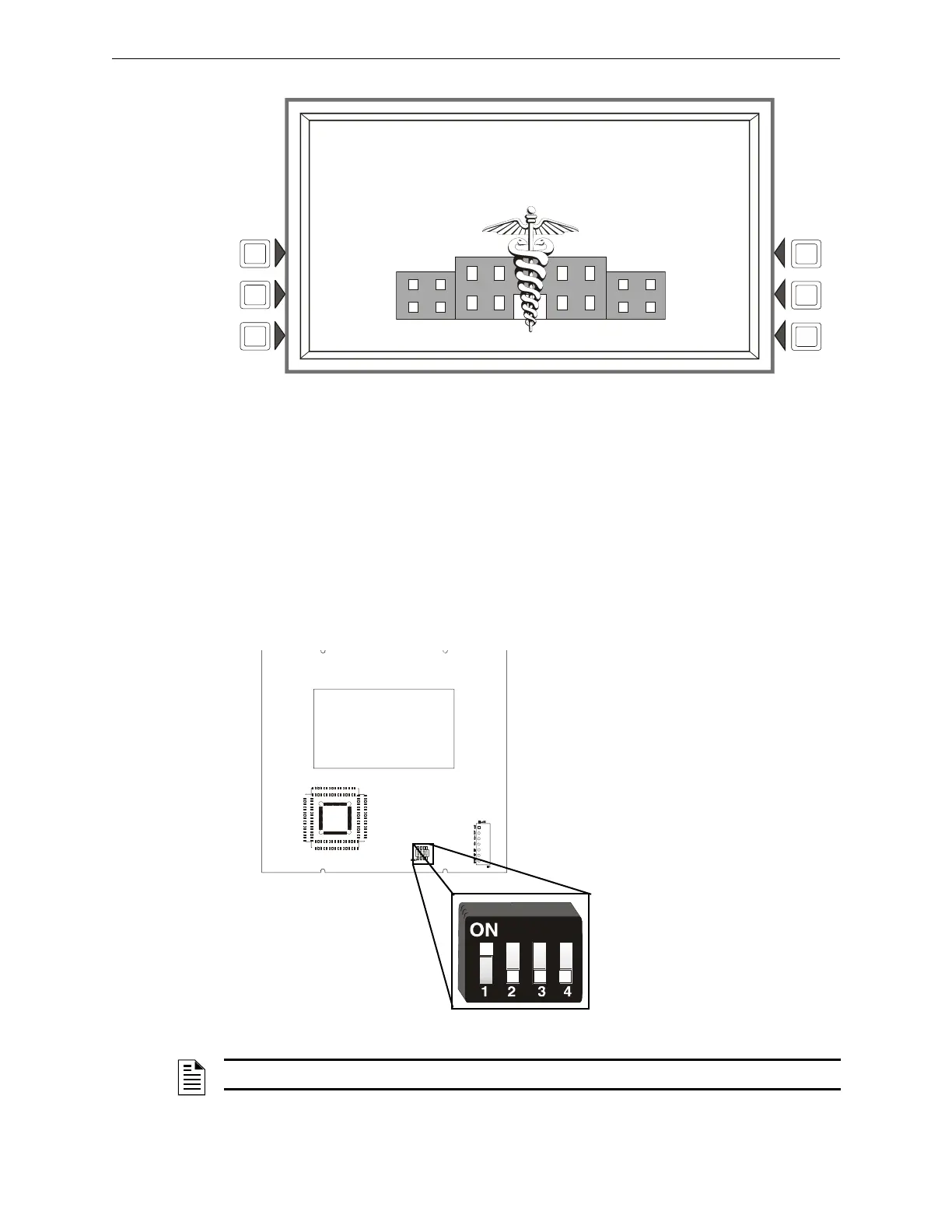

Figure 9.2 Graphic Screen (No Off-Normal Events)
Soft Keys
MAIN MENU - Press this key to display the “Main Menu.” The text of this soft key will appear over
any graphic that extends into the last line of the display.
9.1 Programming Screens
Once the system has been physically installed, programming may begin. The user may program an
LCD-160 at anytime, except while there is an unacknowledged alarm present.
9.1.1 Setting the Programming Switch
The LCD-160’s
programming switch
must be enabled to
program the LCD-160.
Set dip switch 1 on
SW17 to permit
programming on the
LCD-160. SW17 is
located on the bottom
edge of the LCD-160
board. To enable, use a
small screwdriver to
slide the switch up
towards the display. To
disable, slide the switch
down away from the
display.
LAKESIDE GENERAL HOSPITAL
SYSTEM NORMAL
11:58:45A TUE JAN 12, 2016
MAIN MENU
LCD160SW17.wmf
The Programming
Switch is enabled.
Switch 1 is ON. The
slider is towards the
display screen.
DISPLAY
Figure 9.3 SW17(Programming Switch Enabled)
NOTE: Switches 3 and 4 MUST remain in the disabled position.
