NFN Gateway Hardware Installation NFN Gateway Embedded Installation
21NFN Gateway Installation & Operation Manual - P/N: 52306:Rev: D 06/01/07
2.4 NFN Gateway Hardware Installation
Step 1. Install NFN Gateway PC board onto the mounting plate.
Step 2. Install power supply onto the mounting plate.
Step 3. Install PNET-1 onto the mounting plate.
Step 4. Install the mounting plate onto the CHS-4L chassis that is already installed in the
CAB3/CAB-4 cabinet.
Step 5. Ground the PNET-1.
Step 6. You are now ready to perform the “Network Communication Module Installation” on
page 22.

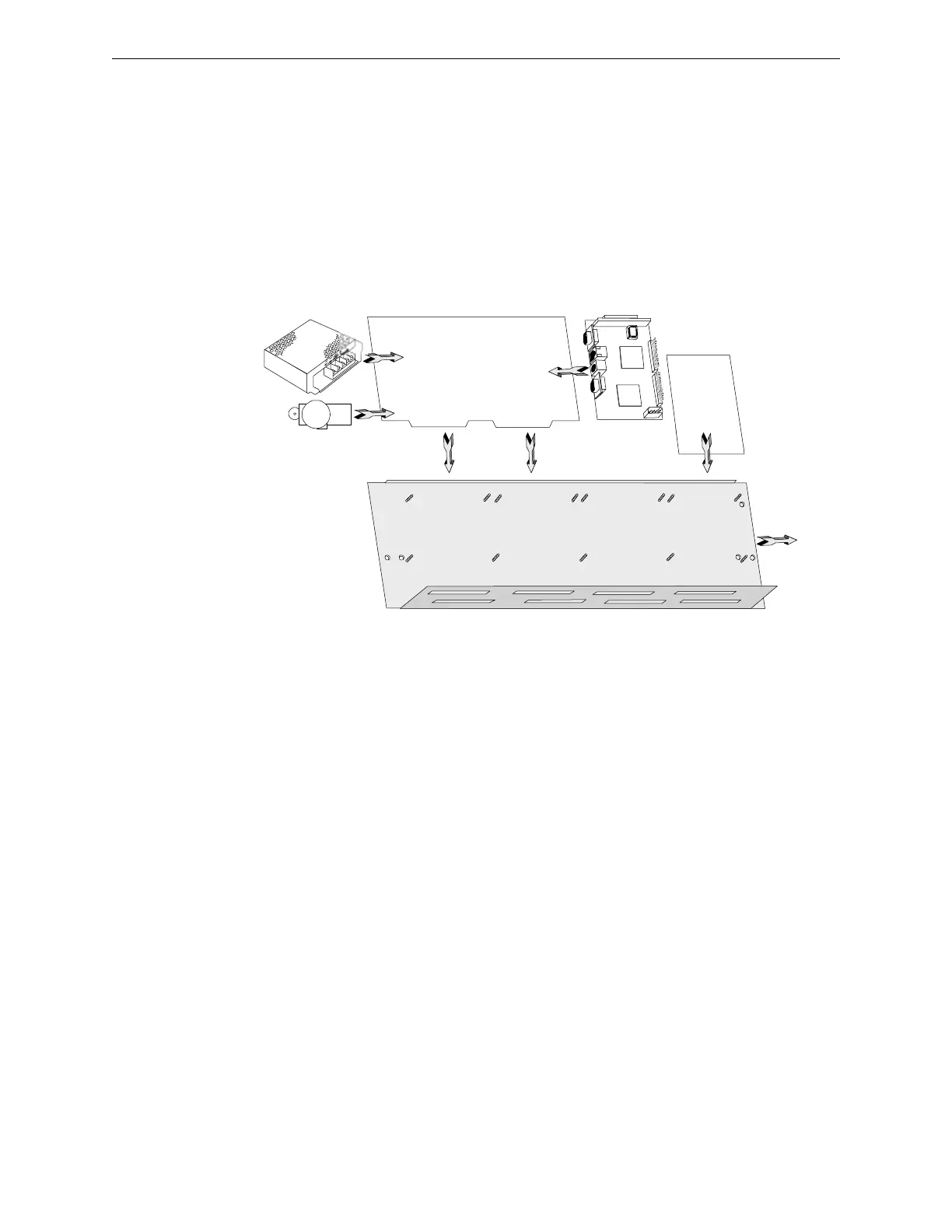

Figure 2.4 NFN Gateway Assembly Installation Diagram
1
2
3
4
5
6
