39NFN Gateway Installation & Operation Manual - P/N: 52306:Rev: D 06/01/07
Section 4 NFN Config Tool Reference Information
4.1 NFN Config Tool Description
The NFN Config Tool interface is used to display configuration information about NFN network
and the NFN Gateway.
The NFN Config Tool uses an Windows Explorer-style collapsible/expandable Nodes list. The
PROPERTY/VALUE columns display information about the selection made in the Nodes list
Property fields that are preceded with an asterisk mean the Value adjacent to it can be modified in
some way.
4.2 Property/Value Field Descriptions
The NFN Config Tool window displays configuration information about the gateway and the NFN
network the gateway is monitoring. When logged into the gateway using a password you can
change settings for any field that has asterik (*) preceding the field’s name.

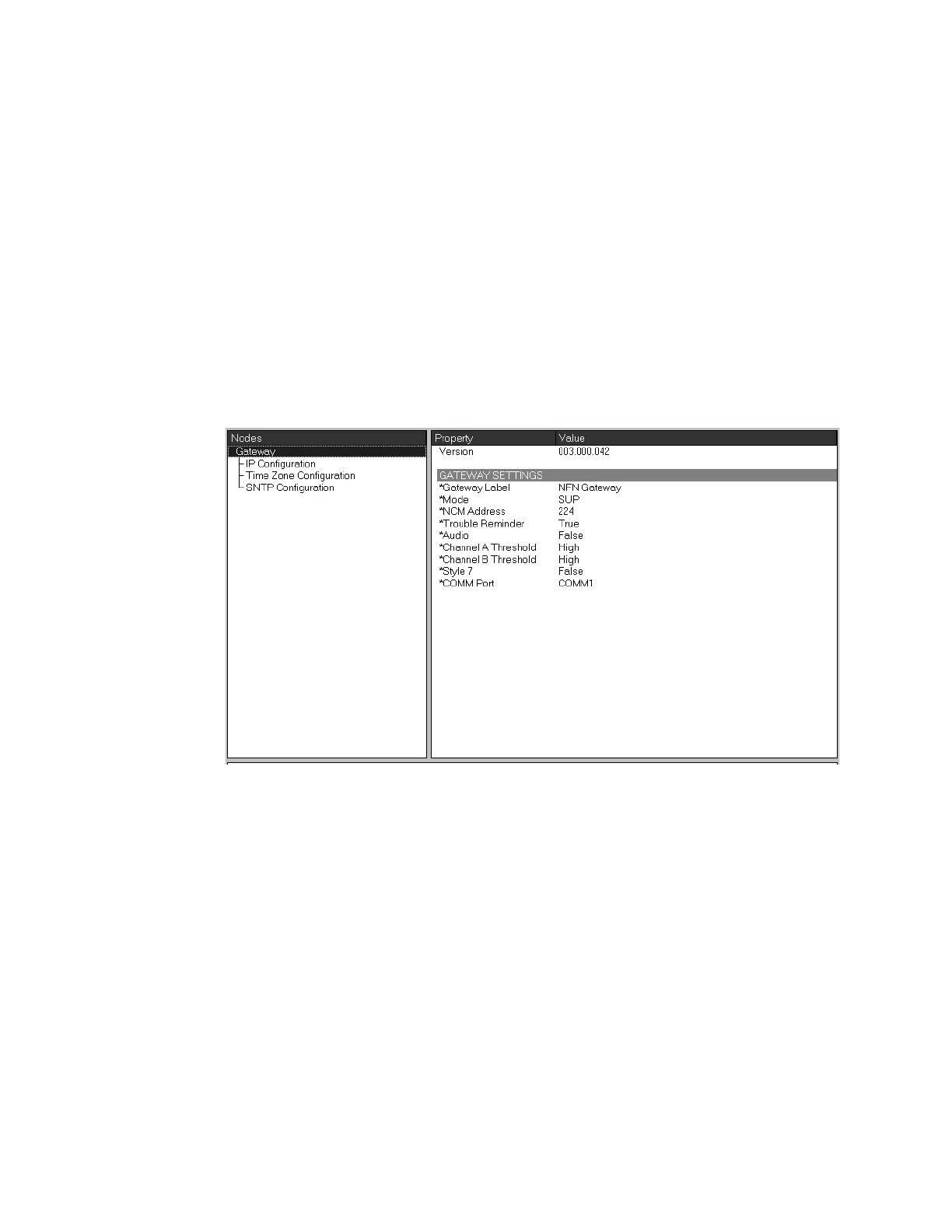

Figure 4.1 NFN Config Tool Field Descriptions
Version - Displays the gateway’s version.
