NFN Gateway Embedded Installation NFN Gateway Cable Connections
24 NFN Gateway Installation & Operation Manual - P/N: 52306:Rev: D 06/01/07
2.7 NFN Gateway Cable Connections
2.7.1 IP Cable Connections
This connection is the NFN Gateway to your IP network (Internet or Intranet). The supplied
PNET-1 surge suppressor must be used between the NFN Gateway PC board and your network.
Step 1. Plug one end the RJ45 cable into the NFN Gateway PC board and the other into the square
end of the PNET-1.
Step 2. Connect your IP network RJ45 cable into the round end of PNET-1.
Step 3. After the IP network configuration is made, perform “Gateway Network Cable
Connection” on page 25.

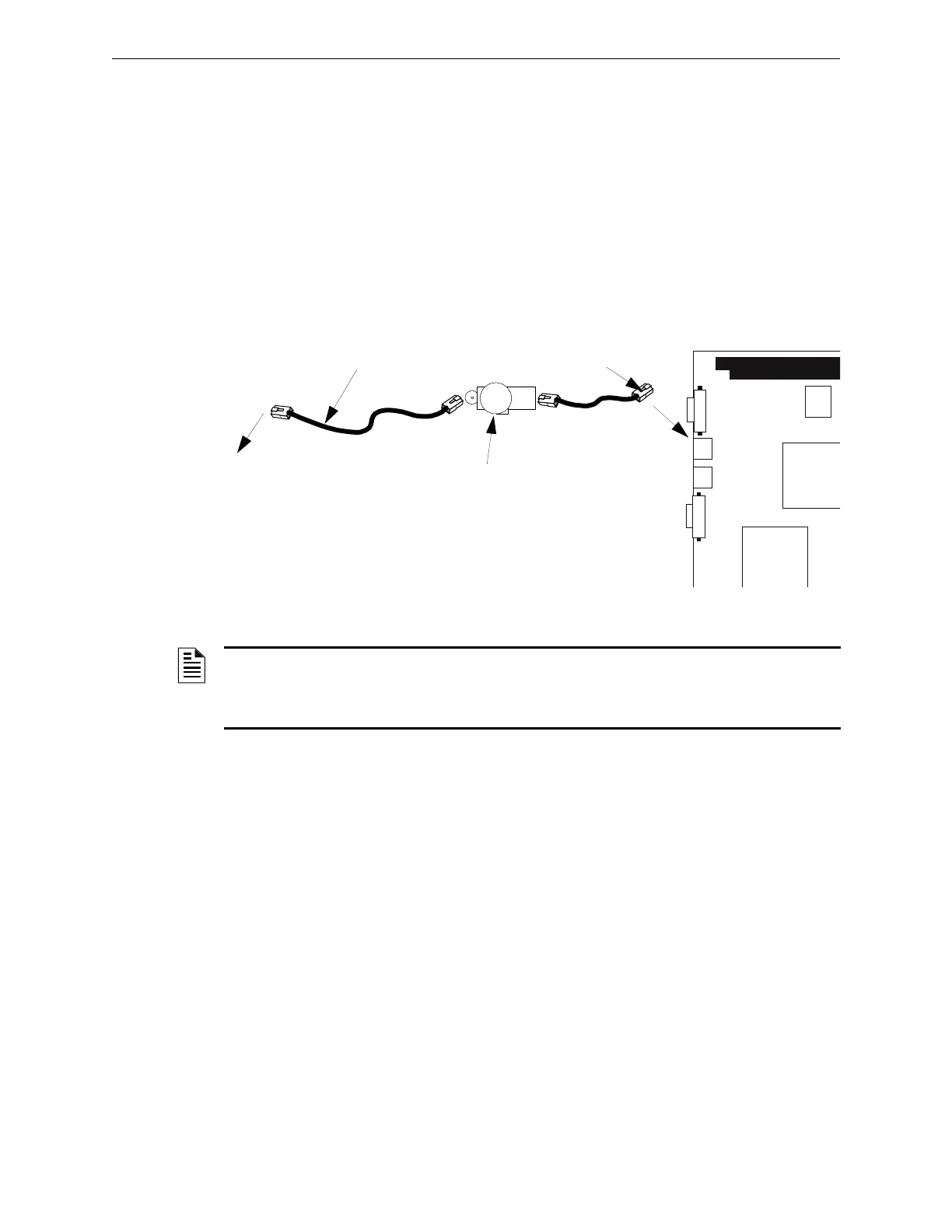

Figure 2.8 IP Cable Connection
PNET-1 surge suppressor
PC board to PNET-1
To Internet or Intranet
PC Board
Customer Supplied Cable
NOTE: If you are configuring the NFN Gateway using a PC that is not connected to your IP
network, then you can leave the connection between the PC board and the PNET-1 disconnected
until the gateway configuration is complete (refer to “Connect the Configuration PC to the NFN
Gateway” on page 30.)
To Next Page
