NFN Gateway Configuration Procedure NFN Gateway Configuration
35NFN Gateway Installation & Operation Manual - P/N: 52306:Rev: D 06/01/07
3.4.2 Gateway Settings
Mode Setting
The NFN Config Tool is used to set the NFN Gateway’s operation mode.
Step 1. Login to the gateway; select File >Login. The Gateway Login window displays.
Step 2. Type in the gateway password and then click the OK button. The default password is
00000000 (eight zeros).
Step 3. Select the highest level entry in the Nodes list column hierarchy. The gateway’s Property
and Value information displays.
Step 4. Click in the Value field adjacent to Mode Property to display the list of choices, and then
select the desired mode.

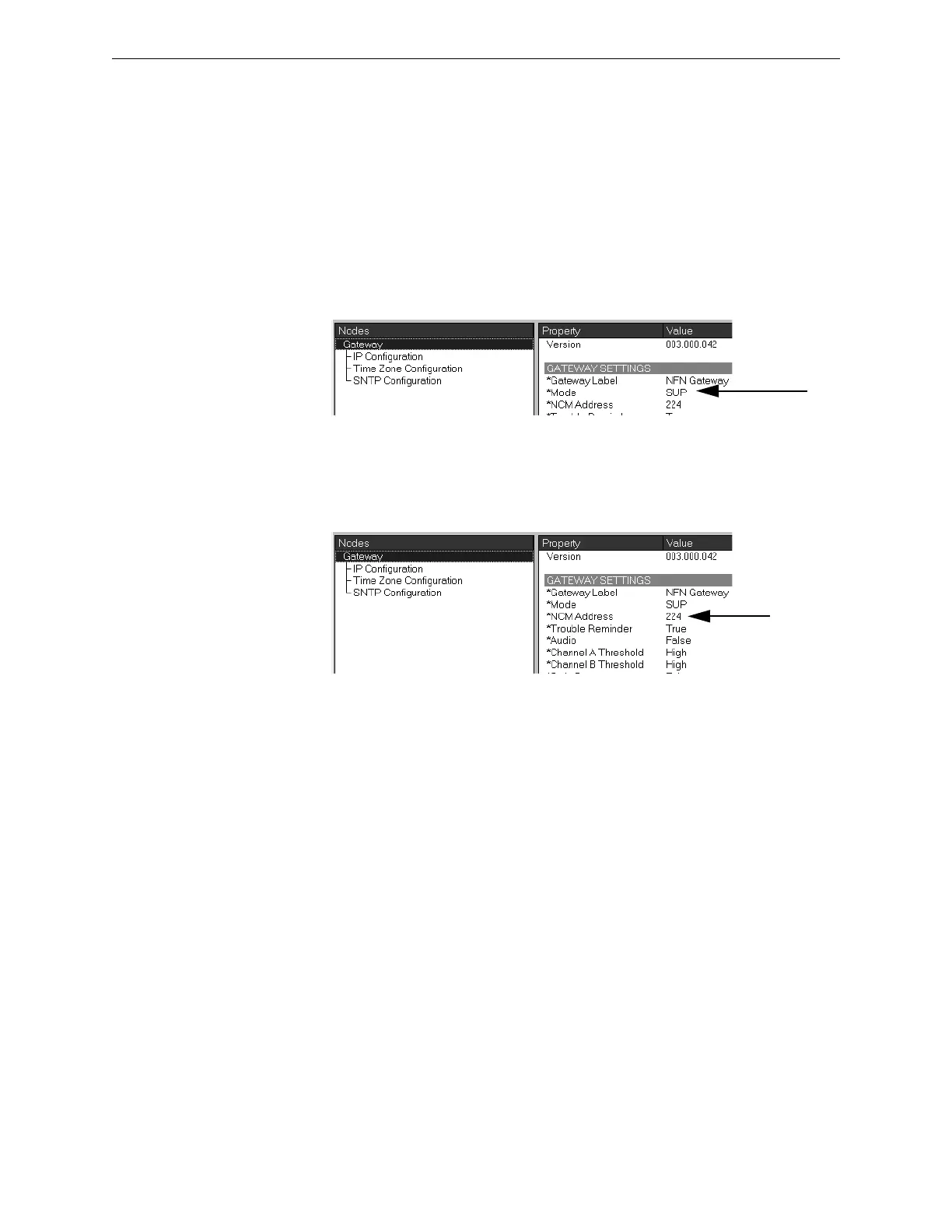

Figure 3.7 Gateway Mode Setting
Step 5. Now you need to perform "NCM Address Setting".
NCM Address Setting
Step 6. Click in the Value field adjacent to NCM Address Property and then type in the address.
Figure 3.8 Gateway NCM Address Setting
Step 7. Now you need to perform “Time Settings” on page 36.
