Honeywell Notifier RP-2001 - NFPA 72 Proprietary Signaling System Requirements

116 RP-2001 Series Manual — P/N 52985:D5 1/26/2017
NFPA Standard-Specific Requirements NFPA 72 Auxiliary Fire Alarm System
NFPA 72 Proprietary Protective Signaling Systems

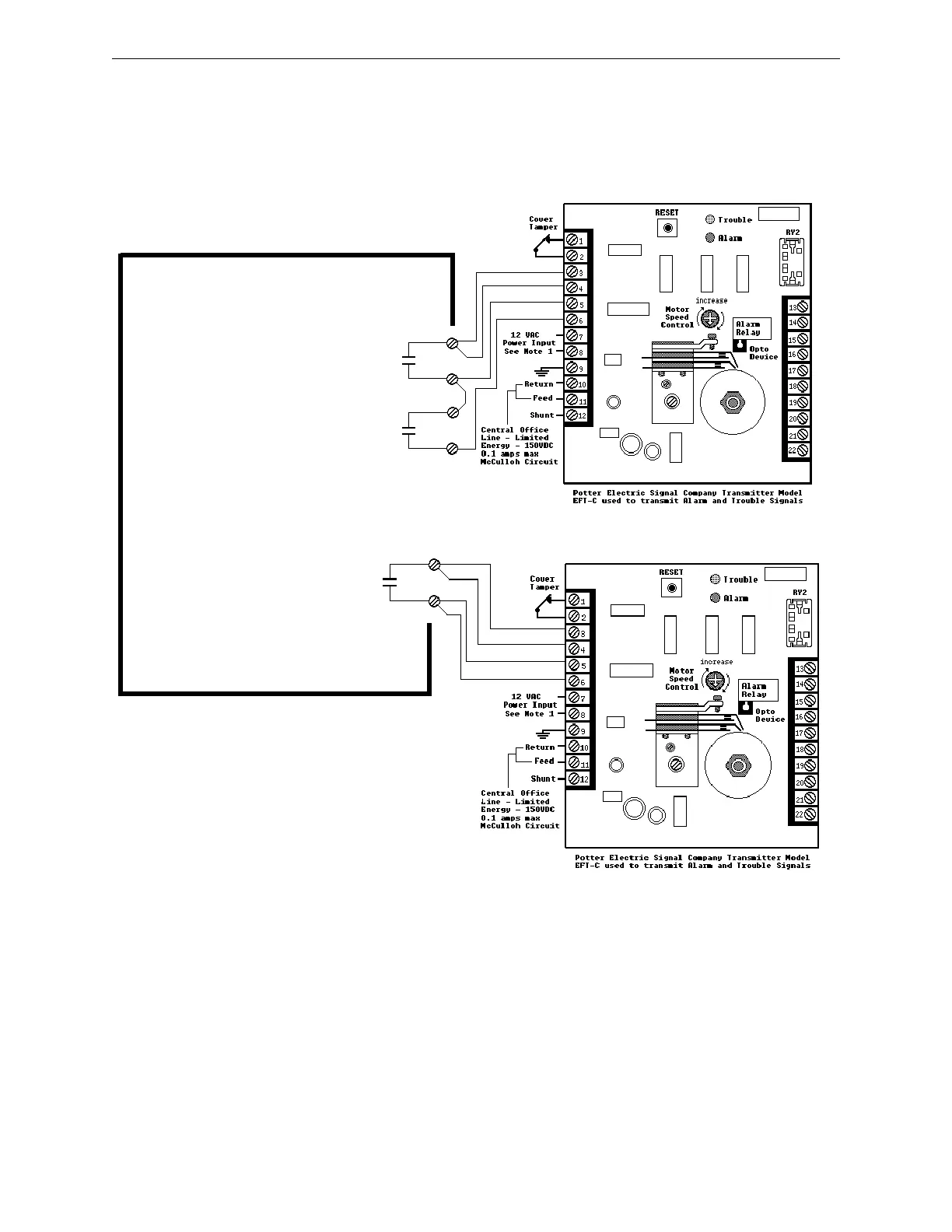

Figure C.4 Proprietary Protective Signaling System
Form-C relay contact programmed
to activate on Supervisory condition.
Form-C Trouble contact which
will automatically activate on any
Trouble condition.
Form-C Alarm contact programmed
to activate on General Alarm.
FACP Main Circuit Board
Fire Alarm Control Panel
Notes:
1. Connection between the FACP and the transmitter are
supervised by the transmitter.
2. This FACP/Transmitter arrangement can be employed
for NFPA 72 Proprietary Protective Signaling System.
3. Potter Electric Model EFT-C has not been tested for UL
864 9th Edition and is for use in retrofit applications only.
