46 RP-2001 Series Manual — P/N 52985:D5 1/26/2017
Installation ANN-BUS Devices

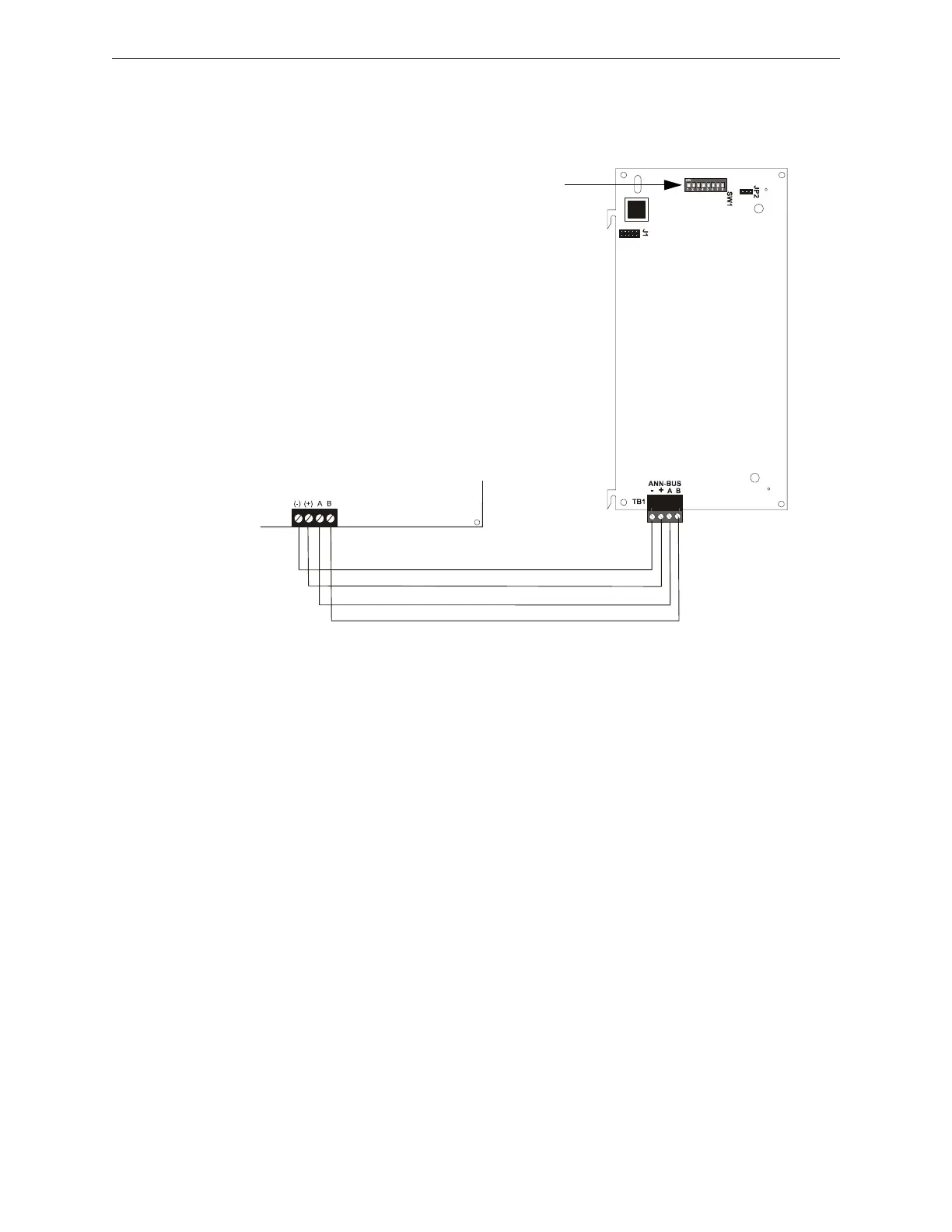

N-ANN-LED Board Layout and Connection to FACP
Figure 2.23 illustrates the N-ANN-LED board showing locations of screw terminals for connection
to the FACP and the DIP switches for selecting the ANN-BUS ID number.
2.7.7 N-ANN-RLY Relay Module
The N-ANN-RLY relay module provides 10 programmable Form-C relays when used with a
compatible FACP.
Specifications
• Operating Voltage: 24 VDC
• Max. Current:
 Alarm: 75 mA
 Standby: 15 mA
• Relay Contact Ratings:
 2.0 amps @ 30 VDC (resistive)
 0.5 amps @ 30 VAC (resistive)
• Operating Temperature: 32
o
F to 120
o
F (0
o
C to 49
o
C)
• For indoor use in a dry location only
Figure 2.23 N-ANN-LED Board Layout and Connection to FACP
FACP
N-ANN-LED
Primary ANN-BUS
+24 VDC
-24 VDC
ANN-BUS (ID#)
Address DIP switch
