Honeywell SPM Flex User Manual

55
SPM Flex Gas Detector

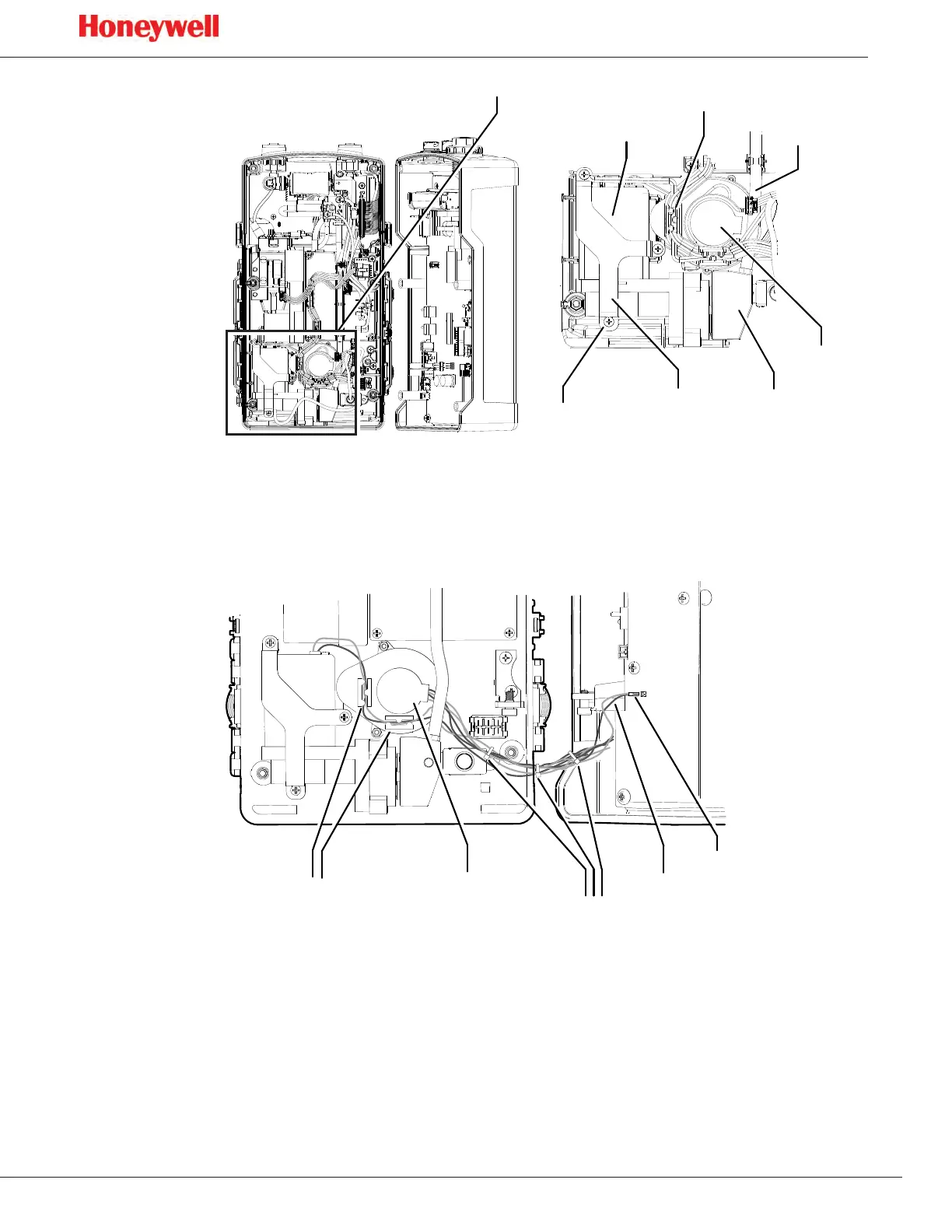

Figure 32.
Area of detail
pump
pump bracket
screws (3)
pump
manifold
pump
bracket
pump
intake/exhaust
tubing to
manifold
stepper
motor
wire
guides (2)
Location of the pump assembly
6. Cut and remove the three wire ties from the bundle containing the pump wires. Take
care not to damage any of the wires.
Figure 33.
wire ties (3)
red and grey wires
connector
wire guides (2)
stepper motor
Pump wiring.
7. Remove the wire bundles from the guides around the stepper motor.
8. Remove the pump from the case.
