Installation
5/00 UDC3300 Expanded Model: DC330E User Manual 15
Auxiliary Output
16
17
+
Auxiliary Load
0 1000
+
Connect shield to
ground at one end only
For Duplex Current Output use Control
Output for Output 1 (heat)
ATTENTION:
Both current outputs (control and
auxiliary) are isolated from each other,
case ground, and all inputs.

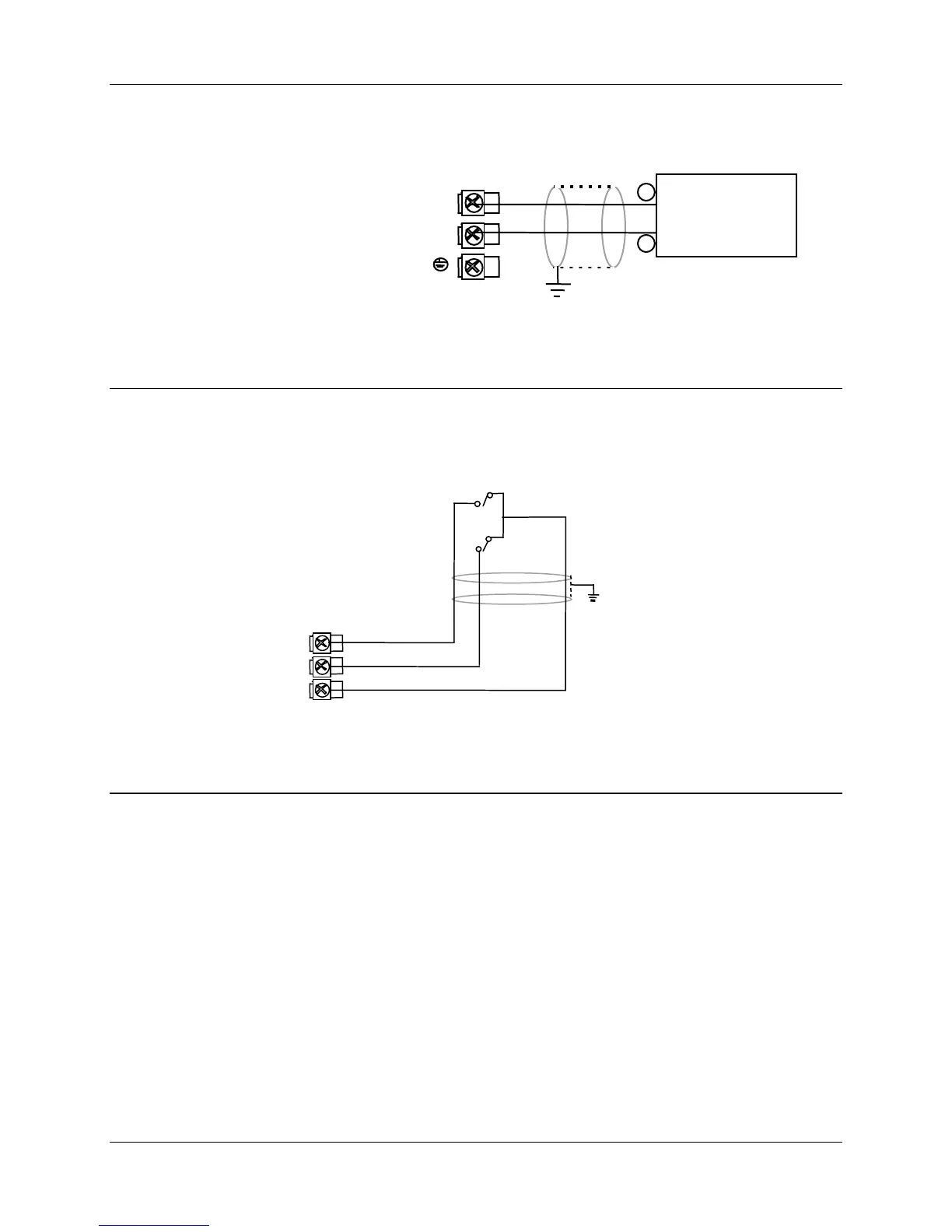

Figure 2-14 Auxiliary Output Connections
Models DC330X-XX-2XX, DC330X-XX-5XX
Digital Inputs
10
11
12
Digital Input
Switch #1
Digital Input
Switch #2
Connect shield
to ground at
one end only
Switch
Common
Figure 2-15 Digital Inputs ConnectionsModel DC330X-XX-XX3
