Installation Instruction VARIODYN
®
D1 System
FB 798663.GB0 / 05.19 57
Power amplifier 2XH-Series
The 2XH series power amplifiers provide two independent amplifier channels. For additional information refer to
product catalogue.

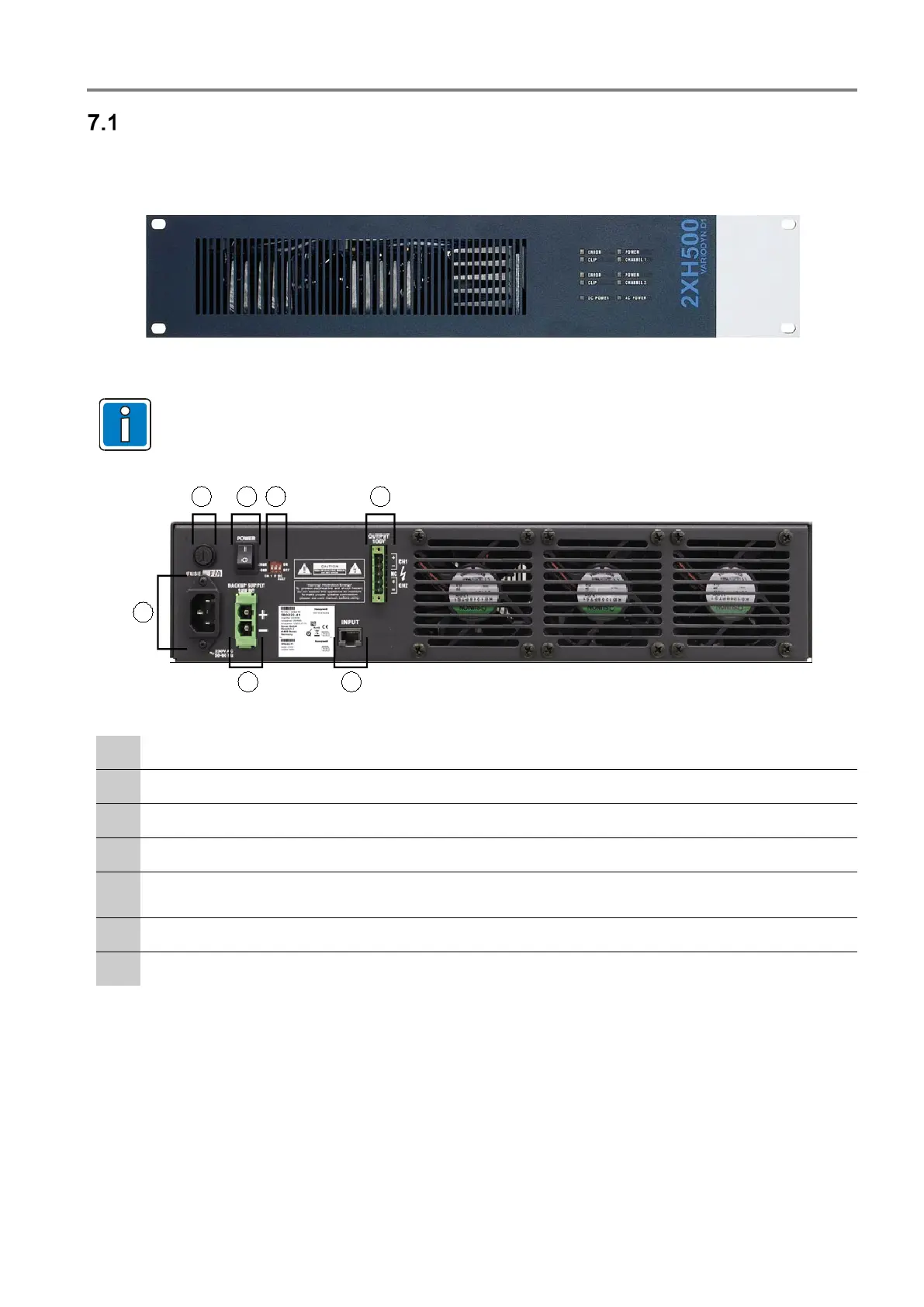

Fig. 48: Front view power amplifier (Example 2XH500)
Additional information on LED indicators refer to operating instruction (Part No. 798662.GB0).
1
2
3
4
5
6
7
Fig. 49: Rear view of power amplifiers (Example 2XH500)

230 V AC rated voltage via IEC power socket

Primary fuse T 8 A / 250 V

On / off switch

DIP Switch

Plug connection to DOM (use system cable)
The SPK outputs are designed with touch-protected terminals.

Plug connection – AF input signal from DOM

24 V DC power supply (if available)
