8 Power Supply
In general, all devices of a VARIODYN
®
D1 System are supplied with power via the 230 V rated voltage. This can
be connected directly (Fig. 43) or via an MSU (Fig. 44).
PA
230 V AC
L1
N
PE
OR

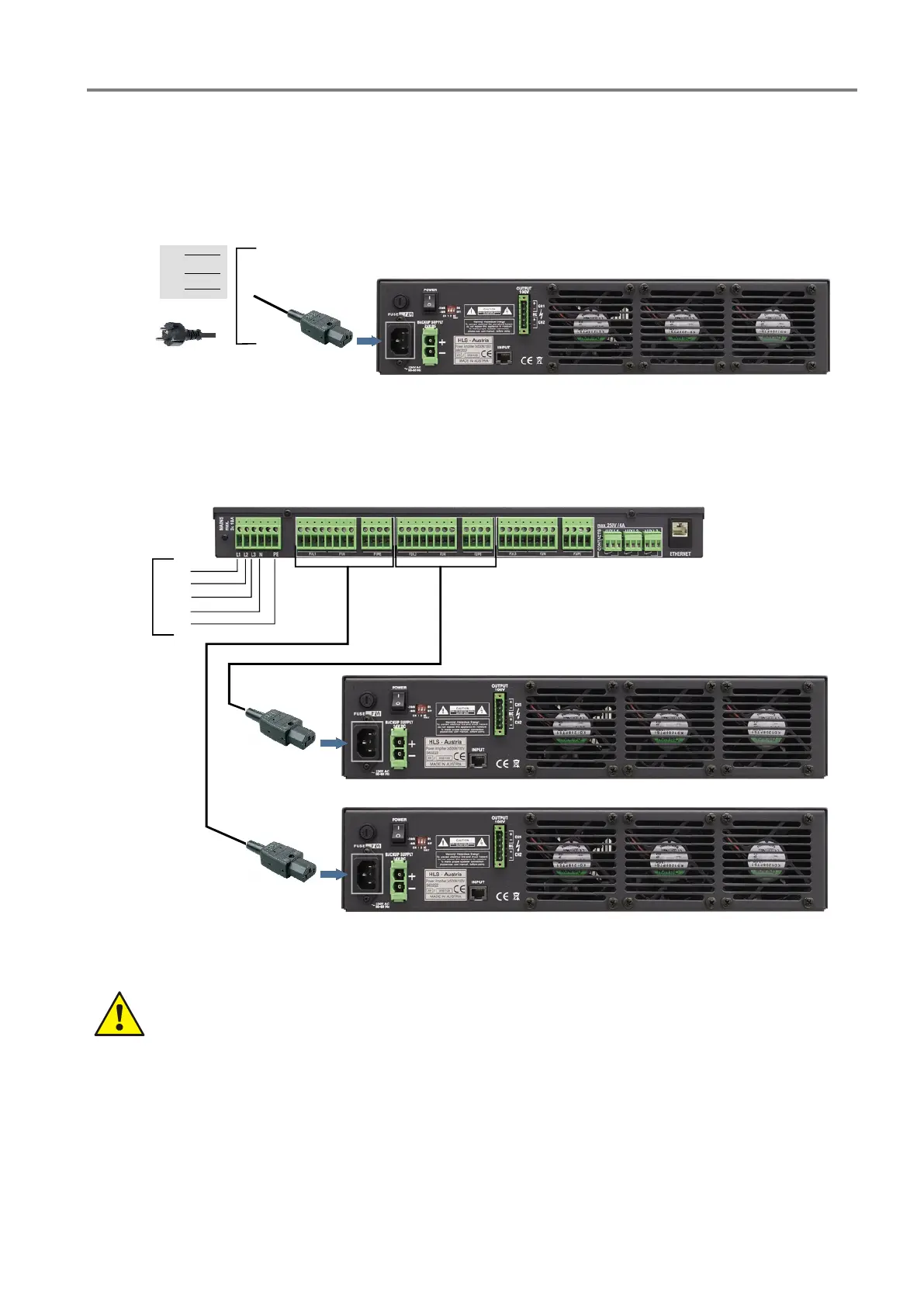

Fig. 68: 230 V AC direct connection (example)
230 V AC
L1
N
PE
L2
MSU
PA
PA
L3
Fig. 69: 230 V AC cabling via MSU (example)
Danger – Electric shock!
Assembly and installation work may only be performed when the system is de-energised (voltage free).
ESD / EMC preventive measures
Before handling electronic modules, always take suitable precautions to prevent static electricity.
