Installation Instruction VARIODYN
®
D1 System
FB 798663.GB0 / 05.19 69
Power Amplifier 4XV series
The power amplifiers provide four independent amplifier channels (double final amplifiers). The described
functions depend on the amplifiers required and/or used for the specific building. For more information, see the
product group catalogue.

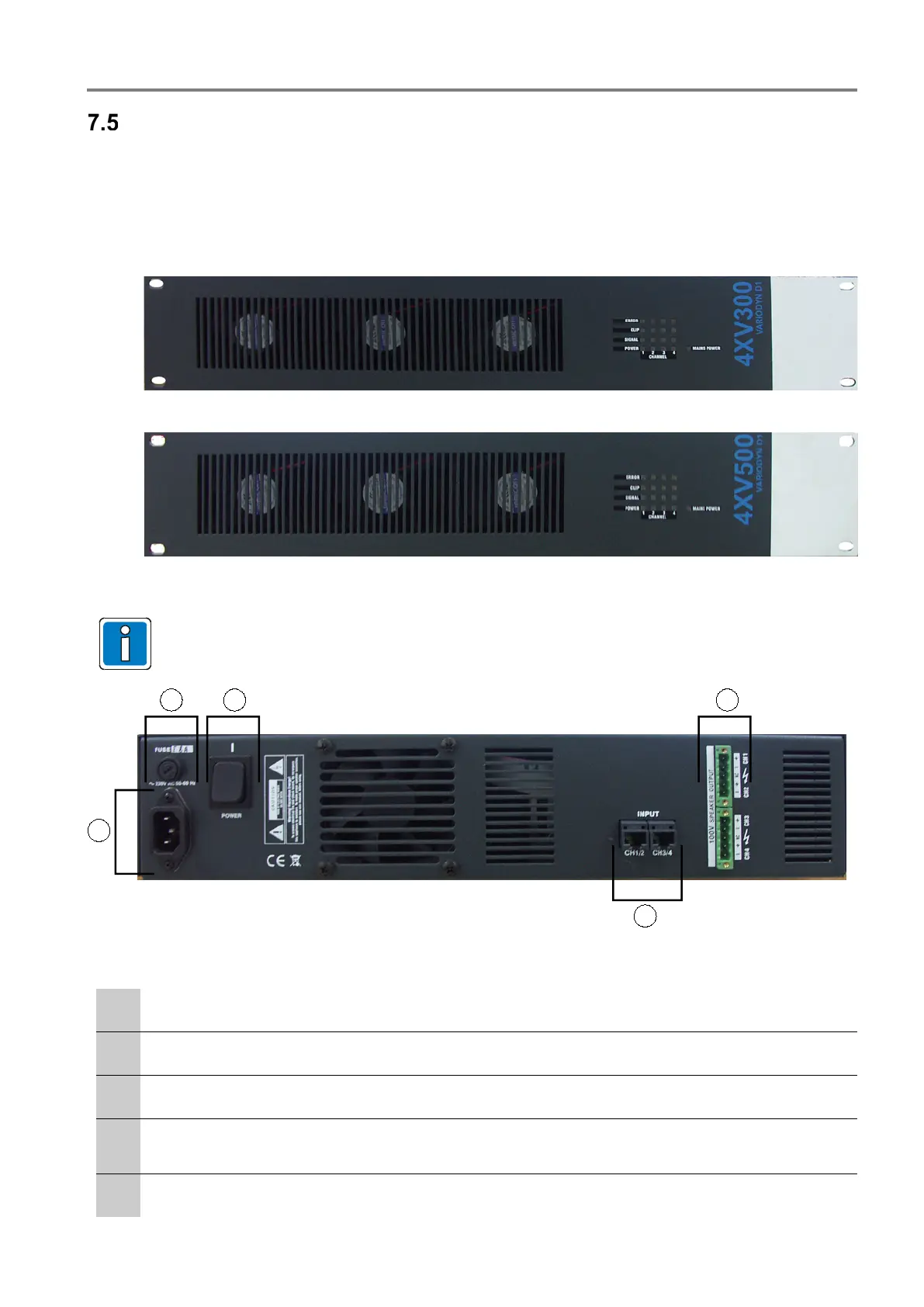

7.5.1 Power Amplifier 4XV300 / 4XV500
Fig. 61: Front view of power amplifier 4XV300
Fig. 62: Front view of power amplifier 4XV500
Additional information on LED indicators refer to operating instruction (Part No. 798662.GB0).
1
2 3 4
5
Fig. 63: Rear view of power amplifier 4XV300 / 4XV500

230 V AC rated voltage via IEC power socket

Primary fuse F 8 A / 250 V

On / off switch

Plug connections to control unit (use system cable)
The SPK outputs are designed with touch-protected terminals.

Plug connection – AF input signal from the control unit
