Honeywell VFD CORE

CHAPTER 12: DESCRIPTION OF PARAMETER SETTINGS
63-4528—04 138
• The transition from acceleration/deceleration time 1 to acceleration/deceleration time 4, may also be enabled by the external
terminals. The external terminal has priority over Pr. 01-23.
• It is used to give the smoothest transition between speed changes. The accel./decel. curve can adjust the S-curve of the
accel./decel. When it is enabled, the drive will have different accel./decel. curve by the accel./decel. time.
• The S-curve function is disabled when accel./decel. time is set to 0.
• When Pr.01-12, 01-14, 01-16, 01-18 ³ Pr.01-24 and Pr.01-25,
the Actual Accel. Time = Pr.01-12, 01-14, 01-16, 01-18 + (Pr.01-24 + Pr.01-25)/2
• When Pr.01-13, 01-15, 01-17, 01-19 ³ Pr.01-26 and Pr.01-27,
the Actual Decel. Time = Pr.01-13, 01-15, 01-17, 01-19 + (Pr.01-26 + Pr.01-27)/2
a
01 - 23 Frequency of 1st Acceleration / Deceleration &
Frequency of 4
th
Acceleration / Deceleration.
Factory Setting: 0.00
Settings 0.00~600.00Hz
a
01 - 24 S-curve for Acceleration Departure Time 1
a
01 - 25 S-curve for Acceleration Arrival Time 2
a
01 - 26 S-curve for Deceleration Departure Time 1
a
01 - 27 S-curve for Deceleration Arrival Time 2
Factory Setting: 0.20/0.2
Settings Parameter 01-37=0: 0.00~25.00 seconds
Parameter 01-37=1: 0.00~250.0 seconds

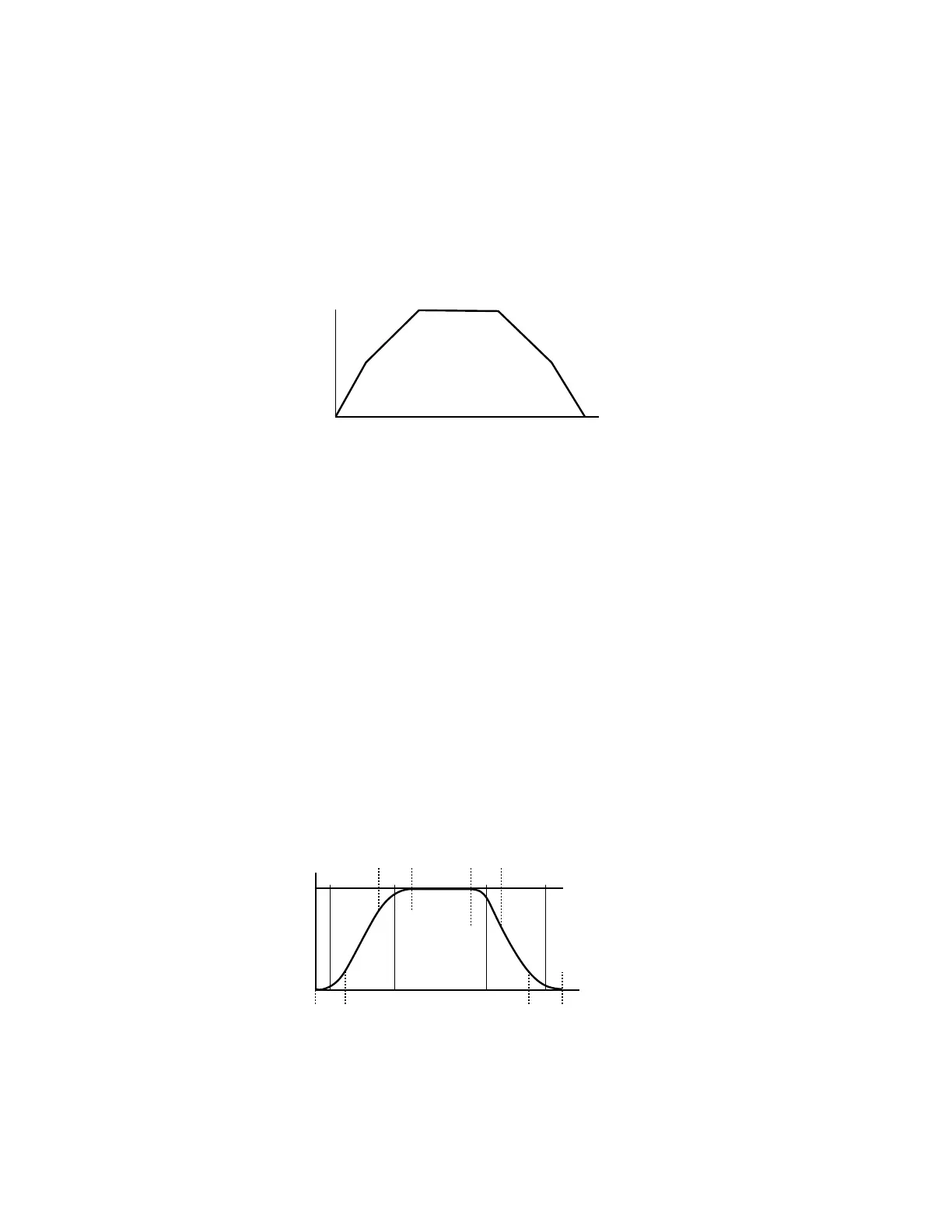

M33615
FREQUENCY
4TH
ACCELERATION
TIME
1ST / 4TH
ACCELERATION /
DECELERATION
FREQUENCY
1ST
ACCELERATION
TIME
4TH
TIME
DECELERATION
TIME
01-23
1ST
DECELERATION
TIME
M33616
FREQUENCY
01-25
01-26
01-2701-24
TIME
