63-4528—04 2
CHAPTER 1: INTRODUCTION
Receiving and Inspection
After receiving the VFD, please check for the following:
1. Please inspect the unit after unpacking to assure it was not damaged during shipment.
2. Make sure that the part number printed on the package corresponds with the part number indicated on the nameplate
3. Make sure that the voltage for the wiring lie within the range as indicated on the nameplate.
4. Please install the VFD according to this manual.
5. Before applying the power, please make sure that all the devices, including power, motor, control board and digital keypad,
are connected correctly.
6. When wiring the VFD, please make sure that the wiring of input terminals “R/L1, S/L2, T/L3” and output terminals “U/T1, F/
T2, W/T3” are correct to prevent drive damage.
7. When power is applied, select the language and set the parameter groups via the digital keypad.
8. After applying the power, please trial run with the low speed and then increase the speed gradually to the desired speed.
Nameplate Information

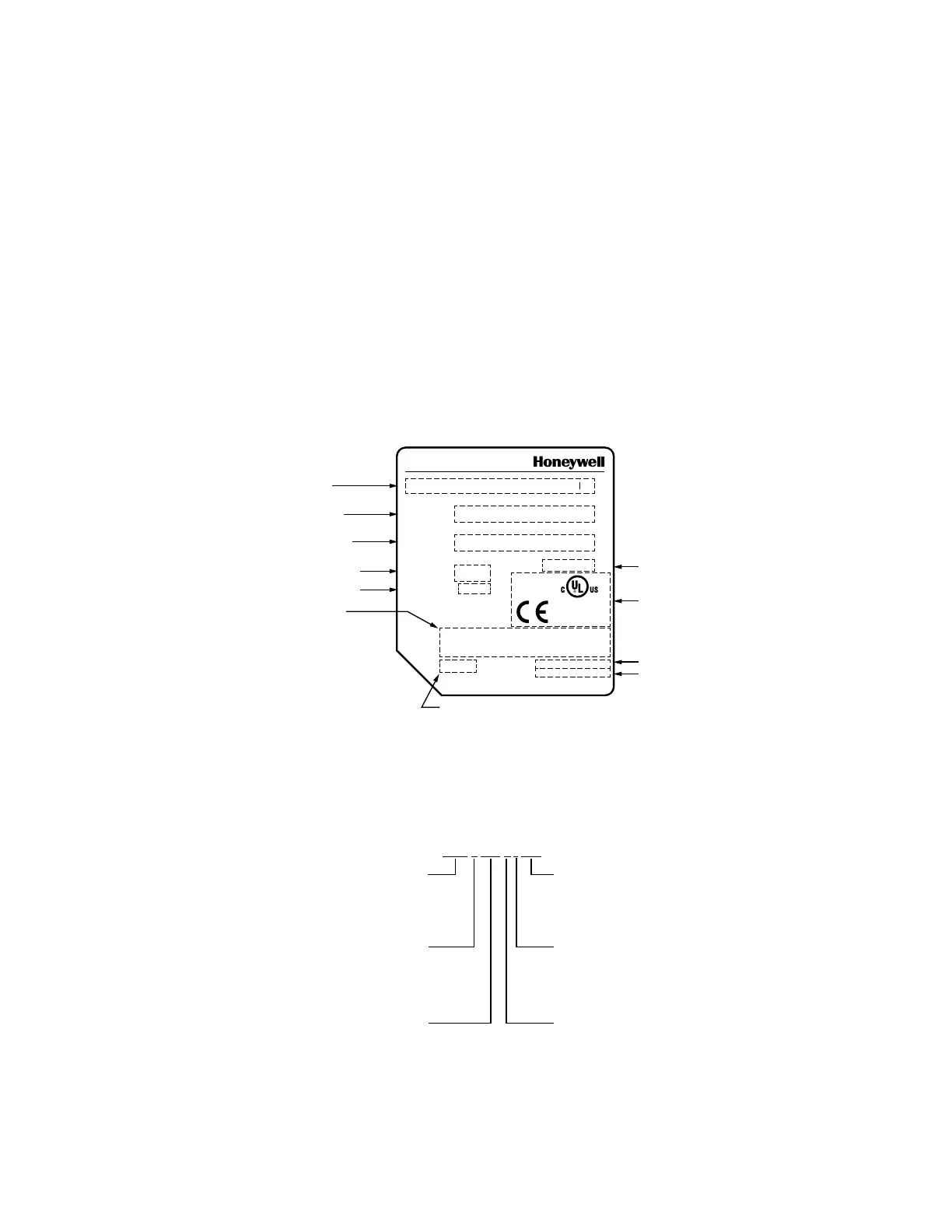

Fig. 1. Nameplate Information.
Model Name
Fig. 2. Model Name.
RATED INPUT:
Normal Duty:
Heavy Duty:
RATED OUTPUT:
Normal Duty:
Heavy Duty:
FREQUENCY RANGE:
Normal Duty:
Heavy Duty:
VERSION:
HCRDA0010A1000T
Automation and
Control Solutions
Honeywell
Golden Valley, MN 55422
50067809 001 Rev A
1
LISTED 178H
INDUSTRIAL
CONTROL
EQUIPMENT
M33222
HONEYWELL
MODEL NUMBER
INPUT VOLTAGE
AND CURRENT
OUTPUT VOLTAGE
AND CURRENT
FREQUENCY RANGE
FIRMWARE VERSION
SERIAL NUMBER
AAAAAAAABCDDEEEE
AAAAAAAA MODEL CODE
B FACTORY:
T FOR TAOYUAN,
W FOR WUJIANG
C LAST DIGIT OF YEAR
DD WEEK: FROM 1 52
EEEE WEEKLY QUANTITY:
BEGIN EACH WEEK WITH “0001”
DATE CODE YYWW
YY LAST 2 DIGITS OF YEAR
WW 2 DIGIT WEEK
ENCLOSURE TYPE
DESCRIPTION
CERTIFICATIONS
HONEYWELL SERIAL
COUNTRY OF ORIGIN
HCRD A 0100 A 1 000T
M33232
NOMINAL VOLTAGE
A 208/230 VAC DRIVE ALONE,
208 VAC BYPASS
B 230 VAC BYPASS
C 480 VAC
D 575 VAC
PRODUCT FAMILY
HCRD CORE DRIVE
HCRB CORE BYPASS
NOMINAL HORSEPOWER
0007 0.75 HORSE POWER
0010 1 HORSE POWER
0100 10 HORSE POWER
FRAME SIZE
A, B, C, D, E -- SEE
DIMENSIONAL TABLE
OPTIONS
000T DRIVE ONLY WITH
TEXT DISPLAY
3000T DRIVE WITH BYPASS
3 CONTRACTOR
ENCLOSURE TYPE
1 NEMA 1
2 NEMA 12
3 NEMA 3R
