CHAPTER 12: DESCRIPTION OF PARAMETER SETTINGS
209 63-4528—04
This parameter defines the time during which the PID feedback must be abnormal before a warning is given. It also can be
modified according to the system feedback signal time.
If this parameter is set to 0.0, the system would not detect any abnormality signal.
This parameter is only valid when the feedback signal is ACI.
VFD acts when the feedback signals (analog PID feedback) are abnormal.
If the command frequency falls below the sleep frequency, for the specified time in Pr. 08-12, then the drive will shut off the
output and wait until the command frequency rises above Pr.08-10.
08 - 08 Feedback Fault Treatment
Factory Setting: 0
Settings 0: Warn and keep operation
1: Warn and ramp to stop
2: Warn and coast to stop
3: Warn and operate at last frequency
a
08 - 09 Sleep Frequency
Factory Setting: 0.00
Settings 0.00~600.00Hz
a
08 - 10 Wake-up Frequency
Factory Setting: 0.00
Settings 0.00~600.00Hz
a
08 - 11 Sleep Time
Factory Setting: 0.0
Settings 0.00~600.00 seconds
a
08 – 12 PID Deviation Level
Factory Setting: 10.0
Settings 1.0~50.0%
a
08 - 13 PID Deviation Time
Factory Setting: 5.0
Settings 0.1~300.0?

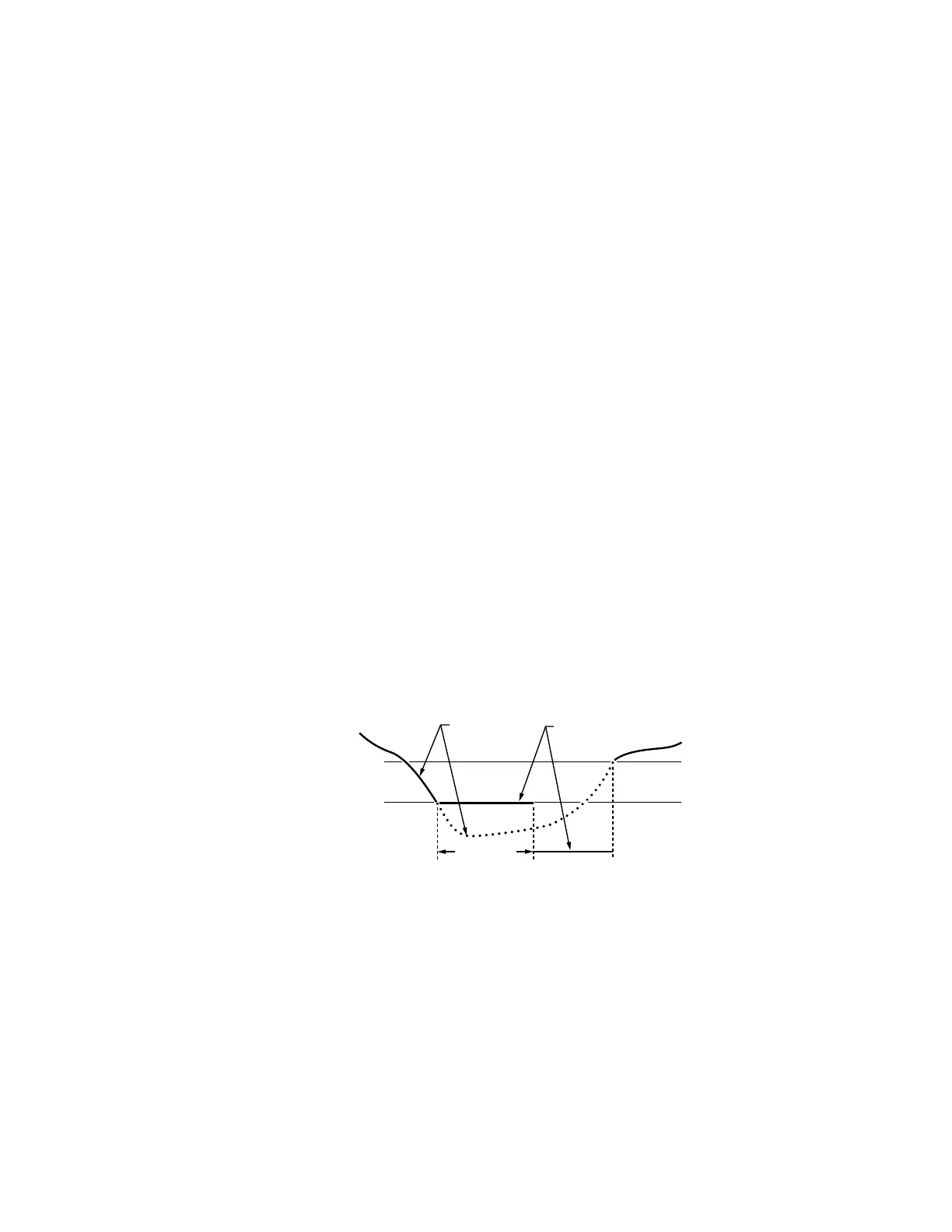

M33693
FREQUENCY
COMMAND
SLEEP FUNCTION
0Hz
SLEEP TIME
08-11
ACTUAL OUTPUT
FREQUENCY
08-09
SLEEP
FREQUENCY
08-10
WAKE-UP
FREQUENCY
