CHAPTER 12: DESCRIPTION OF PARAMETER SETTINGS
241 63-4528—04
Wiring
Fixed Quantity Control can control up to 8 motors. The following is an example of controlling 4 motors at the same time.

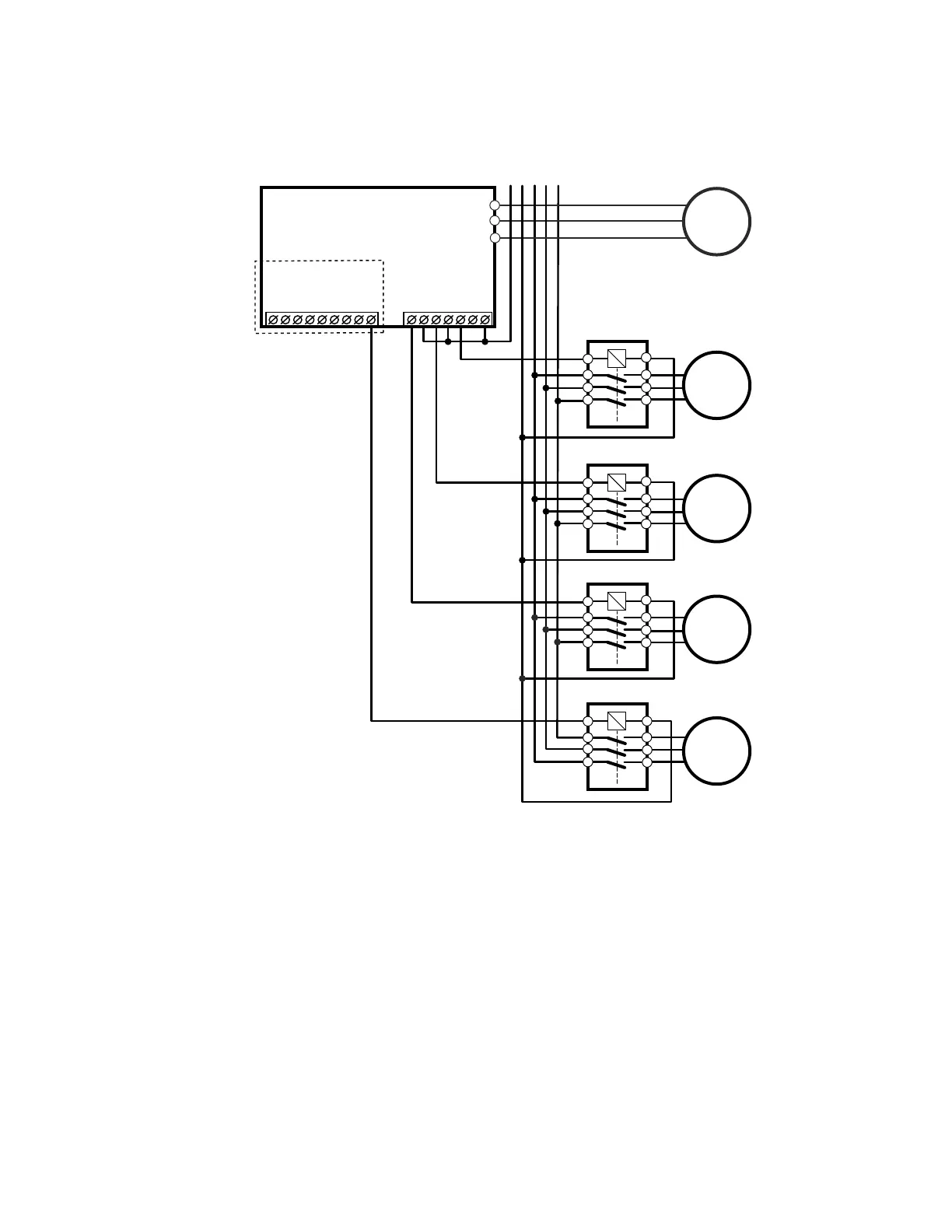

Fig. 13. Controlling 4 motors at the same time.
Time circulation and Fixed quantity circulation with PID
This mode combines Time circulation and Fixed quantity circulation with PID. It is to prevent motors to become rusty if they
are not in use for a long period of time. If some motors are not activated, set the fixed time circulation to run motors one by one to
make sure each of them has the chance to run.
M33777
M1
M0
VFD CORE
CONTACTOR
CONTACTOR
CONTACTOR
CONTACTOR
RY00
L
N RS T
WVU
M06
M05
M04
M03
M02
M01
RA3
RC3
RA2
RC2
RA1
RB1
RC1
M2
M3
M4
To Next Page
