CHAPTER 7: OPTIONAL COMPONENTS
63-4528—04 44

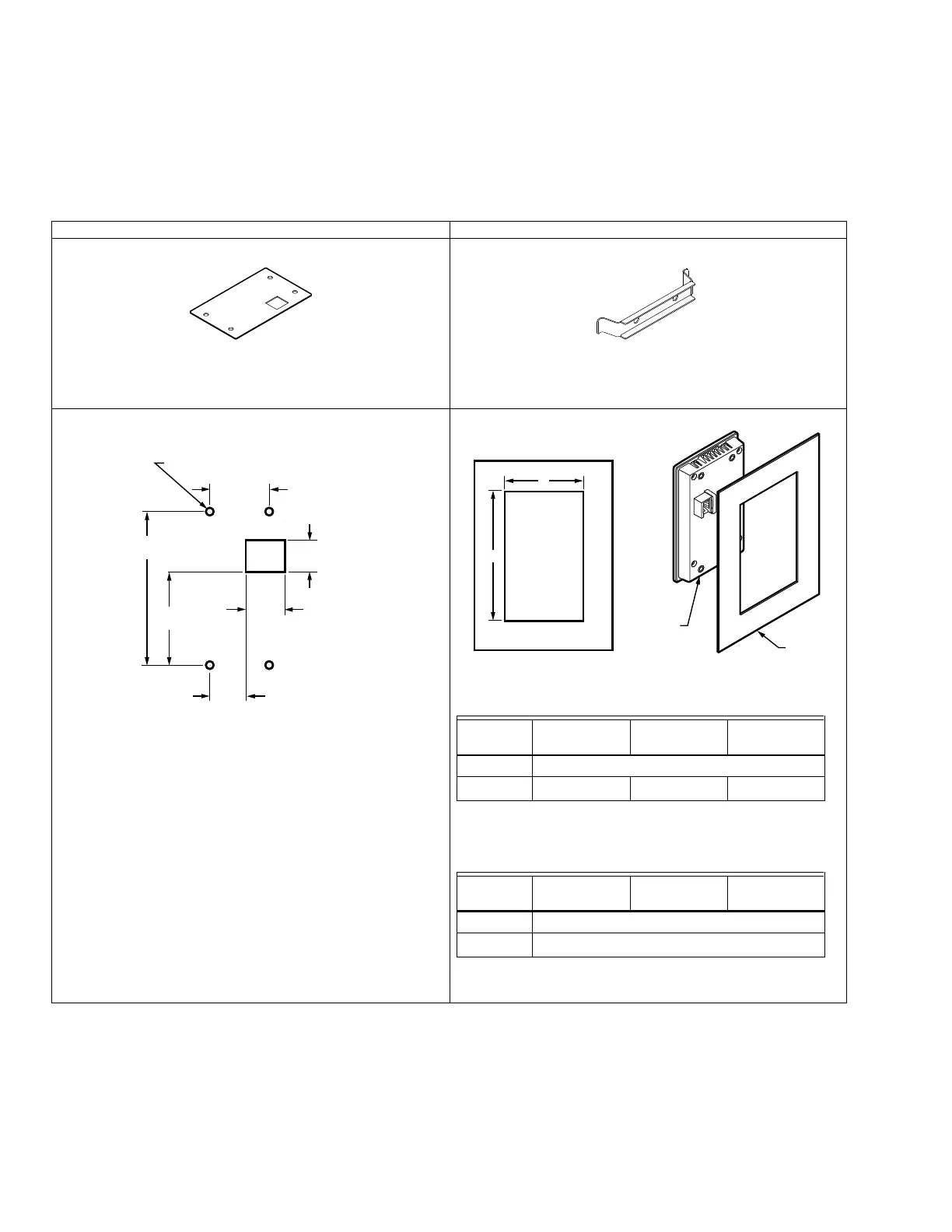

Panel Mounting Kit: HCRDMOUNTKIT/U
For mounting kit model, user can choose wall mounting or embedded mounting, protection level is IP56.
Applicable to the digital keypads.
Wall Mounting Embedded Mounting
Mounting Plate
Screw *4 ~M4*p 0.7 *L8mm
Torque: 10-12kg-cm (8.7-10.4lb-in.)
Side Bracket
Screw *4 ~M4*p 0.7 *L8mm
Torque: 10-12kg-cm (8.7-10.4lb-in.)
Panel cutout dimension Unit: mm [inch] Panel cutout dimension Unit: mm [inch]
M33300
M33301
M33302
Ø 5 (3/16)
36 (1 27/64)
24 (15/16)
19
(3/4)
22 (7/8)
93
(3-21/32)
57
(2-7/32)
M33303
PANEL
A
B
KEYPAD
Normal cutout dimension
*Deviation: ±0.15mm /±0.0059inch
Cutout dimension (Waterproof level: IP56)
*Deviation: ±0.15mm /±0.0059inch
Panel
thickness 1.2mm 1.6mm 2.0mm
A 66.4 [2.614]
B
110.2 [4.339] 111.3 [4.382] 112.5 [4.429]
Panel
thickness 1.2mm 1.6mm 2.0mm
A 66.4 [2.614]
B
110.8 [4.362]
