Honeywell VFD CORE

CHAPTER 7: OPTIONAL COMPONENTS
49 63-4528—04
Frame E

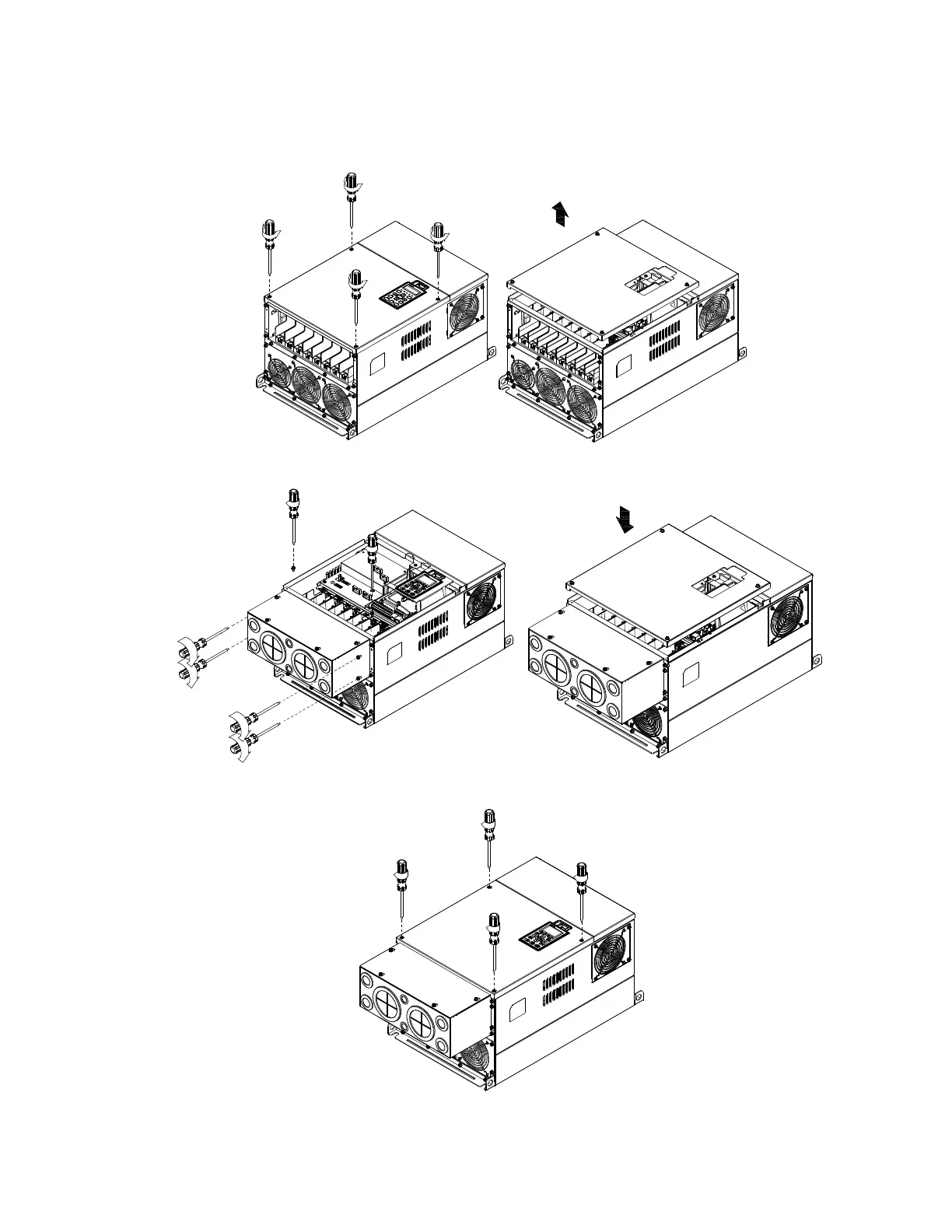

1. Loosen the 4 cover screws and lift the cover; Screw torque: 12~ 15 kg-cm (10.4~13Ib-in).
2. Tighten the 6 screws shown in the following figure and place the cover back to the original position.
Screw torque: 25~30kg-cm (20.8~30Ib-in)
3. Tighten the 4 screws shown in the following figure. Screw torque:12~15kg-cm (10.4~13Ib-in)』
