138
Voyager XP User Guide
EA
N/
J
AN-13

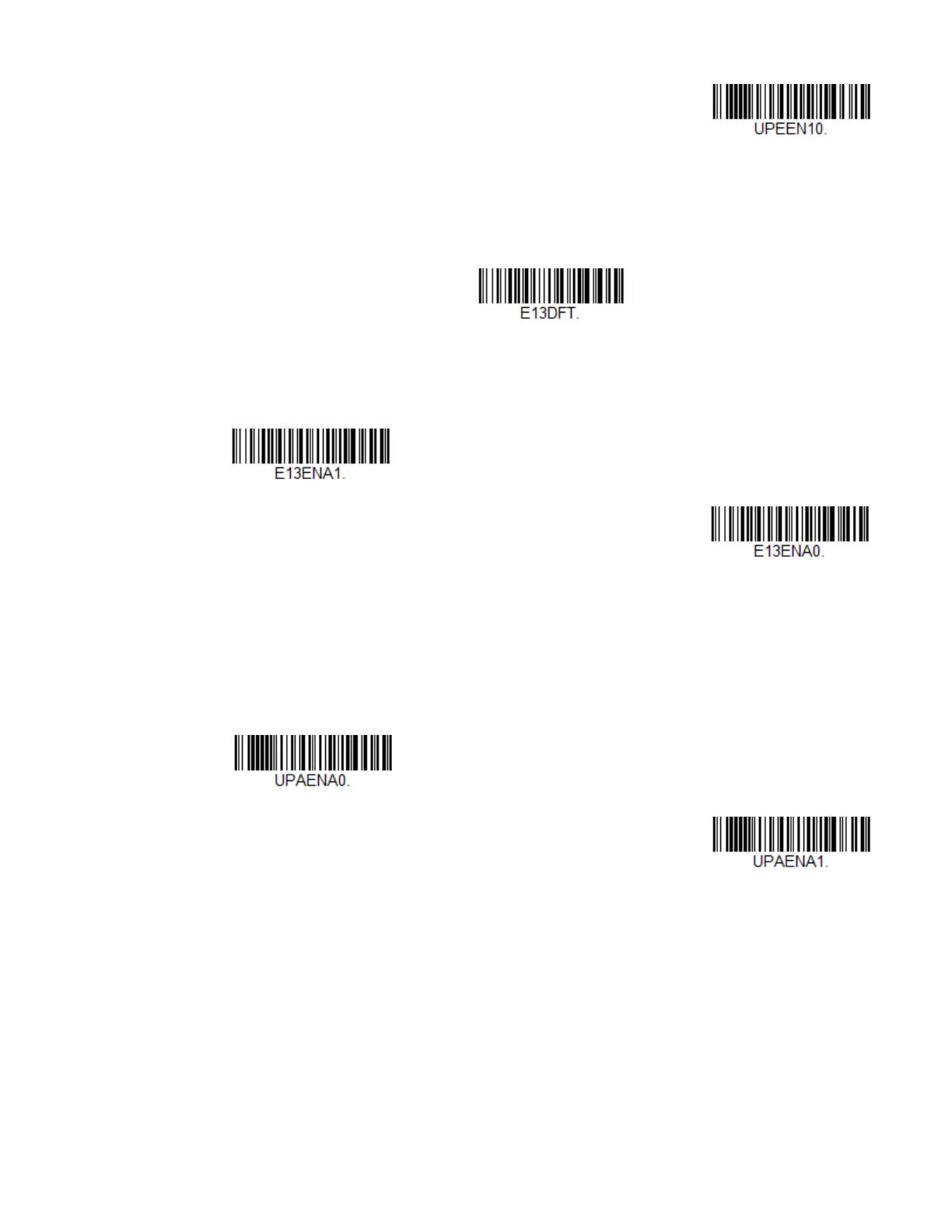

<Default All EAN/JAN Settings>
EAN/
J
AN-13 On/Of
f
Conver
t UPC-A to E
AN-13
When
UPC-A Converted to EAN-13
is selected, UPC-A barcodes are conver
ted to
13 digit E
AN-1
3 codes by adding a zero to the front. When
Do not Convert UPC-A
is selected, UPC-A codes are read as UPC-A.
* UPC-E1 Off
* On
Off
UPC-A Converted to EAN
-13
* Do not Convert UPC-A
154
156
Table of Contents
default chapter
4
Table of Contents
4
Customer Support
16
Limited Warranty
16
Product Service and Repair
16
Technical Assistance
16
Chapter 1 - Get Started
18
About this Manual
18
Unpack Your Device
18
Connect the Device
19
Connect with USB
19
Connect with Keyboard Wedge
20
Connect with RS232 Serial Port
21
Connect with RS485
22
Mount a CCB01-010BT-V1N Charge Base
24
Reading Techniques
24
Menu Barcode Security Settings
25
Set Custom Defaults
25
Reset the Custom Defaults
26
Chapter 2 - Program the Interface
28
Introduction
28
Program the Interface - Plug and Play
28
Keyboard Wedge
28
Laptop Direct Connect
29
RS232 Serial Port
29
Rs485
29
RS485 Packet Mode
30
USB IBM Surepos
31
USB PC or Macintosh Keyboard
31
Usb Hid
32
USB Serial
32
CTS/RTS Emulation
32
ACK/NAK Mode
32
Remote Mastermind™ for USB
33
Verifone ® Ruby Terminal Default Settings
33
Gilbarco ® Terminal Default Settings
34
Honeywell Bioptic aux Port Configuration
34
Datalogic™ Magellan © Bioptic aux Port Configuration
34
NCR Bioptic aux Port Configuration
35
Wincor Nixdorf Terminal Default Settings
35
Wincor Nixdorf Beetle™ Terminal Default Settings
36
Wincor Nixdorf RS232 Mode a
36
Keyboard Country Layout
37
Keyboard Style
44
Keyboard Conversion
45
Control Character Output
46
Keyboard Modifiers
46
RS232 Modifiers
48
RS232 Baud Rate
48
RS232 Word Length: Data Bits, Stop Bits, and Parity
49
RS232 Receiver Time-Out
50
RS232 Handshaking
50
RS232 Timeout
51
Xon/Xoff
51
Ack/Nak
52
Scanner to Bioptic Communication
52
Scanner-Bioptic Packet Mode
52
Scanner-Bioptic ACK/NAK Mode
53
Scanner-Bioptic ACK/NAK Timeout
53
Chapter 3 - Cordless System Operation
54
How the Cordless Charge Base/Access Point Works
54
Link the Scanner to a Charge Base
54
Link the Scanner to an Access Point
55
Replace a Linked Scanner
56
Communication between the Cordless System and the Host
56
Program the Scanner and Base or Access Point
57
RF (Radio Frequency) Module Operation
57
System Conditions
57
Link Process
57
Scanner Is out of Range
57
Scanner Is Moved Back into Range
58
Out of Range and Back into Range with Batch Mode on
58
Page Button
58
About the Battery
58
Charge Information
59
Battery Recommendations
59
Proper Disposal of the Battery
60
Beeper and LED Sequences and Meaning
60
Scanner LED Sequences and Meaning
60
Base/Access Point LED Sequences and Meaning
61
Base Power Communication Indicator
61
Reset Scanner
62
Scan While in Base Cradle
62
Base Charging Modes
62
Page Mode
63
Page Pitch
64
Error Indicators
64
Beeper Pitch - Base Error
64
Number of Beeps - Base Error
64
Scanner Report
65
Scanner Address
65
Base or Access Point Address
65
Scanner Modes
65
Charge Only Mode
66
Linked Modes
66
Unlink the Scanner
67
Override Locked Scanner
67
Out-Of-Range Alarm
67
Alarm Sound Type
68
Scanner Power Time-Out Timer
69
Flexible Power Management
70
Batch Mode
70
Batch Mode Beep
72
Batch Mode Storage
72
Batch Mode Quantity
73
Batch Mode Output Order
75
Total Records
75
Delete Last Code
75
Clear All Codes
75
Transmit Records to Host
76
Batch Mode Transmit Delay
76
Multiple Scanner Operation
76
Scanner Name
77
Application Work Groups
78
Application Work Group Selection
79
Reset the Factory Defaults: All Application Work Groups
79
Reset the Custom Defaults: All Application Work Groups
80
Use the Scanner with Bluetooth Devices
80
Bluetooth Secure Simple Pairing (SSP)
80
Bluetooth HID Keyboard Connect
81
Virtual Keyboard
83
Bluetooth HID Keyboard Disconnect
83
Bluetooth Serial Port - Pcs/Laptops
83
Pdas/Mobility Systems Devices
83
Change the Scanner's Bluetooth PIN Code
84
Minimize Bluetooth/Ism Band Network Activity
84
Auto Reconnect Mode
84
Maximum Link Attempts
85
Relink Time-Out
86
Bluetooth/Ism Network Activity Examples
86
Host Acknowledgment
87
Host ACK Timeout
89
Chapter 4 - Input/Output Settings
90
Power up Beeper
90
Beep on BEL Character
91
Trigger Click
91
Good Read and Error Indicators
91
Beeper - Good Read
91
Beeper Volume - Good Read
92
Beeper Pitch - Good Read
92
Beeper Pitch - Error
92
Beeper Duration - Good Read
93
LED - Good Read
93
Number of Beeps - Good Read
93
Number of Beeps - Error
94
Good Read Delay
94
User-Specified Good Read Delay
95
Manual Trigger Mode
95
LED Illumination - Manual Trigger
95
Serial Trigger Mode
96
Read Time-Out
96
Presentation Mode
96
Triggered Presentation Mode
96
Presentation Centering
97
In-Stand Sensor Mode
98
Poor Quality Codes
99
Poor Quality 1D Codes
99
Poor Quality PDF Codes
99
Codegate
100
Mobile Phone Read Mode
100
Hands Free Time-Out
100
Reread Delay
101
User-Specified Reread Delay
101
Character Activation Mode
102
Activation Character
102
End Character Activation after Good Read
103
Character Activation Timeout
103
Character Deactivation Mode
103
Deactivation Character
104
Illumination Lights
104
Aimer Delay
104
User-Specified Aimer Delay
105
Aimer Mode
105
Centering
105
No Read
107
Video Reverse
108
Working Orientation
109
Chapter 5 - Data Edit
110
Prefix/Suffix Overview
110
To Add a Prefix or Suffix
111
Clear One or All Prefixes or Suffixes
111
Add a Carriage Return Suffix to All Symbologies
112
Prefix Selections
112
Suffix Selections
112
Function Code Transmit
113
Intercharacter, Interfunction, and Intermessage Delays
113
Intercharacter Delay
113
User Specified Intercharacter Delay
114
Interfunction Delay
114
Intermessage Delay
115
Chapter 6 - Data Format
116
Data Format Editor Introduction
116
Show Data Format
117
Add a Data Format
117
Other Programming Selections
118
Terminal ID Table
119
Data Format Editor Commands
119
Move Commands
122
Search Commands
123
Miscellaneous Commands
125
Data Formatter
128
Primary/Alternate Data Formats
128
Chapter 7 - Symbologies
130
All Symbologies
131
Message Length Description
131
Codabar
132
Codabar Concatenation
133
Code 39
134
Code 32 Pharmaceutical (PARAF)
136
Full ASCII
137
Code 39 Code Page
137
Interleaved 2 of 5
138
NEC 2 of 5
139
Code 93
141
Code 93 Code Page
142
Straight 2 of 5 Industrial (Three-Bar Start/Stop)
142
Straight 2 of 5 IATA (Two-Bar Start/Stop)
143
Matrix 2 of 5
144
Code 11
145
Code 128
146
ISBT 128 Concatenation
146
Code 128 Code Page
147
Gs1-128
148
Upc-A
149
UPC-A/EAN-13 with Extended Coupon Code
151
Coupon GS1 Databar Output
152
Upc-E0
152
Upc-E1
154
Ean/Jan-13
155
Convert UPC-A to EAN-13
155
ISBN Translate
157
Ean/Jan-8
158
Msi
160
GS1 Databar Omnidirectional
161
GS1 Databar Limited
162
GS1 Databar Expanded
162
Codablock a
163
Codablock F
164
Pdf417
165
Macropdf417
165
Micropdf417
166
GS1 Composite Codes
167
UPC/EAN Version
167
GS1 Emulation
168
TCIF Linked Code 39 (TLC39)
169
QR Code
169
QR Code Append
170
QR Code Page
171
Data Matrix
171
Data Matrix Code Page
172
Maxicode
172
Aztec Code
173
Aztec Code Page
175
Chinese Sensible (Han Xin) Code
175
Postal Codes - 2D
176
Single 2D Postal Codes
176
Combination 2D Postal Codes
177
Postal Codes - Linear
180
China Post (Hong Kong 2 of 5)
180
Korea Post
181
Chapter 8 - Utilities
184
Add a Test Code I.D. Prefix to All Symbologies
184
Show Decoder Library Version
184
Show Software Revision
184
Show Data Format
185
Test Menu
185
Ezconfig for Scanning Introduction
185
Install Ezconfig Cloud for Scanning
186
Reset the Factory Defaults
186
Chapter 9 - Serial Programming Commands
188
Conventions
188
Menu Command Syntax
188
Query Commands
189
Trigger Commands
191
Reset the Custom Defaults
192
Menu Commands
192
Chapter 10 - Product Specifications
214
Voyager XP 1470G Scanner Product Specifications
214
Voyager XP 1472G Cordless Scanner Product Specifications
215
CCB01-010BT-V1N Charge Base Product Specifications
216
Depth of Field Charts
217
Typical Performance
217
Guaranteed Performance
218
Standard Cable Pinouts
218
Keyboard Wedge
219
Serial Output
219
Usb
220
RS485 Output
220
Chapter 11 - Maintenance and Troubleshooting
224
Repairs
224
Maintenance
224
Clean the Scanner
224
Clean the Window
225
About Disinfectant-Ready Models
225
Inspect Cords and Connectors
225
Replace Cables in Corded Scanners
225
Replace a Corded Scanner Interface Cable
226
Replace Cables and Batteries in Cordless Systems
226
Replace an Interface Cable in a Base
226
Change a Cordless Scanner Battery
227
Troubleshoot a Corded Scanner
227
Troubleshoot a Cordless System
228
Troubleshoot a Base
228
Troubleshoot a Cordless Scanner
228
Symbology Charts
230
Linear Symbologies
230
2D Symbologies
231
Postal Symbologies
232
ASCII Conversion Chart (Code
233
Lower ASCII Reference Table
234
ISO 2022/ISO 646 Character Replacements
237
Keyboard Key References
240
Sample Symbols
242
Programming Chart
244
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Honeywell Voyager 147 Series and is the answer not in the manual?
Ask a question
Honeywell Voyager 147 Series Specifications
General
Brand
Honeywell
Model
Voyager 147 Series
Category
Scanner
Language
English
Related product manuals
Honeywell Voyager XP 147 Series
246 pages
Honeywell Voyager 1452g
4 pages
Honeywell Voyager 1470g
247 pages
Honeywell Voyager 1472g
247 pages
Honeywell Voyager 1452g Series
206 pages
Honeywell Voyager 1400g Series
216 pages
Voyager 1450g2DHR Series
206 pages
Honeywell Voyager XP 1470g2D
16 pages
Honeywell Voyager XP 1472g2D
15 pages
Voyager XP 1472g Series
246 pages
Voyager XP 1470g Series
246 pages
Honeywell Voyager MK9520
49 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
