158 Voyager XP User Guide

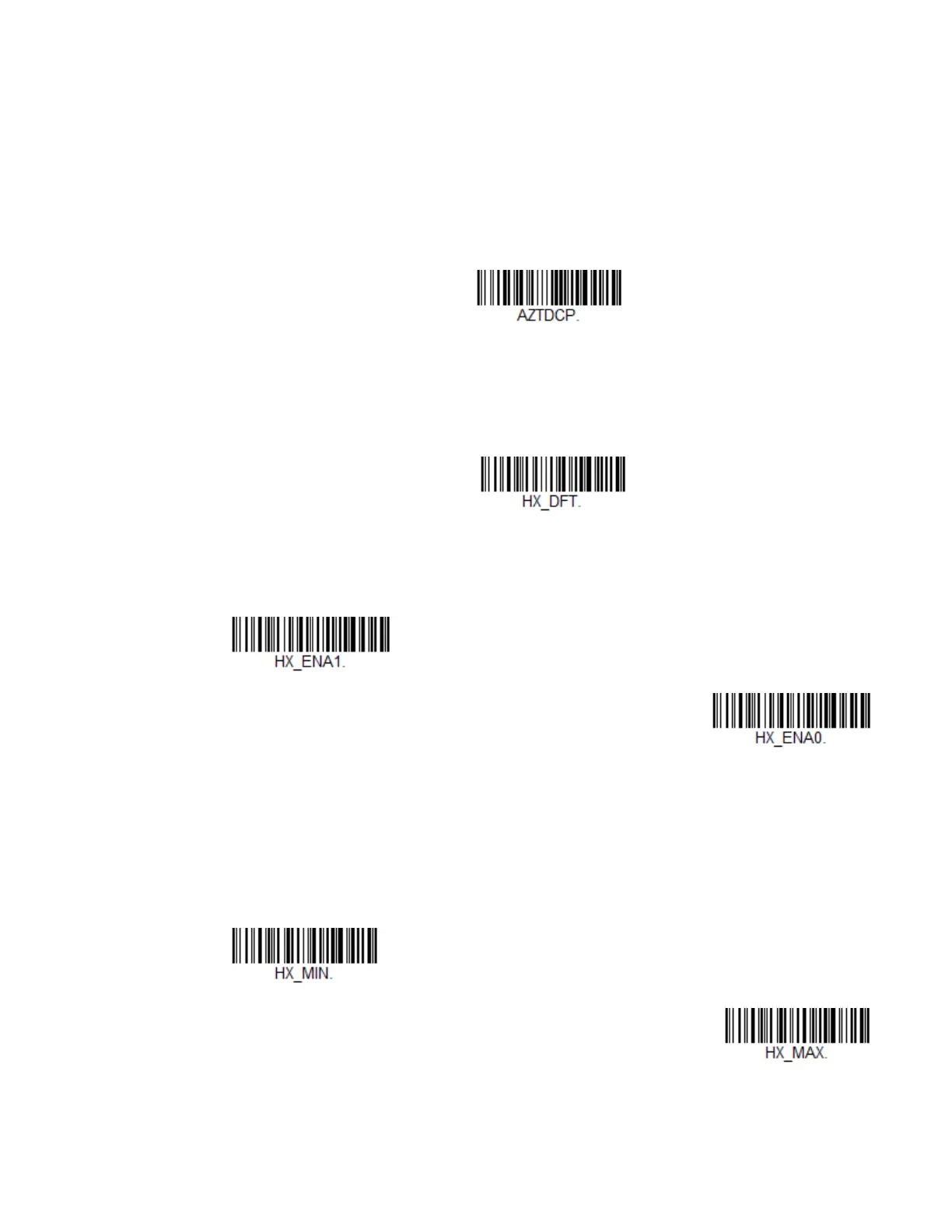

Aztec Code Page
Aztec Code pages define the mapping of character codes to characters. If the data
received does not display with the proper characters, it may be because the bar-
code being scanned was created using a code page that is different from the one
the host program is expecting. If this is the case, scan the barcode below, select the
code page with which the barcodes were created (see ISO 2022/ISO 646 Character
Replacements on page 220), and scan the value and the Save barcode from the
Programming Chart. The data characters should then appear properly.
Chinese Sensible (Han Xin) Code
< Default All Han Xin Settings >
Han Xin Code On/Off
Han Xin Code Message Length
Scan the barcodes below to change the message length. Refer to Message Length
Description (page 114) for additional information. Minimum and Maximum
lengths = 1-7833. Minimum Default = 1, Maximum Default = 7833.
To Next Page
