Voyager XP User Guide 3
The unit defaults to a USB PC Keyboard. Refer to page 14 for other USB terminal
settings.
Connect with Keyboard Wedge
A scanner or cordless base can be connected between the keyboard and PC as a
“keyboard wedge,” where the scanner provides data output that is similar to key-
board entries. The following is an example of a keyboard wedge connection:
1. Turn off power and disconnect the keyboard cable from the back of the termi-
nal/computer.
2. Connect the appropriate interface cable to the device and to the terminal/
computer.
Note: The power supply must be ordered separately, if needed.

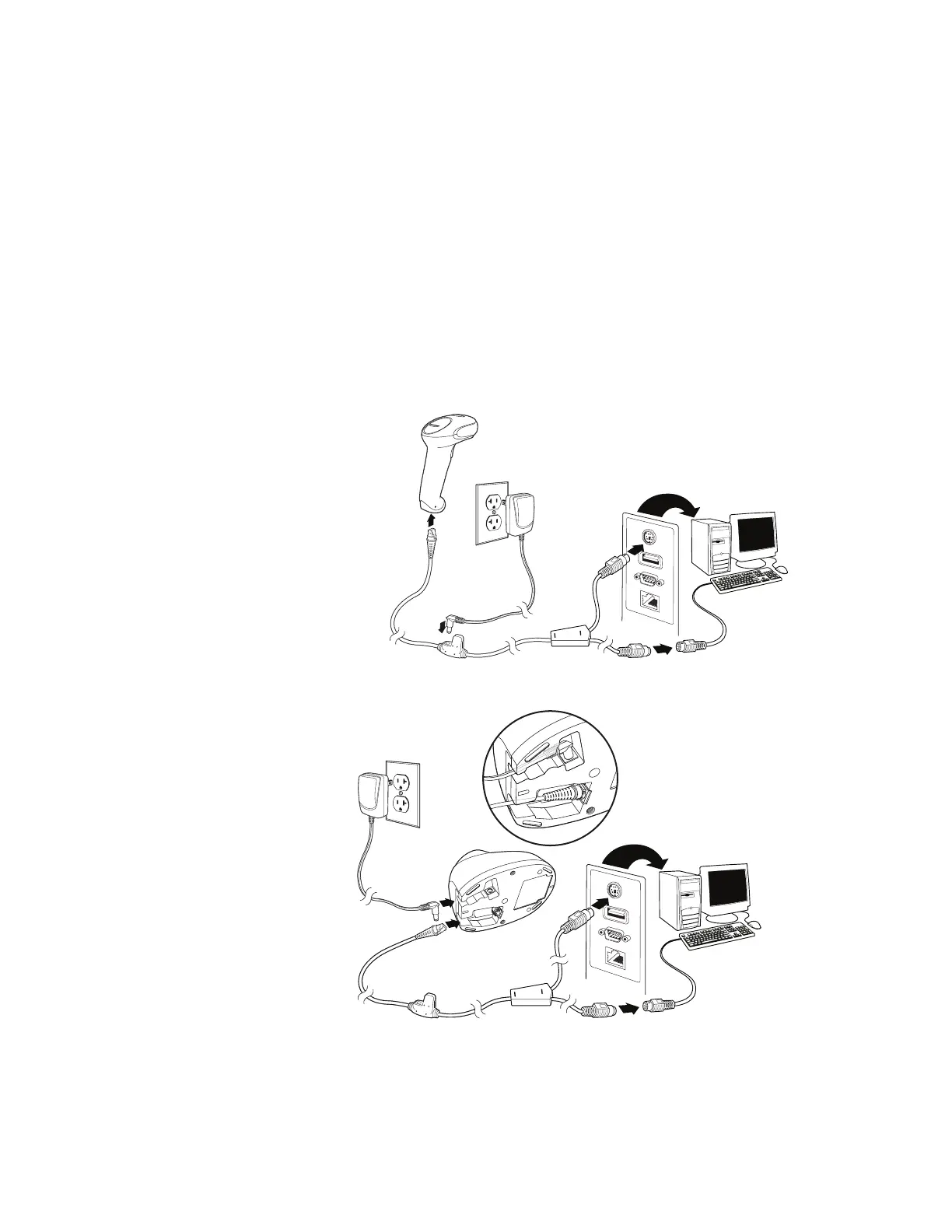

Corded Voyager XP 1470g
Keyboard Wedge Connection:
CCB01-010BT-V1N Base
Keyboard Wedge Connection:
CCB01-010BT-V1N Base
Keyboard Wedge Connection:
