SPYDER MODEL 7 VAV CONTROLLER INSTALLATION INSTRUCTIONS
31 31-00475-01
Bluetooth LED Status
Controller LED Status

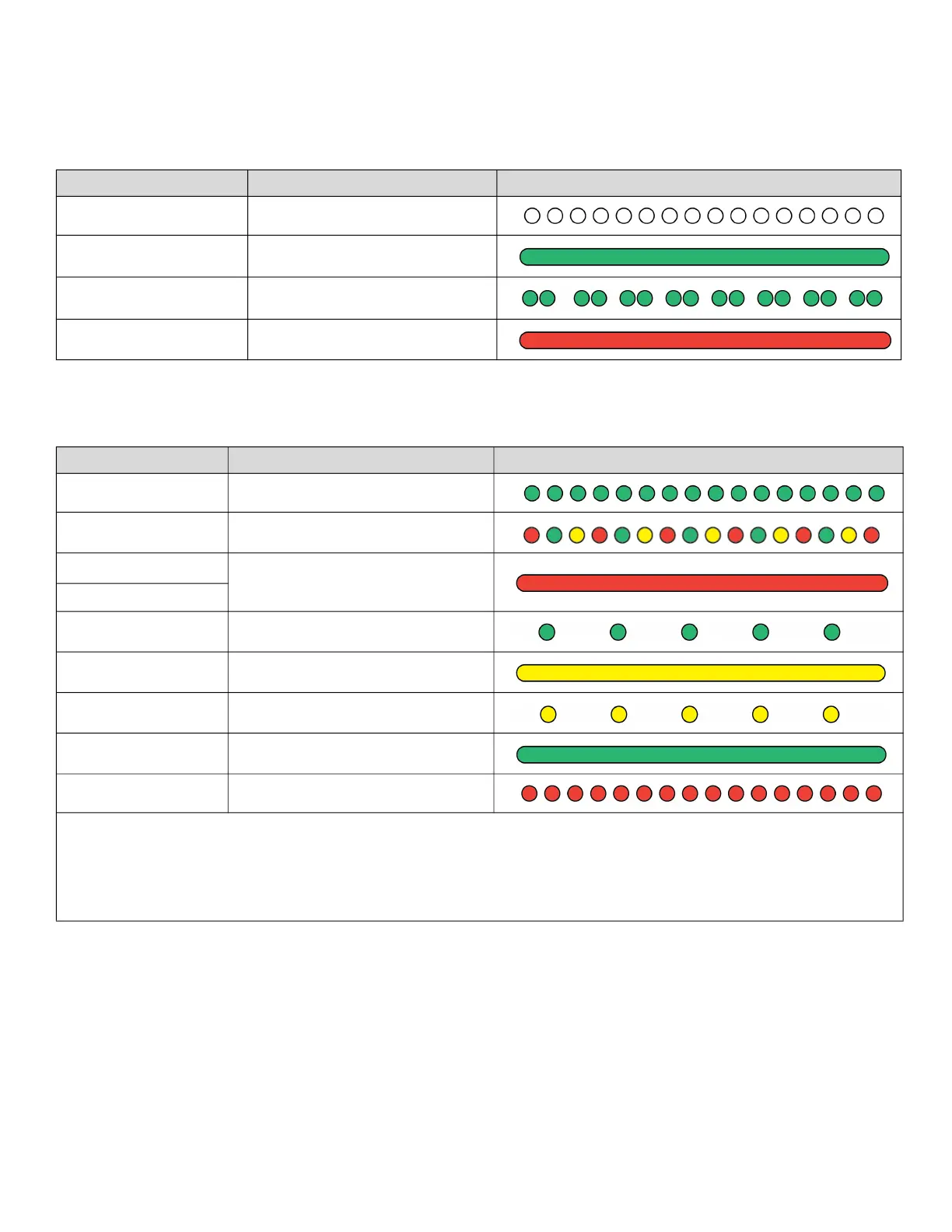

Table 25 Bluetooth LED Status
Mode LED Status Visual
BLE disabled by user OFF
BLE normal operation
and connected
Green, permanently ON.
BLE enabled but not
connected
Green, 2 blinks in 1 s followed by
2 s pause, and repeat.
BLE failure Red, permanently ON.
Table 26 Controller LED Status
Mode LED Status Visual
Firmware download Green blinks every 200 ms.
No application
a)
Red, Green, Yellow blinks every 1 s.
Broken sensor
Red permanent ON
b)
.
Short circuit
AutoMac Green blinks every 2 s.
No Valid Mac Yellow permanent ON.
Un Ack Alarm Yellow blinks every 2 s.
Normal operation Green LED permanent ON.
Communication error Red LED blinks every 200 ms.
a)
While performing setpoint balancing using the VAV mobile application, the LED pattern changes from static
green to red, green, yellow cycles (which indicates the controller is empty).
b) For troubleshooting a permanent red LED, navigate to IRM Program > On Board IO and check the UIO function
block OutCase status. A permanent red LED will be illuminated when the OutCase status is SensorOpen (broken
sensor) or SensorClose (short circuit).
