SPYDER MODEL 7 VAV CONTROLLER INSTALLATION INSTRUCTIONS
31-00475-01 4
Dimensions

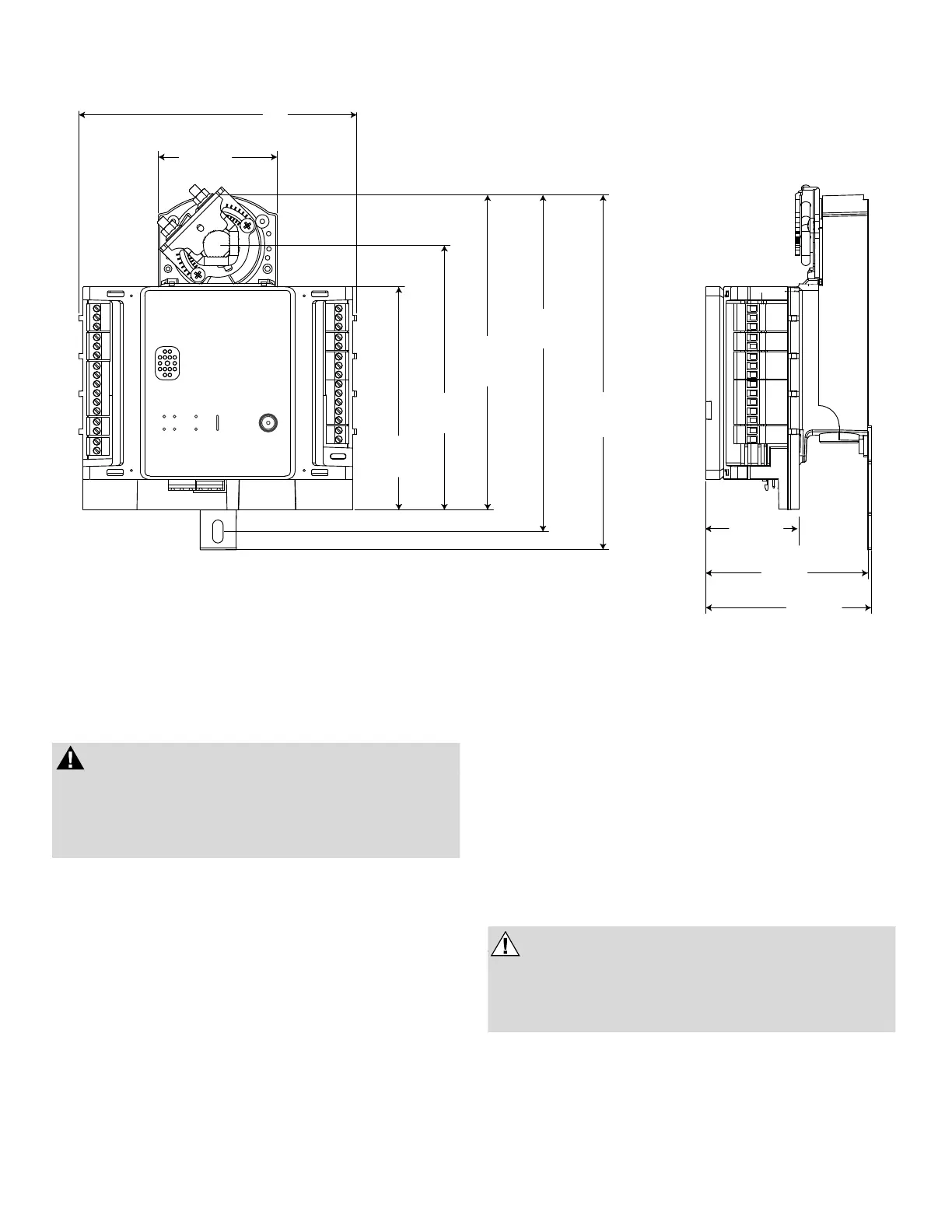

Fig. 2 Spyder Model 7 VAV Dimensions
NETWORK SECURITY
WARNING
Honeywell hereby expressly states that the
Spyder™ Model 7 VAV controllers are not
inherently protected against all cyber security
risks from the Internet and are thus intended
solely for use in private or protected networks.
Unprotected Internet connections can expose the
Spyder Model 7 VAV controller to cyber security risks.
To ensure a safe and reliable operation, take necessary
protective measures, such as locating BMS controls
behind a firewall and using a VPN connection for
remote maintenance. Numerous third-party
manufacturers offer suitable VPN routers.
GENERAL SAFETY
INSTRUCTIONS
Follow the safety instructions provided by Honeywell in
this manual while doing any operation such installation,
mounting, or starting.
• The Spyder™ Model 7 VAV controllers must be
installed and mounted by authorized and trained
personnel.
• In the case of any modification, except by Honeywell,
the operation and safety warranties become void.
• Observe all applicable local standards and
regulations.
• Use only Honeywell supplied or approved
accessories.
• Before installing or dismantling the system,
disconnect the power supply by either removing the
power terminal block from the controller or through
local isolation.
CAUTION
CAUTION
You must disconnect the power before installing,
removing, or replacing the Spyder Model 7.
Switch off the power before you install any
jumpers.
7 3/4”
(197 mm)
3 1/2”
(89 mm)
3 1/2”
(91 mm)
4 3/4”
(124 mm)
5 3/4”
(147 mm)
7”
(175 mm)
7 1/4”
(187 mm)
6”
(154 mm)
2 1/2”
(66 mm)
2”
(52 mm)
All dimensions shown are in ”(mm).
