Installation

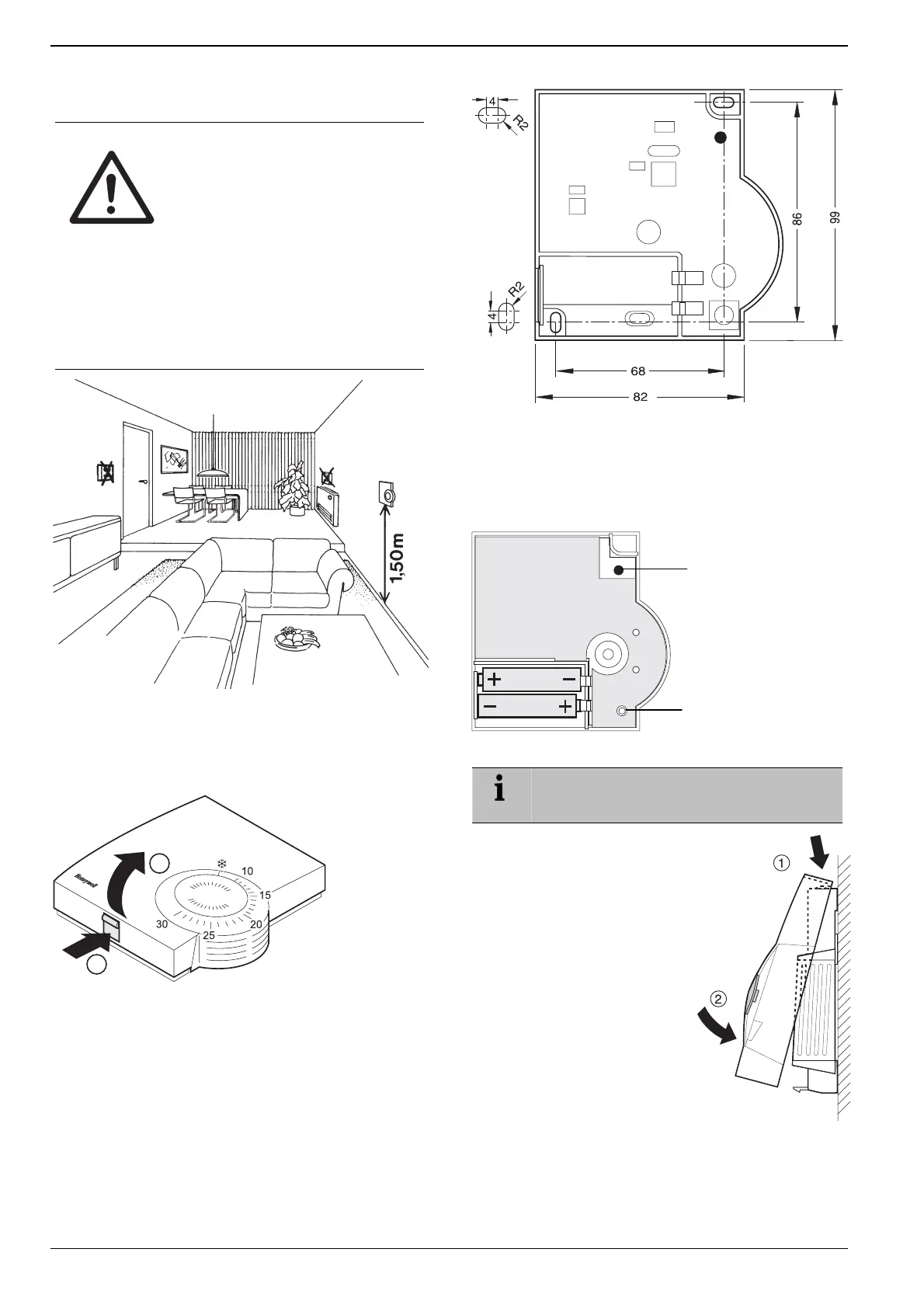

3.2. Installation room unit HCW 80
WARNING Insufficient data transfer!
Interference of the radio receiver in the
device due to metallic objects or further
radio devices.
► Ensure there is sufficient distance to
metallic objects.
► Mount the device with a distance of at
least 1 m to radio devices such as
radio headphones, cordless phones
according to the DECT standard, etc.
► Select another installation site if the
radio interference cannot be
corrected.
Fig. 12: Drilling scheme (measurements in mm)
► Drill the holes.
► Screw on the room unit.
► Insert the supplied AA batteries with the correct battery
polarity (see Fig. 13: Battery polarity and send button).
Red LED
Fig. 10: Positioning the room unit HCW 80
Send button
► Place the room unit HCW 80 at the installation site.
Fig. 13: Battery polarity and send button
► Remove the housing cover of the room unit HCW 80
(see
Fig. 11: Removing the housing cover).
1
2
Fig. 11: Removing the housing cover
► Mark the drill holes according to the drilling template
(see Fig. 12).
The batteries have to be replaced when the red
LED at the room unit HCW 80 flashes (see
section 9 “Changing batteries”).
► Place the housing cover in
position above and snap it down
(see
Fig. 14).
Fig. 14: Placing housing
cover in position
8
