BELT DRIVE
*
Braking may overide open check display
-Time Delay
2.0475d
09-07
-Motor Braking
-Open Check
*
-Open cUshion
R
+100
+100
+100
R
+100
R
R
The following cycles are carried out automatically by the C2150 control
Inspect the unit for smooth operation, free of binds and excessive noise.
Start with the door in the closed position.
Press the DOWN button to actuate the door to open at factory selected
default settings.

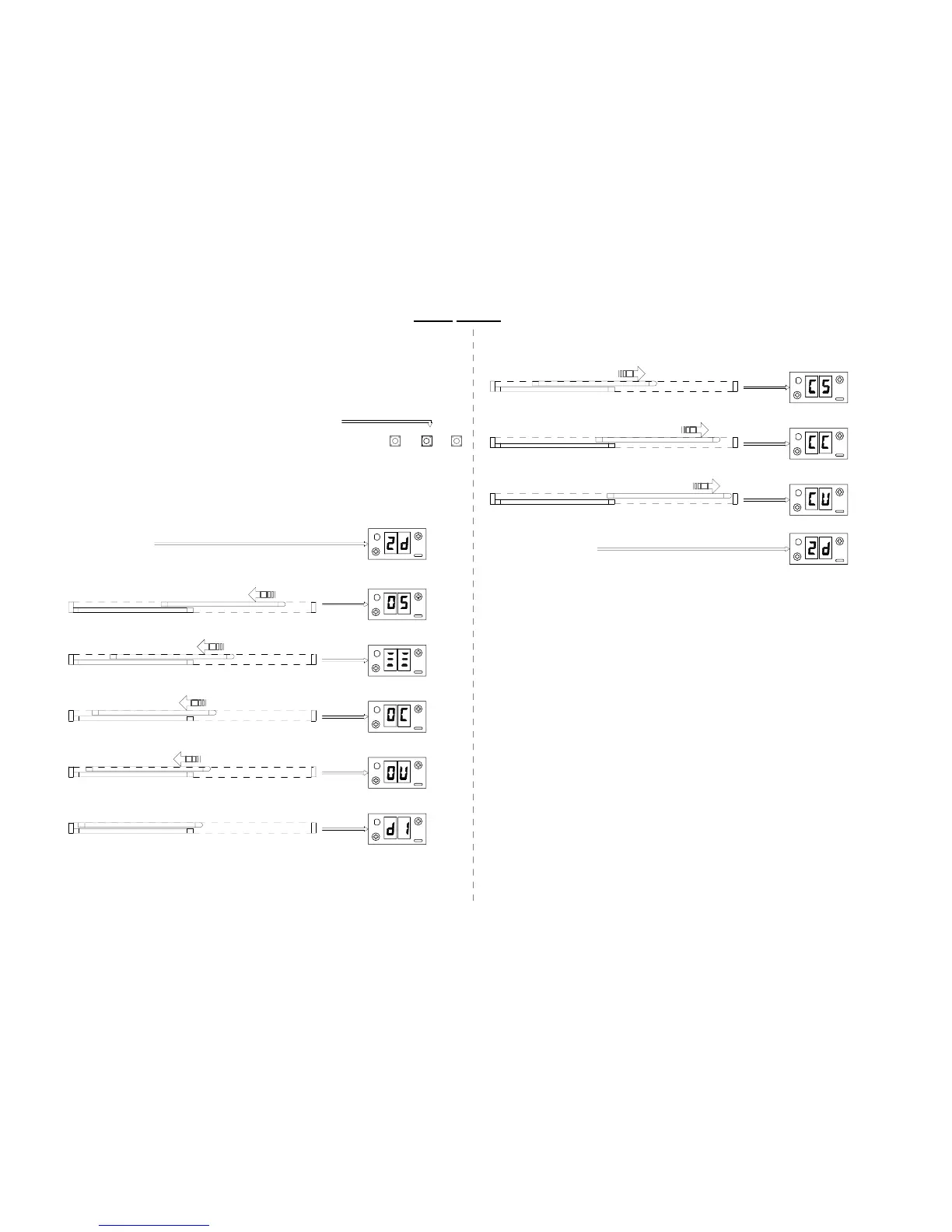

The chart (following) shows the position of the door and the display code for each position.
When the toggle switch is on, the DOWN button acts as an actuation device.
The door will move - Be sure the safety beam area is clear of obstructions.
Activation devices should not yet be installed.
13 (cont). C2150 INITIALIZATION (learn cycle cont.)
Open Cycle
-The display starts with:
7th Step -Checking door cycle
-Open Speed
R
+100
+100
R
DOWN
UP
H210.8
The closing speed should not exceed the rate of 1 ft / sec
-If the above cycle check is OK and there are no parameters to be changed or an
autolock to setup, this concludes the C2150 initialization.
IF THERE IS ANY DIFFICULITY SEE APPENDIX A
-Close cUshion
-Close Check
Close Cycle
-Close Speed
-The display returns to:
R
+100
+100
R
R
+100
R
+100
To Next Page
