38
C.
Settings and Adjustments
NOTICE
Dip switches are factory set. Failure to maintain factory settings may adversely
affect performance and warranty coverage.
1. Default Dip Switch Settings
The dip switch is factory-adjusted to the following positions:
S1 Dip Switch No. 1 2345678910
KM-80BAJ OFF OFF ON OFF ON ON ON ON OFF ON
KM-115BAJ ON OFF ON OFF ON ON OFF ON OFF ON
KM-160BAJ
KM-160BWJ
OFF OFF ON ON ON ON ON ON OFF ON
S2 Dip Switch No. 1 2 3 4 5 6
KM-80BAJ
KM-115BAJ
KM-160BAJ
KM-160BWJ
OFF OFF OFF OFF OFF ON
Do not adjust the S2 dip switch. These must be left in the factory default position, or the
unit will not operate properly.

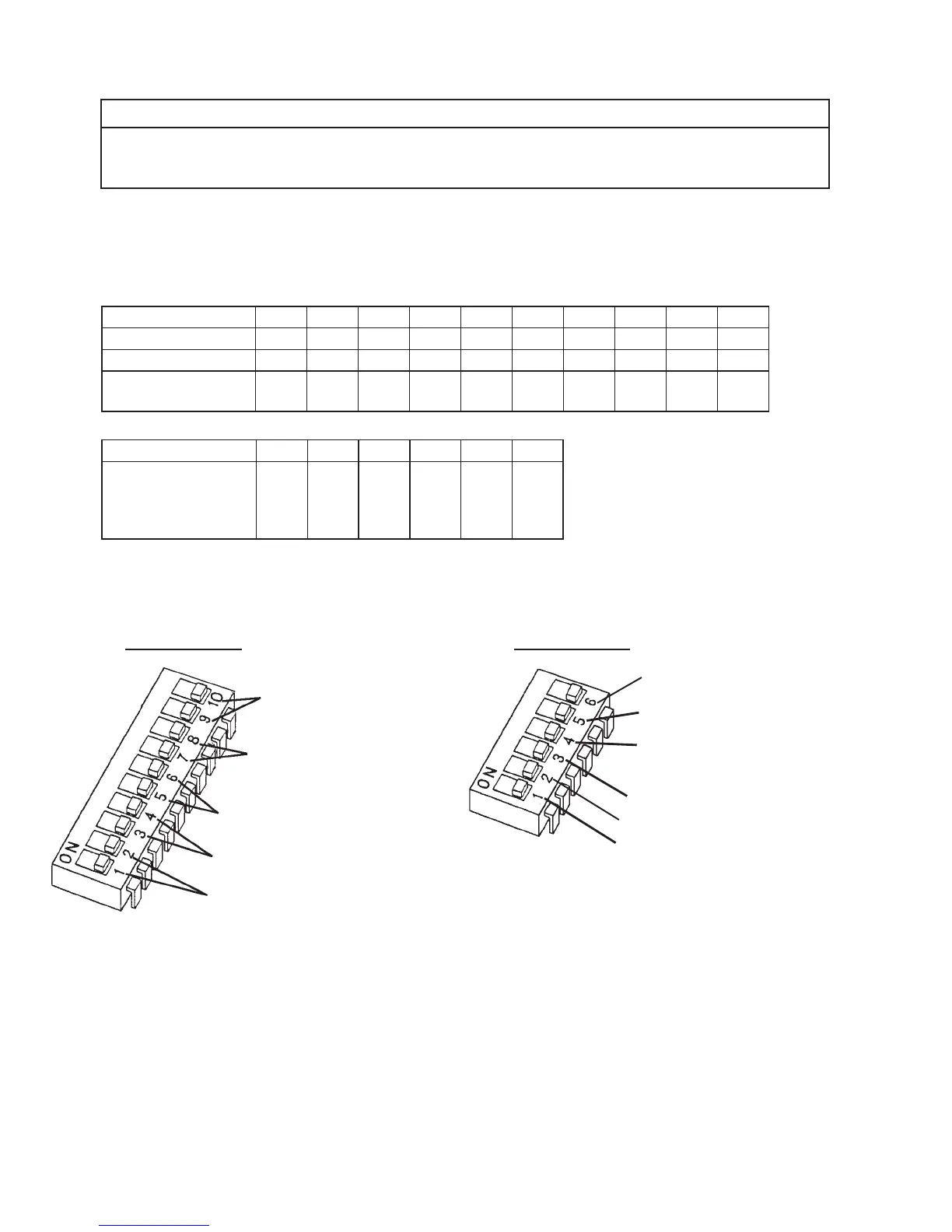

Fig. 12 Fig. 13
Freeze Timer (9 & 10)
Harvest Pump Timer (7 & 8)
Pump-Out Frequency Control
(5 & 6)
Pump-Out Timer (3 & 4)
Harvest Timer (1 & 2)
S1 Dip Switch S2 Dip Switch
Anti-Slush Control (6)
Harvest Completion Detection
Control (4)
Harvest Promotion Control (2)
Overfreeze Detection Control (5)
Pump-Out/Drain Selector (1)
Re¿ ll Counter (3)
2. Harvest Timer (S1 dip switch 1 & 2)
The harvest timer starts counting when the thermistor reached 48°F (9°C) at the
evaporator outlet and the control board reads 3.9 kȍ from the thermistor. The harvest
timer is factory set, and generatally no adjustment is required. However, a setting
