7) Remove the actuator by slightly À exing both sides and pulling towards you.

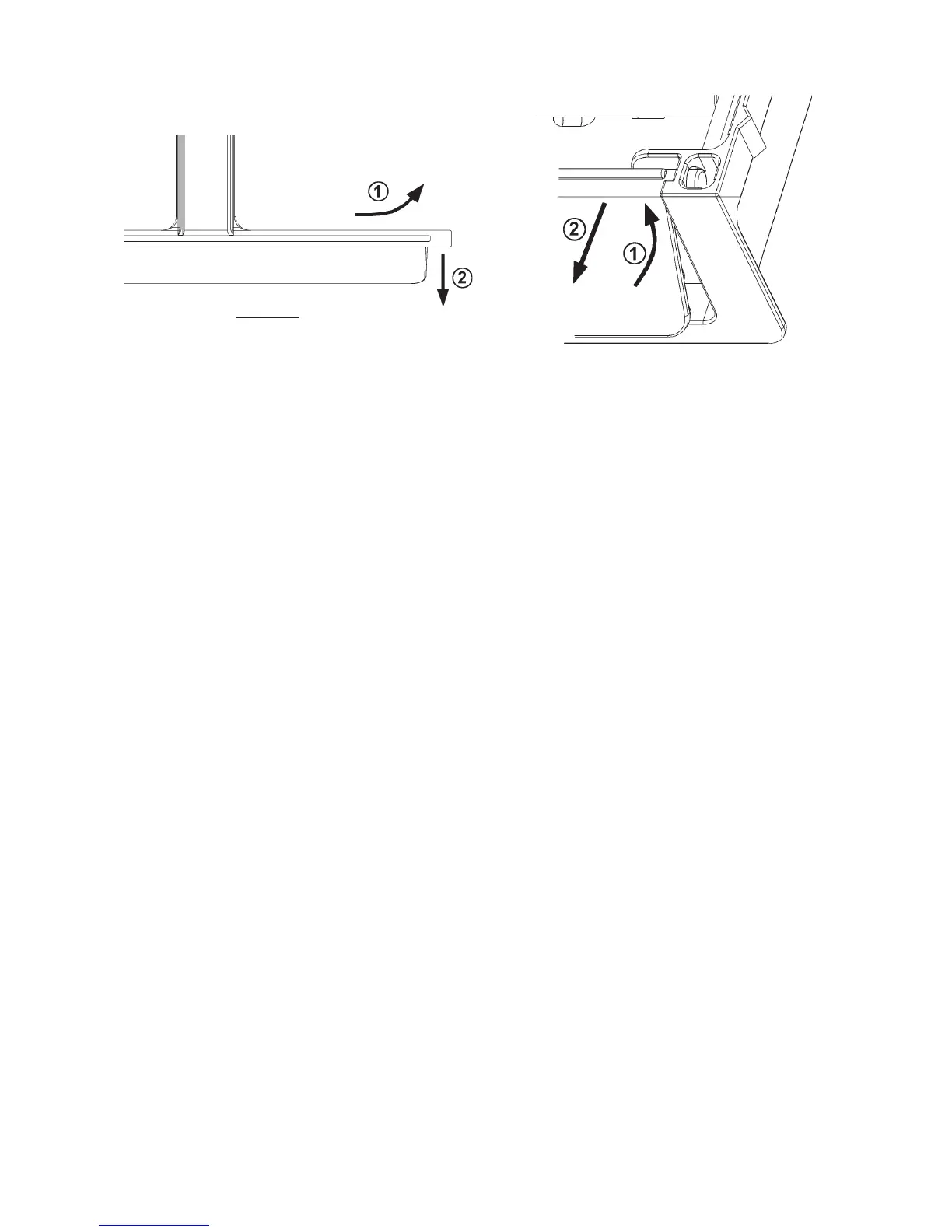

Fig. 5
Top View
Slightly À ex
Pull towards you
8) Wipe down MBC with a mixture of 1 part of Hoshizaki “Scale Away” and 25 parts of
warm water. Rinse the parts thoroughly with clean water.
9) Replace the removed parts in the reverse order of the removal procedure. Be sure
to put the lead wire back in the retainer on the bracket.
10) Plug in the appliance.
Legend:
MBC
–mechanical bin control
E. Float Switch Check and Cleaning
FS is used to determine that there is suf¿ cient water in the water tank after the 1-min.
¿ ll cycle and after each harvest cycle. FS is also used to determine that the appropriate
volume of water has been converted into ice before switching out of the freeze cycle. No
adjustment is required.
1. Float Switch Check
To check FS, follow the steps below.
1) Remove the air ¿ lter. Move the control switch to the “OFF” position, then unplug the
appliance.
2) Drain the water tank by pulling off the overÀ ow pipe from the water tank bottom and
the silicone hose from the storage bin bottom. See Fig. 6.
3) Remove the top panel and the rear panel.
4) Disconnect FS lead connector and remove the lead wire from the grommet opening.
See Fig. 7.
To Next Page
