Removal and Replacement Procedures
Maintenance and Service Guide 5–15

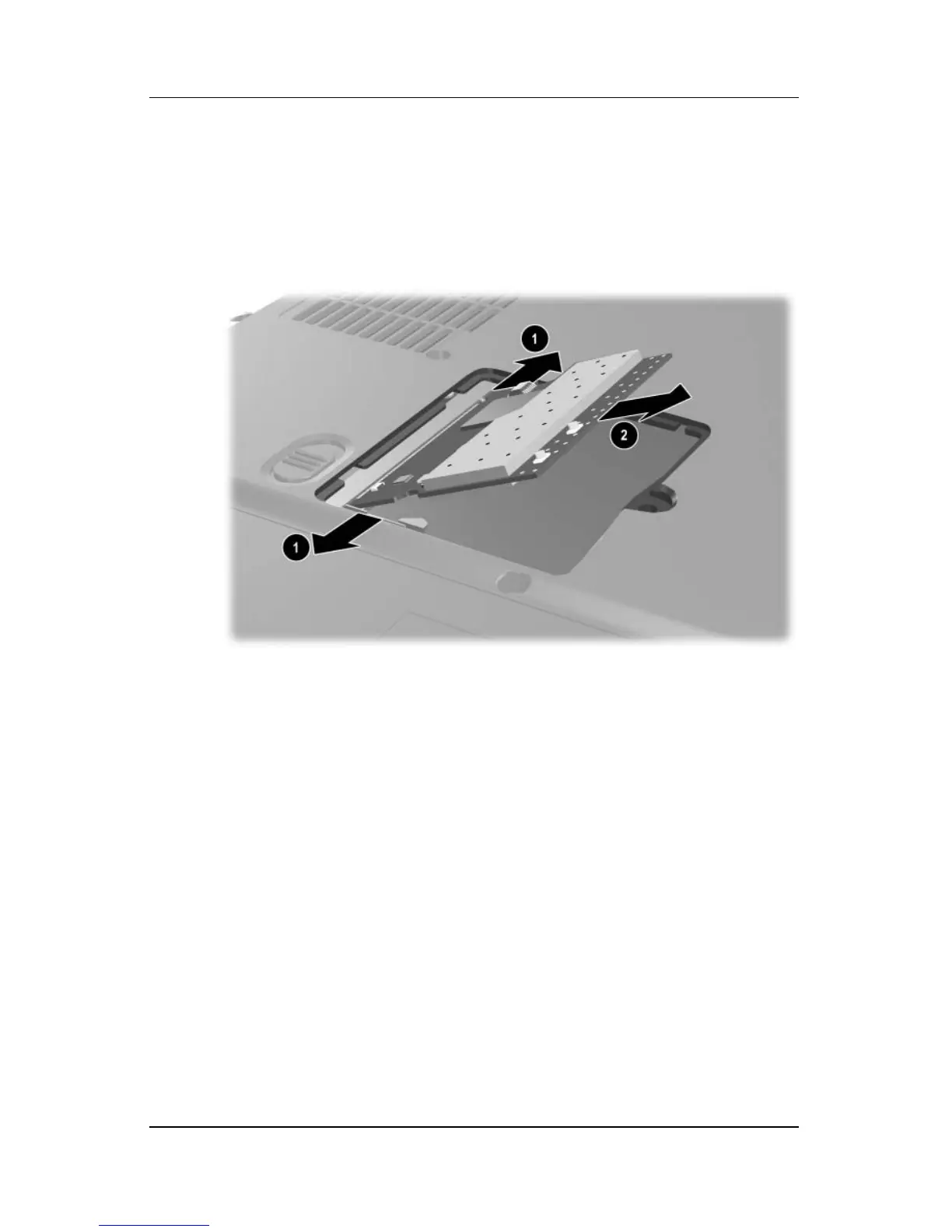

8. Spread the retaining tabs 1 that secure the Mini PCI
communications board to the socket. The board rises up.
9. Pull the board away from the socket at a 45-degree angle 2.
Removing the Mini PCI Communications Board
Reverse the above procedure to install a Mini PCI
communications board.
