5.16 Heat Sink
1. Prepare the notebook for disassembly (refer to Section 5.3)
and remove the following components:
❏ Keyboard (refer to Section 5.9)
❏ Switch cover (refer to Section 5.12)
❏ Keyboard plate (refer to Section 5.13)
❏ Fan assembly (refer to Section 5.15)
2. Remove the four T8M2.5×5.0 screws that secure the heat
sink bracket to the system board.

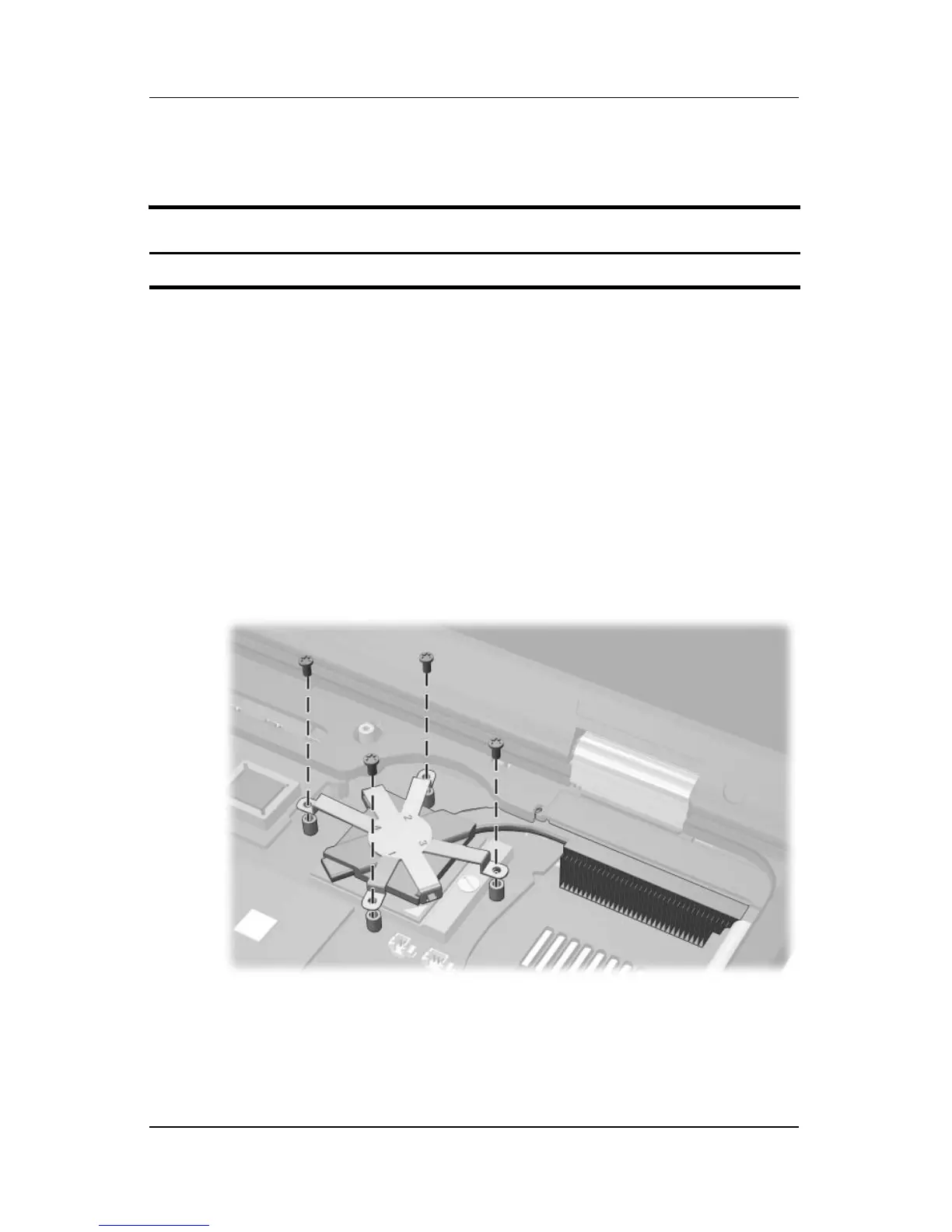

Removing the Heat Sink
Spare Part Number Information
Heat sink 344410-001
