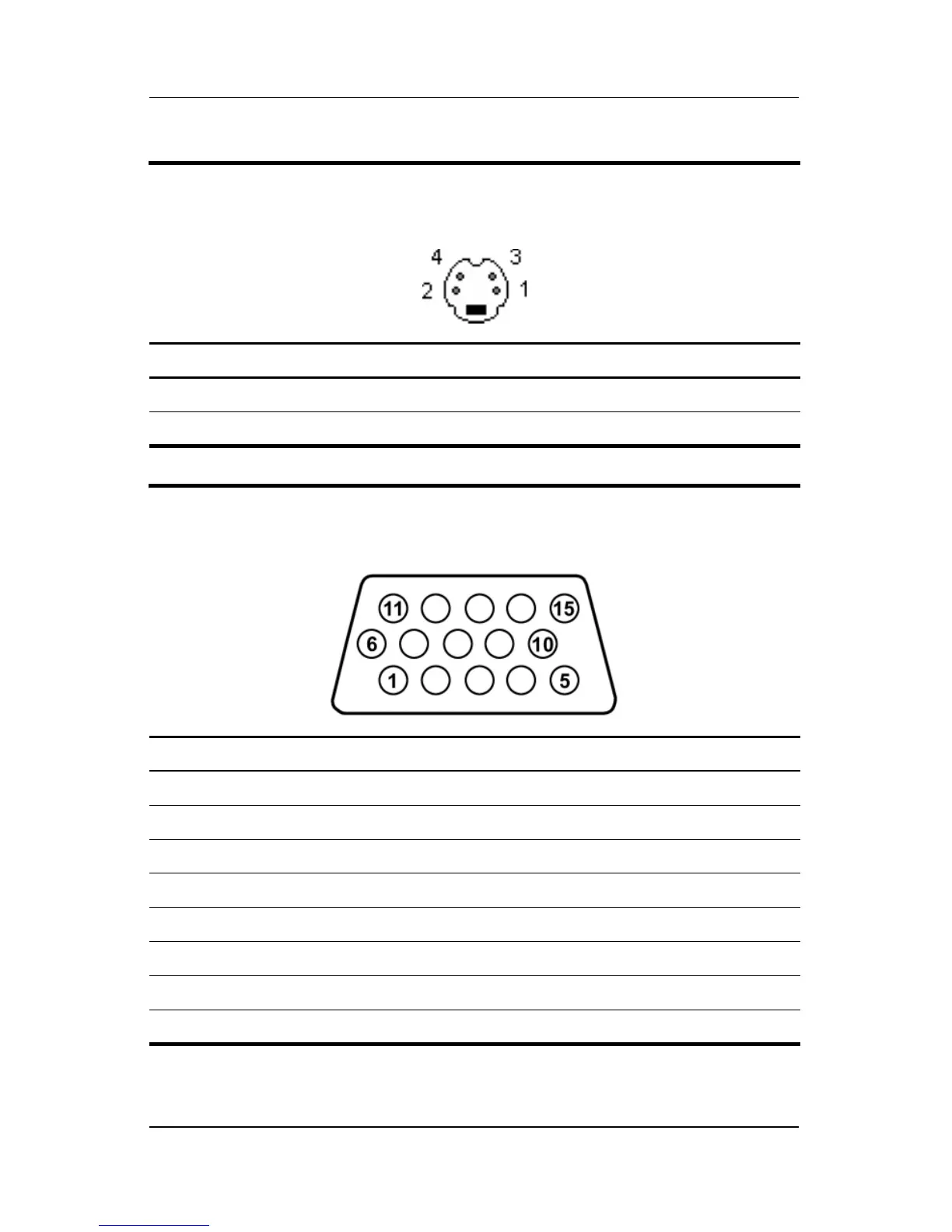

Connector Pin Assignments
Maintenance and Service Guide A–3
Table A-4
S-Video
Pin Signal Pin Signal
1 Ground (Y) 3 Y-Luminance (Intensity)
2 Ground (C) 4 C-Chrominance (Color)
Table A-5
External Monitor
Pin Signal Pin Signal
1 Red analog 9 +5 VDC
2 Green analog 10 Ground
3 Blue analog 11 Monitor detect
4 Not connected 12 DDC 2B data
5 Ground 13 Horizontal sync
6 Ground analog 14 Vertical sync
7 Ground analog 15 DDC 2B clock
8 Ground analog

HP Compaq nc6000 - Notebook PC Specifications

General

Processor	Intel Pentium M
Chipset	Intel 855PM
Storage	30 GB to 60 GB HDD
Hard Drive Interface	ATA-100
Battery	6-cell Lithium-Ion
Operating System	Windows XP Professional
RAM	256 MB, upgradable to 2 GB
Graphics	ATI Mobility Radeon 9600
Display	14.1-inch
Display Resolution	1024 x 768 or 1400 x 1050
Optical Drive	DVD-ROM, CD-RW/DVD Combo, or DVD±RW
Networking	10/100/1000 Ethernet
Ports	2 x USB 2.0, VGA, parallel, serial, headphone, microphone
