Removal and Replacement Procedures
Maintenance and Service Guide 5–41

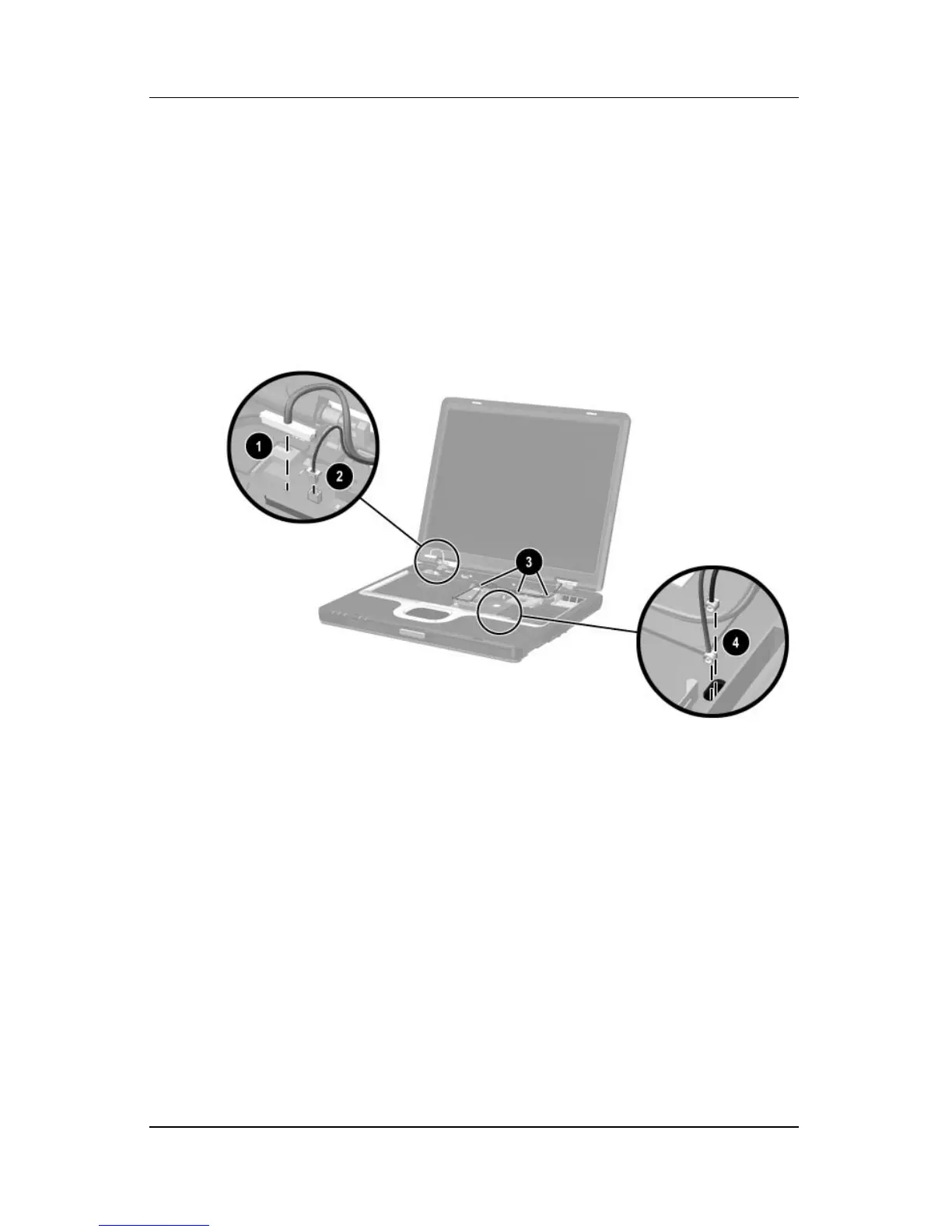

4. Disconnect the display cable 1 and microphone cable 2
from the system board.
5. Remove the left and right wireless antenna cables 3 from
the three clips in the top cover.
6. Remove the left and right wireless antenna cables from the
hole 4 in the system board.
Disconnecting the Display Cables
