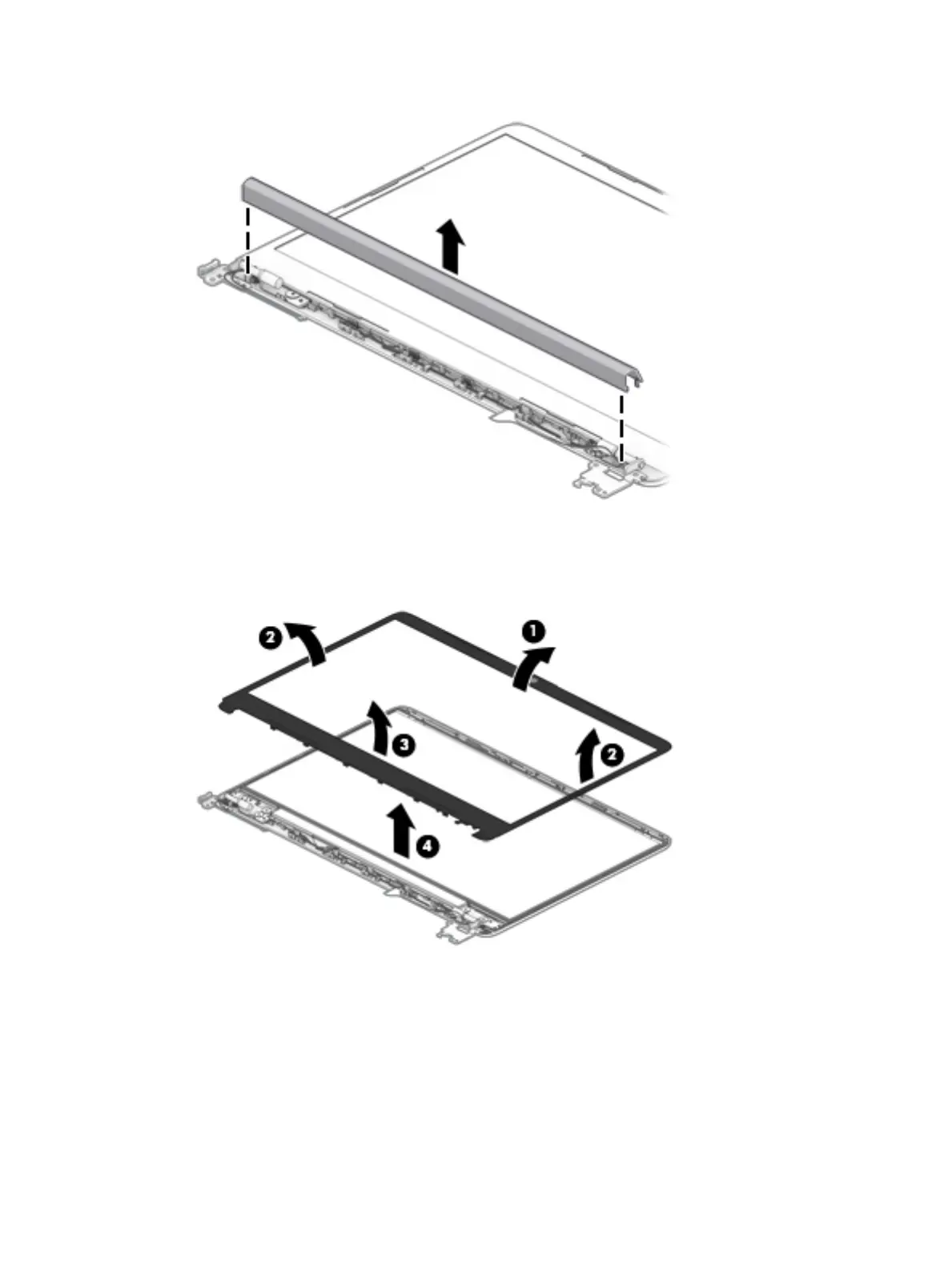

2. Flex the inside of the top edge (1), left and right sides (2), and the inside of the bottom edge (3) of the
display bezel until the bezel disengages from the display enclosure.
3. Remove the display bezel (4).
4. To remove the webcam/microphone module:
a. Position the display assembly with the top edge toward you.
b. Lift the webcam module to disengage the adhesive that secures the module to the display (1).
Component replacement procedures 59
