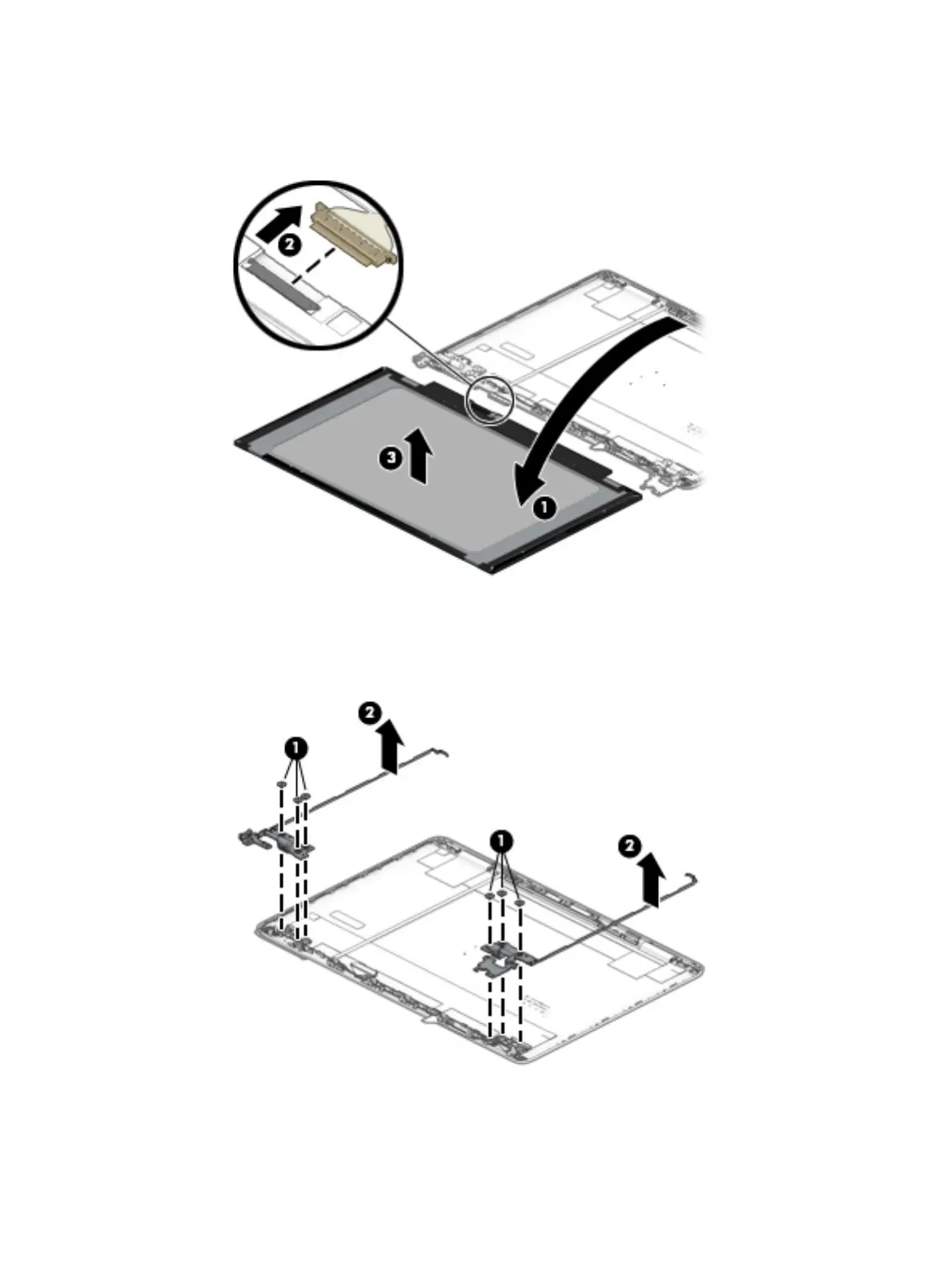

c. On the back of the display panel, release the adhesive strip that secures the display panel cable to
the display panel, and then disconnect the cable (2).
d. Lift the display panel (3) to remove it.
6. To remove the display hinges:
a. Remove the three Phillips M2.5 × 2.5 screw (1) from the bottom of each hinge.
b. Remove the display hinges from the enclosure (2).
Component replacement procedures 61
