HP 141A - Cabinet Parts, Exploded View

Model 141A
Section VI
Figure 6-1
Part
1. Frame Assembly
2. Front Panel
3. Side Handle Assembly
4. Handle Retainer
5. Foot Assembly
6. Tilt Stand
7. Plastic Trim
8. Rack Mount Kit
9. Side Cover
10. Top Cover Assembly
11. Bottom Cover Assembly
12. Rear Panel
13. Top Panel Support
14. Bottom Panel Support
Part Number
5060-0736
00140-00204
5060-0763
5060-0765
5060-0767
1490-0030
6980-0004
5060-0777
5000-0747
5060-0740
00140-04402
00 140-00 202
00140-24701
00 140 - 24702
Quantity
Figure

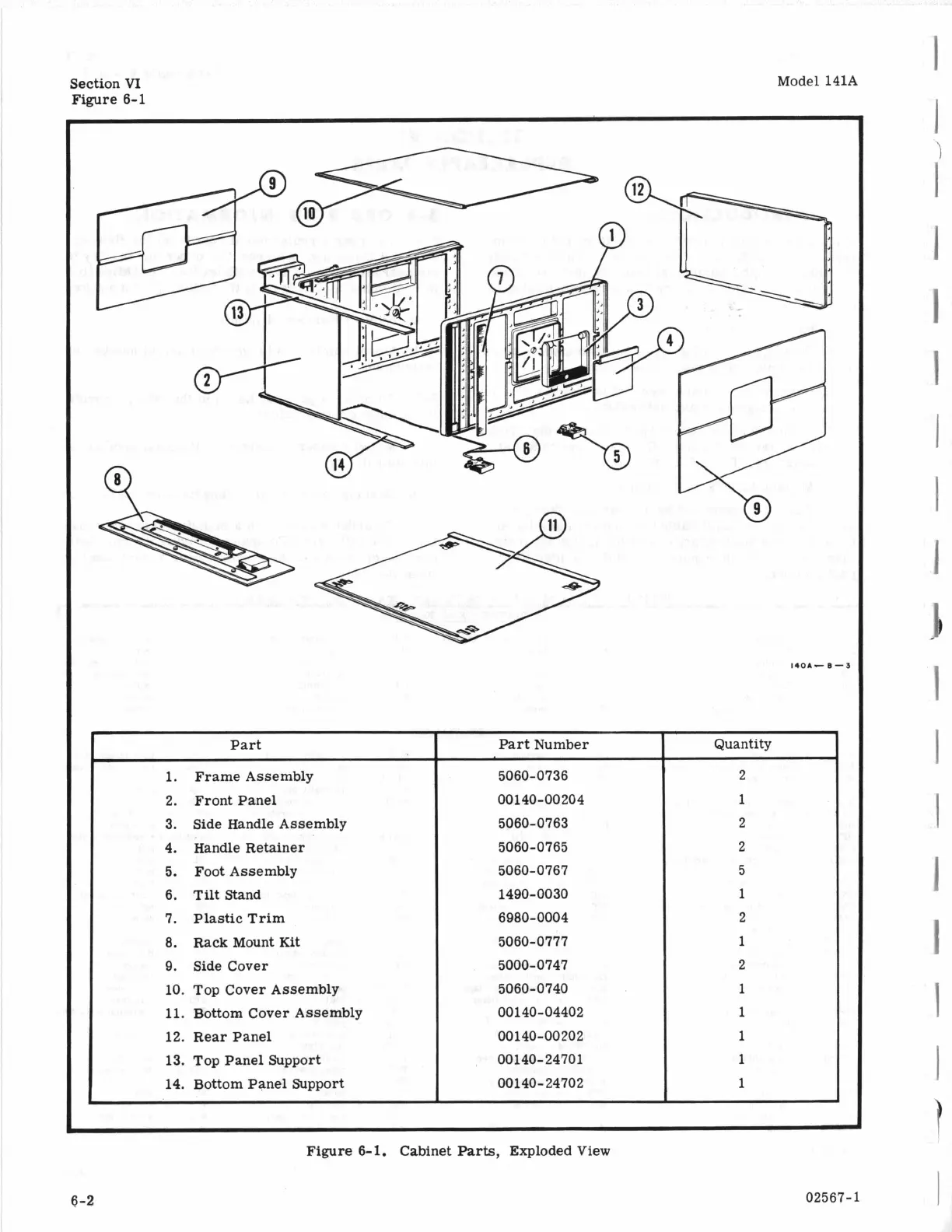

6-1. Cabinet Parts, Exploded View
