Installing the Switch

Installation Procedure

1. Use a #1 Phillips (cross-head) screwdriver and attach the mounting

brackets to the switch with the included 8-mm M4 screws.

Note The mounting brackets have multiple mounting holes and can be rotated

allowing for a wide variety of mounting options. These include mounting the

switch so its front face is flush with the face of the rack, or mounting it in a

more balanced position as shown in the illustration.

2. Hold the switch with attached brackets in the rack and move it vertically

until rack holes line up with the bracket holes, then insert and tighten the

four 12-24 screws holding the brackets to the rack.

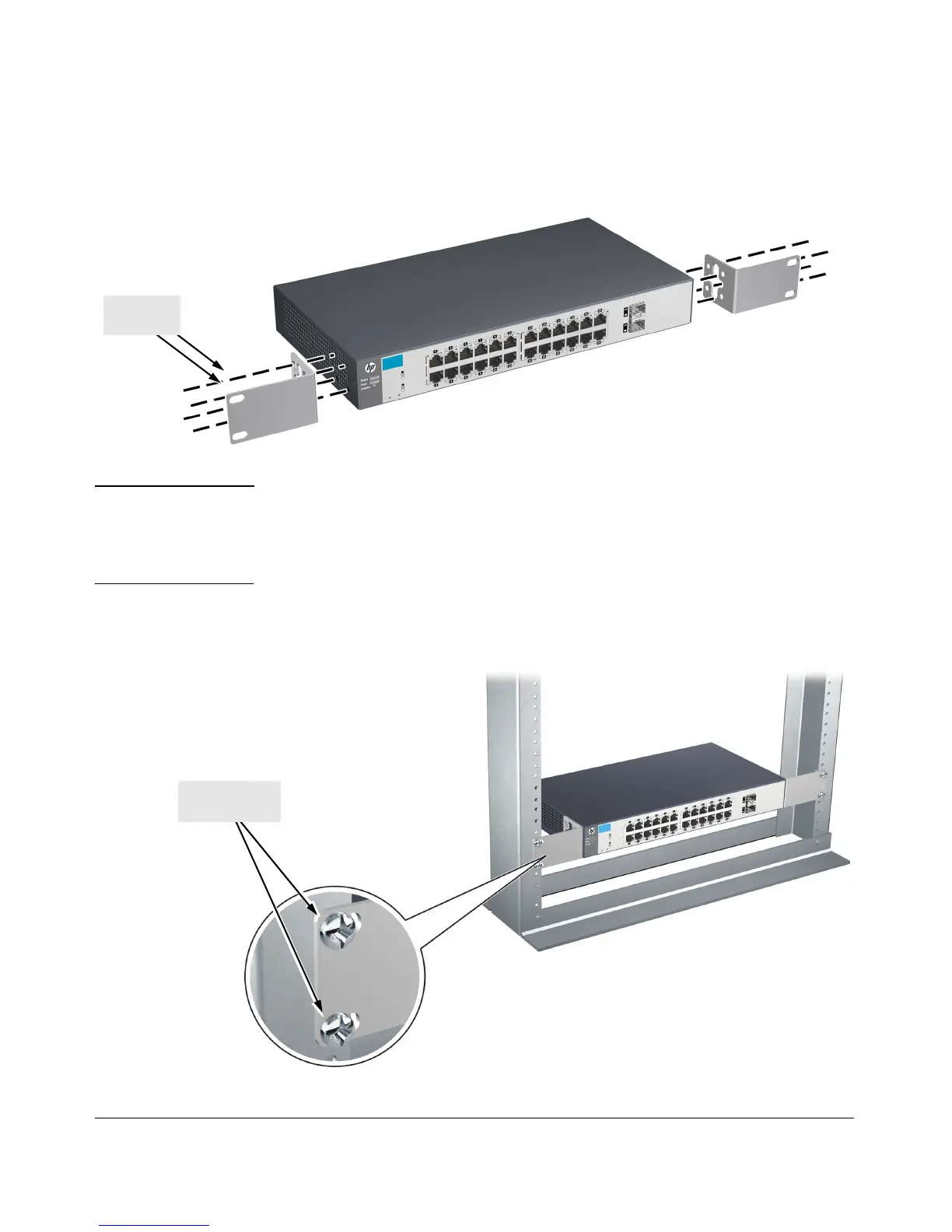

8 mm

M4 screws

Install 12-24

screws
