HP 1810-8G User Manual

User-defined fields
User-defined fields can contain 1–31 characters, including hyphens, commas, and spaces.
Web Applet
The Web Applets, shown in Figure 3, display at the top of the page as a graphic representation
of the switch to provide information regarding the status parameters of individual ports. The Web
Applet enables easy system configuration and Web-based navigation.

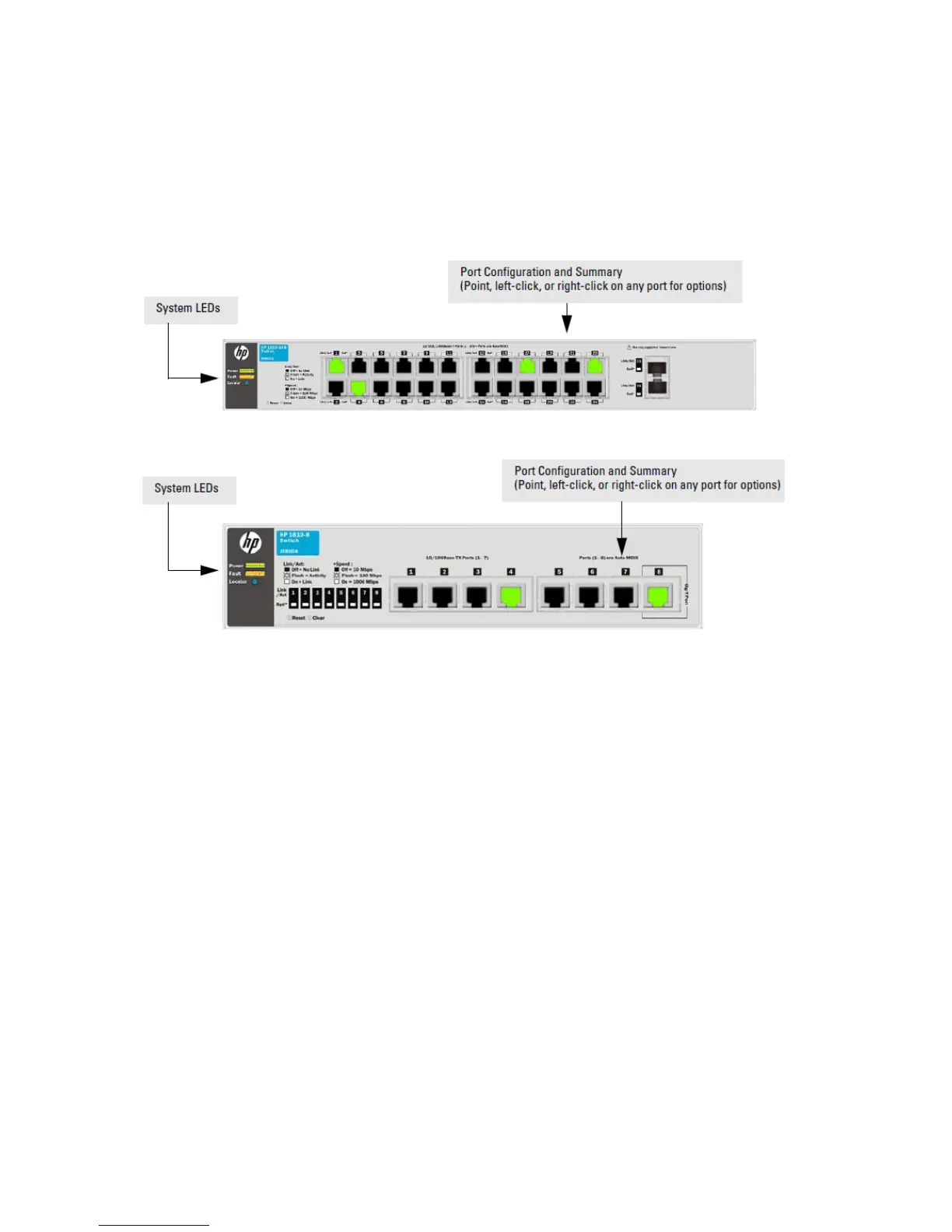

Figure 3 Web Applet
Port Configuration and Summary—You can point to any port to display the following information
about the port:
• Auto Negotiation Status
• Speed
Left-click a port to display its Port Configuration page, or right-click and select from the menu to
display its Port Configuration Page or the Port Summary page for all ports.
10 Getting Started

HP 1810-8G Specifications

General

Switching Capacity	16 Gbps
Throughput	11.9 Mpps
MAC Address Table Size	8000 entries
Jumbo Frame Support	Yes
PoE	No
Weight	2.2 lb (1 kg)
Ports	8 x 10/100/1000
Form Factor	Desktop, Rack-mountable
Management	Web-based
Power Supply	External
Operating Temperature	0°C to 40°C
Operating Humidity	15% to 95% non-condensing
