HP 1810-8G User Manual

Getting started with the web interface
This section describes the following Web pages:
• Logging on
• Interface layout and features
Logging on
Follow these steps to log on through Web interface:
1. Open a Web browser and enter the IP address of the switch in the Web browser address
field.
2. On the Login page, enter the password (if one has been set), and then click Login.
By default, there is no password. After the initial log on, the administrator may configure a
password.
NOTE: To set passwords, see “Password Manager” (page 64).

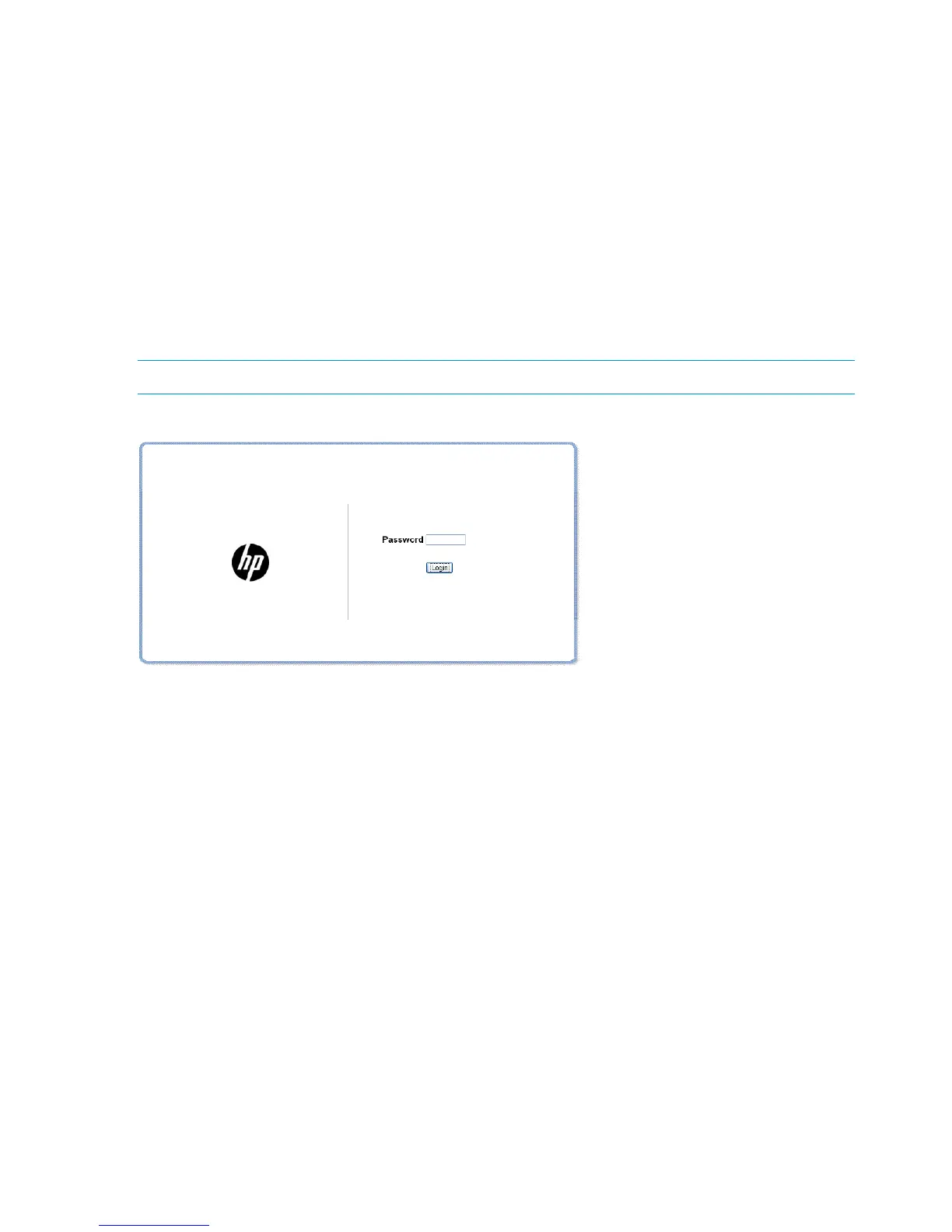

Figure 1 Login Page
Interface layout and features
Figure 2 shows the initial view.
8 Getting Started

HP 1810-8G Specifications

General

Switching Capacity	16 Gbps
Throughput	11.9 Mpps
MAC Address Table Size	8000 entries
Jumbo Frame Support	Yes
PoE	No
Weight	2.2 lb (1 kg)
Ports	8 x 10/100/1000
Form Factor	Desktop, Rack-mountable
Management	Web-based
Power Supply	External
Operating Temperature	0°C to 40°C
Operating Humidity	15% to 95% non-condensing
