HP 1810-8G User Manual

6. Click OK.
The following page displays:
7. Click OK.

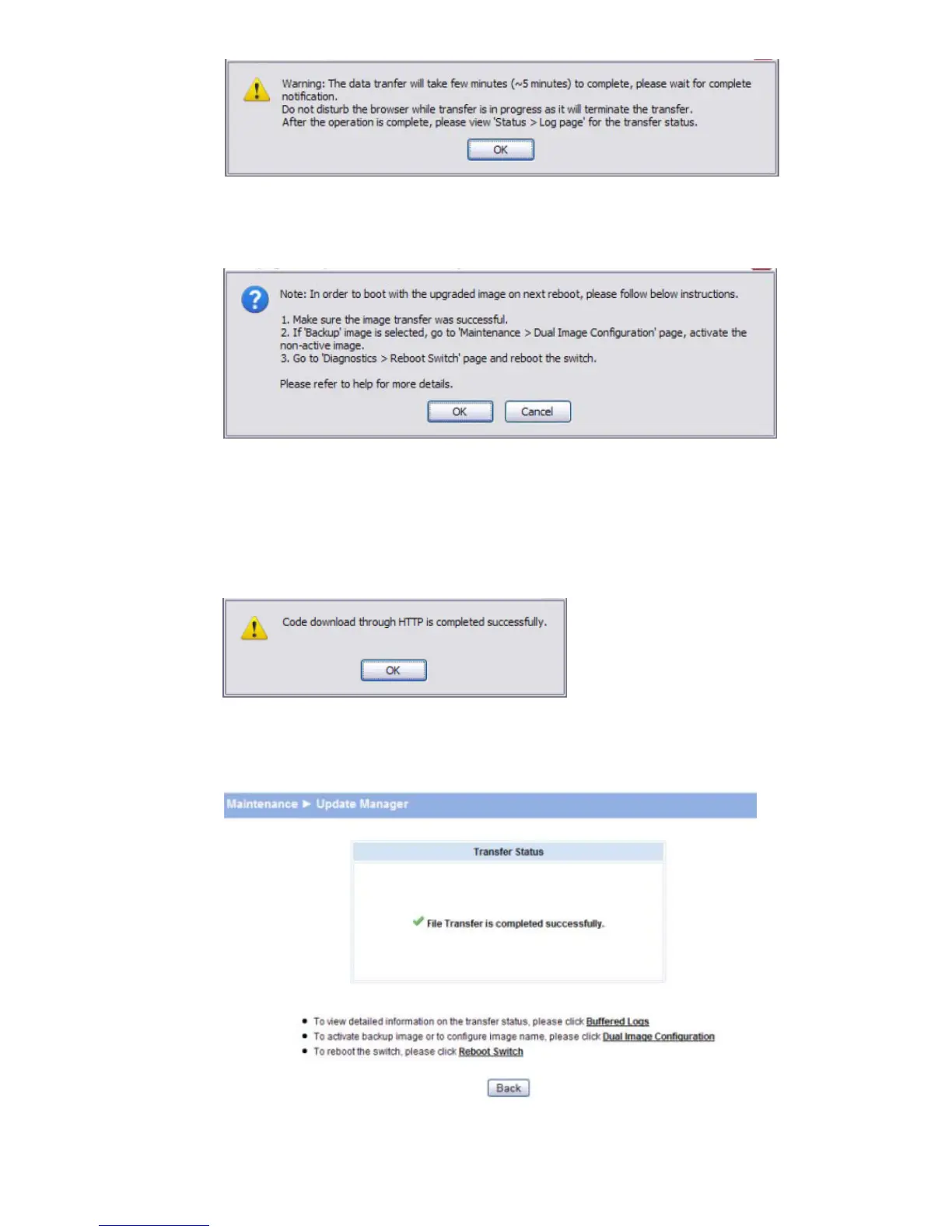

The following message displays on the Update Manager page:
Code (Configuration) download through HTTP (TFTP) is in Progress.
Please wait...
When the transfer is complete, a window like the following displays:
8. Click OK.
Update Manager displays the following status message:
Update Manager 63

HP 1810-8G Specifications

General

Switching Capacity	16 Gbps
Throughput	11.9 Mpps
MAC Address Table Size	8000 entries
Jumbo Frame Support	Yes
PoE	No
Weight	2.2 lb (1 kg)
Ports	8 x 10/100/1000
Form Factor	Desktop, Rack-mountable
Management	Web-based
Power Supply	External
Operating Temperature	0°C to 40°C
Operating Humidity	15% to 95% non-condensing
