HP 3325B User Manual

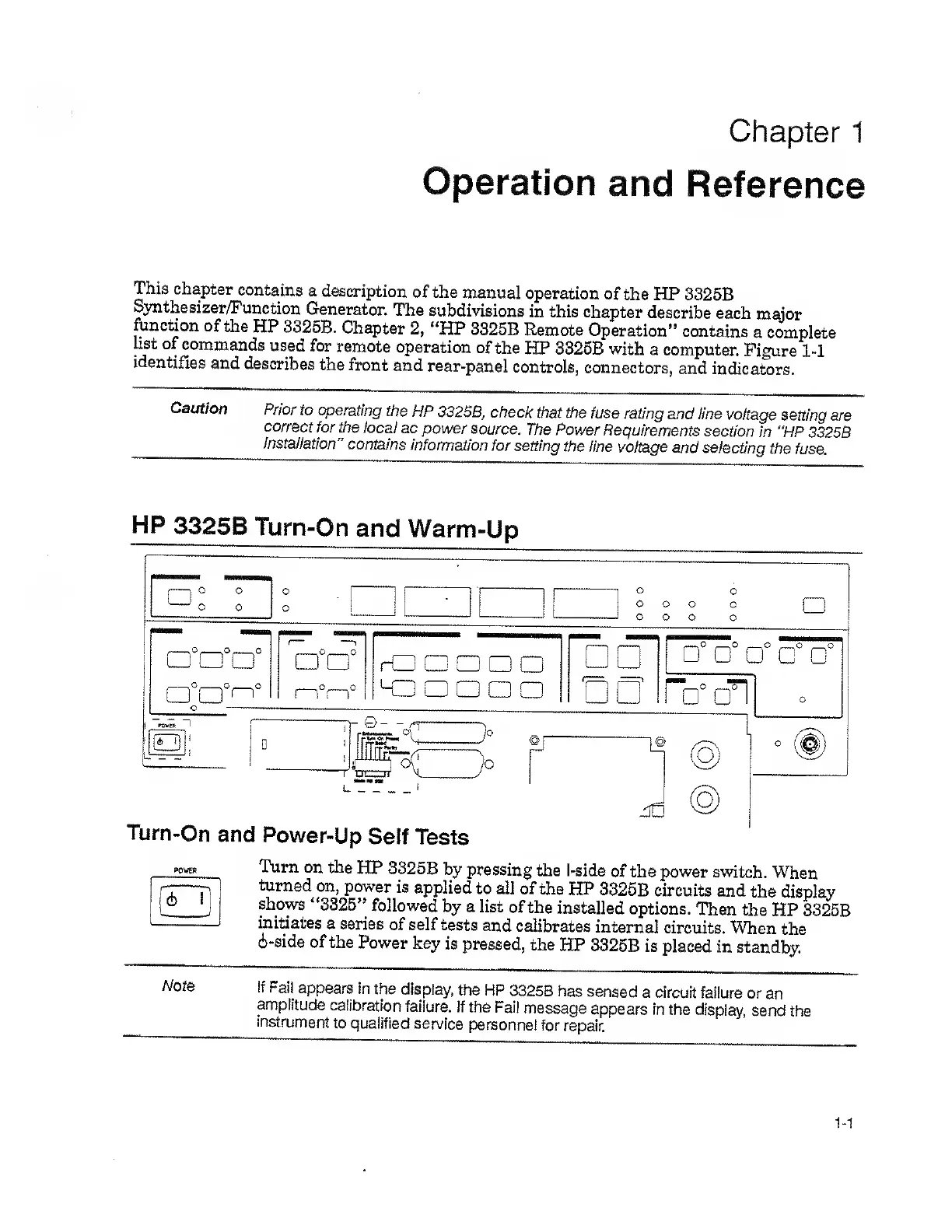

Chapter 1
Operation and Reference
This chapter contains a description of the manual operation of the HP 3326B
Synthesizer/Punction Generator. The subdivisions in this chapter describe each major
function of the HP 3325B. Chapter 2, “HP 3325B Remote Operation” contains a complete
list of commands used for remote operation of the HP 3325B with a computer. Figure 1-1
identifies and describes the front and rear-panel controls, connectors, and indicators.
Caution Prior to operating the HP 3325B, check that the fuse rating and line voltage setting are
correct for the local ac power source. The Power Requirements section in “HP 3325B
_ Installation'' contains information for setting the line voltage and selecting the fuse.
HP 3325B Turn-On and Warm-Up
o o
O 0
o o
o o o o
o o o o
mmmm
r~ —I
C] □ a □
HHi ■■■■■
□
□ “ 0°
O --
□ o
o
(* n
n-0-
X''
)o
I .
r"rn-J
j®
N
_ jo
. I I
_
Turn-On and Power-Up Self Tests
Turn on the HP 3325B by pressing the l-side of the power switch. When
- j-, turned on, power is applied to all of the HP 3325B circuits and the display
I _ j “3325” followed by a list of the installed options. Then the HP 3325B
- initiates a series of self tests and calibrates internal circuits. When the
6-side of the Power key is pressed, the HP 3325B is placed in standby.
If Fail appears in the display, the HP 3325B has sensed a circuit failure or an
amplitude calibration failure. If the Fail message appears in the display, send the
instrument to qualified service personnel for repair.
1-1
