HP 3325B User Manual

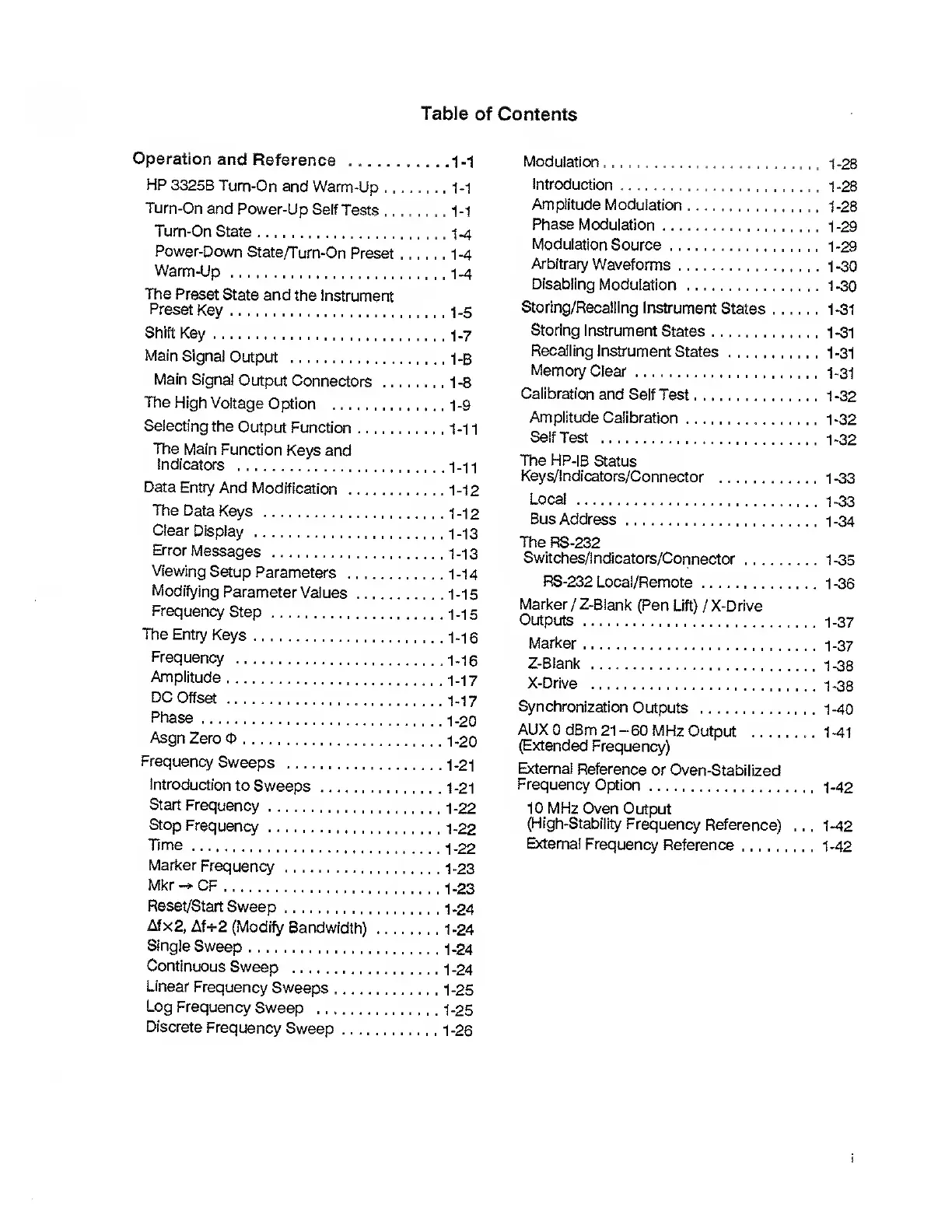

Table of Contents
Operation and Reference .1-1
HP 3325B Turn-On and Warm-Up..1-1
Turn-On and Power-Up Seif Tests ........ 1-1
Turn-On State.1-4
Power-Down State/Turn-On Preset.1-4
Warm-Up .1-4
The Preset State and the Instrument
Preset Key.1-5
Shift Key.1-7
Main Signal Output . 1 -8
Main Signal Output Connectors ..1-8
The High Voltage Option .1-9
Selecting the Output Function..1-11
The Main Function Keys and
Indicators .1-11
Data Entry And Modification .1-12
The Data Keys.1-12
Clear Display .1-13
Error Messages.1-13
Viewing Setup Parameters ..... _ ... 1-14
Modifying Parameter Values.1-15
Frequency Step.1-15
The Entry Keys.1-16
Frequency .1-16
Amplitude.1-17
DC Offset... .... 1-17
Phase.1-20
AsgnZero0.1-20
Frequency Sweeps .1-21
Introduction to Sweeps___ . 1 -21
Start Frequency.1-22
Stop Frequency.1-22
Time.1-22
Marker Frequency.1-23
Mkr CF.1-23
Reset/Start Sweep.1-24
Afx2, Af-i-2 (Modify Bandwidth).1-24
Single Sweep.1-24
Continuous Sweep ....1-24
Linear Frequency Sweeps.1-25
Log Frequency Sweep .1-25
Discrete Frequency Sweep.1-26
Modulation.1-28
Introduction.1-28
Amplitude Modulation.1-28
Phase Modulation.1-29
Modulation Source.1-29
Arbitrary Waveforms ...1-30
Disabling Modulation .1-30
Storing/Recalling Instrument States.1-31
Storing Instrument States.1-31
Recalling Instrument States.1-31
Memory Clear.1-31
Calibration and Self Test.1-32
Amplitude Calibration.1-32
Self Test . i~32
The HP-IB Status
Keys/Indicators/Connector .1-33
Local . 1 -33
Bus Address.1-34
TTie RS-232
Switches/Indicators/Connector.1-35
RS-232 Locai/Remote ..1-36
Marker/Z-B!ank (Pen Lift) / X-Drive
Outputs.1-37
Marker.1-37
Z-Blank .1-38
X-Drive .. i - 38
Synchronization Outputs .1-40
AUXO dBm 21-60 MHz Output .1-41
(Extended Frequency)
External Reference or Oven-Stabilized
Frequency Option.1-42
10 MHz Oven Output
(High-Stability Frequency Reference) ... 1-42
External Frequency Reference.1-42
