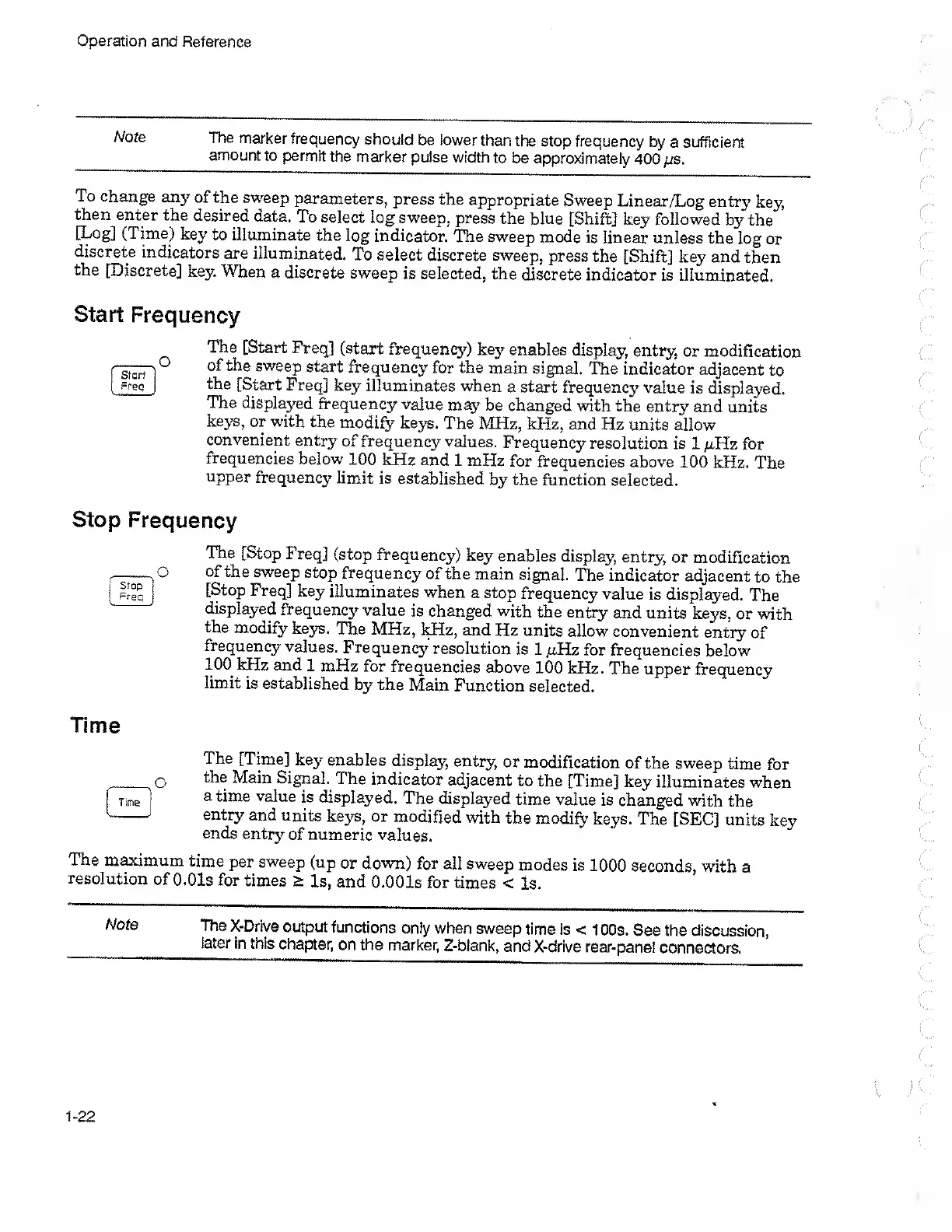

Operation
and
Reference
The
marker
frequency
should
be
lower
than
the
stop
frequency
by
a
sufficient
amount
to
permit
the
marker
pulse
width
to
be
approximately
400
{js.
To
change
any
of
the
sweep
parameters,
press
the
appropriate
Sweep
Linear/Log
entry
key,
then
enter
the
desired
data.
To
select
log
sweep,
press
the
blue
[Shift]
key
followed
by
the
[Log]
(Time)
key
to
illuminate
the
log
indicator.
The
sweep
mode
is
linear
unless
the
log
or
discrete
indicators
are
illuminated.
To
select
discrete
sweep,
press
the
[Shift]
key
and
then
the
[Discrete]
key.
When
a
discrete
sweep
is
selected,
the
discrete
indicator
is
illuminated.
Start
Frequency
The
[Start
Freq]
(start
frequency)
key
enables
display,
entry,
or
modification
O
X
A.-___
f*.
s'!
,
•
•
t
.
The
displayed
frequency
value
may
be
changed
with
the
entry
and
units
keys,
or
with
the
modify
keys.
The
MHz,
kHz,
and
Hz
units
allow
convenient
entry
of
frequency
values.
Frequency
resolution
is
1
jjHz
for
frequencies
below
100
kHz
and
1
mHz
for
frequencies
above
100
kHz.
The
upper
frequency
limit
is
established
by
the
function
selected.
Start
Freq
ui
uiB
Bwetjp
Biari
irequency
lor
me
mam
signal,
me
maicator
adjacent
to
the
[Start
Freq]
key
illuminates
when
a
start
frequency
value
is
displayed.
Stop
Frequency
The
[Stop
Freq]
(stop
frequency)
key
enables
display,
entry,
or
modification
^^
O
of
the
sweep
stop
frequency
of
the
main
signal.
The
indicator
adjacent
to
the
plaq
I
Ley
illuminates
when
a
stop
frequency
value
is
displayed.
The
displayed
frequency
value
is
changed
with
the
entry
and
units
keys,
or
with
the
modify
keys.
The
MHz,
fflz,
and
Hz
units
allow
convenient
entry
of
frequency
values.
Frequency
resolution
is
1
/xHz
for
frequencies
below
100
kHz
and
1
mHz
for
frequencies
above
100
kHz.
The
upper
frequency
limit
is
established
by
the
Main
Function
selected.
Time
The
[Time]
key
enables
display,
entry,
or
modification
of
the
sweep
time
for
_O
^Le
Main
Signal.
The
indicator
adjacent
to
the
[Time]
key
illuminates
when
Time
^
value
is
displayed.
The
displayed
time
value
is
changed
with
the
-'
entry
and
units
keys,
or
modified
with
the
modify
keys.
The
[SEC]
units
key
ends
entry
of
numeric
values.
The
maximum
time
per
sweep
(up
or
down)
for
all
sweep
modes
is
1000
seconds,
with
a
resolution
of
0,01s
for
times
s
Is,
and
0.001s
for
times
<
Is.
The
)<-Driye
output
functions
only
when
sweep
time
is
<
100s.
See
the
discussion,
later
In
this
chapter,
on
the
marker,
2-blank,
and
X-drive
rear-panel
connectors.
1-22
